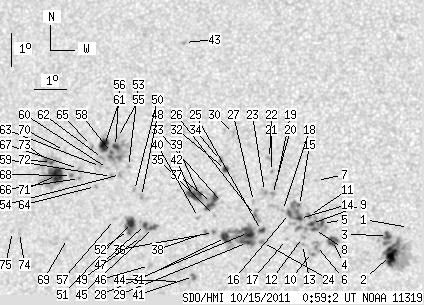

SDO HMI 2011-10-15 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.22 | 461.87 | 65.84 | 238.59 | 10.19 | 49.63 | -15.72 | 73.45 | 0.2789 | 97.9 | -33.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.76 | 55.56 | -9.79 | 67.77 | 0.1819 | -613.0 | -444.0 | |
| 12.67 | 76.46 | 6.39 | 38.53 | 8.91 | 55.03 | -10.32 | 73.07 | 0.1859 | -1306.7 | -625.3 | |
| 4.37 | -2.00 | 2.20 | -2.00 | 9.51 | 54.92 | -10.43 | 70.19 | 0.1907 | -886.4 | 999999 | |
| 7.69 | 8.21 | 3.90 | 4.17 | 9.32 | 53.22 | -12.13 | 73.42 | 0.2173 | -999.0 | -715.8 | |
| 2.27 | 51.91 | 1.15 | 26.44 | 9.83 | 52.90 | -12.45 | 71.62 | 0.2249 | -1083.9 | -693.0 | |
| 0.00 | 7.08 | 0.00 | 3.60 | 9.16 | 52.73 | -12.62 | 74.67 | 0.2246 | -1051.0 | -839.0 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 11.11 | 52.66 | -12.69 | 66.67 | 0.2359 | -825.0 | -569.4 | |
| 2.18 | -5.00 | 1.11 | -5.00 | 9.64 | 52.65 | -12.70 | 72.71 | 0.2280 | -1097.7 | 999999 | |
| 1.66 | -5.00 | 0.84 | -5.00 | 9.82 | 52.55 | -12.80 | 72.08 | 0.2304 | -1125.1 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.42 | 8.95 | 52.59 | -12.76 | 75.74 | 0.2262 | -507.0 | -733.0 | |
| 1.31 | 2.01 | 0.67 | 1.02 | 10.06 | 52.48 | -12.87 | 71.17 | 0.2327 | -950.7 | -803.4 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 9.39 | 52.29 | -13.06 | 74.15 | 0.2328 | -742.0 | -619.2 | |
| 0.00 | 3.50 | 0.00 | 1.78 | 9.18 | 52.30 | -13.05 | 75.02 | 0.2318 | -771.0 | -553.9 | |
| 2.27 | -5.00 | 1.16 | -5.00 | 9.96 | 52.17 | -13.18 | 71.94 | 0.2372 | -1098.8 | 999999 | |
| 0.79 | -5.00 | 0.40 | -5.00 | 10.35 | 52.16 | -13.19 | 70.39 | 0.2394 | -806.7 | 999999 | |
| 2.45 | -5.00 | 1.25 | -5.00 | 10.10 | 51.86 | -13.49 | 71.74 | 0.2430 | -959.4 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 9.32 | 51.79 | -13.56 | 74.94 | 0.2406 | -231.0 | -286.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 10.19 | 51.63 | -13.72 | 71.66 | 0.2470 | -649.0 | -495.1 | |
| 0.00 | 2.53 | 0.00 | 1.30 | 10.90 | 51.38 | -13.97 | 69.23 | 0.2546 | -836.0 | -617.6 | |
| 0.00 | 1.75 | 0.00 | 0.89 | 10.66 | 51.30 | -14.05 | 70.24 | 0.2547 | -1037.0 | -875.3 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 11.35 | 51.23 | -14.12 | 67.77 | 0.2595 | -920.0 | -675.3 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 11.74 | 51.15 | -14.20 | 66.48 | 0.2631 | -953.0 | -723.2 | |
| 0.00 | 2.97 | 0.00 | 1.52 | 10.74 | 51.04 | -14.31 | 70.22 | 0.2591 | -834.0 | -737.5 | |
| 0.00 | 2.80 | 0.00 | 1.43 | 9.21 | 51.05 | -14.30 | 76.02 | 0.2524 | 1132.0 | 882.8 | |
| 2.18 | 57.59 | 1.12 | 29.56 | 9.57 | 51.00 | -14.35 | 74.68 | 0.2545 | -928.0 | 104.8 | |
| 1.31 | 4.98 | 0.67 | 2.55 | 10.02 | 50.80 | -14.55 | 73.19 | 0.2597 | -974.6 | -783.3 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 10.43 | 50.71 | -14.64 | 71.72 | 0.2629 | -630.0 | -478.8 | |
| 6.82 | -25.00 | 3.50 | -25.00 | 9.50 | 50.60 | -14.75 | 75.29 | 0.2608 | -925.3 | 999999 | |
| 1.92 | -25.00 | 0.99 | -25.00 | 9.20 | 50.58 | -14.77 | 76.44 | 0.2600 | 1051.7 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.49 | 12.46 | 49.97 | -15.38 | 65.58 | 0.2857 | -804.0 | -618.2 | |
| 6.99 | -25.00 | 3.60 | -25.00 | 9.33 | 49.89 | -15.46 | 76.47 | 0.2718 | 894.9 | 999999 | |
| 3.06 | 3.50 | 1.58 | 1.80 | 11.37 | 49.78 | -15.57 | 69.43 | 0.2823 | 1028.3 | 906.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 10.38 | 49.74 | -15.61 | 72.87 | 0.2782 | 638.0 | 417.8 | |
| 0.35 | 2.36 | 0.18 | 1.22 | 11.64 | 49.61 | -15.74 | 68.73 | 0.2864 | 993.0 | 791.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 9.98 | 49.51 | -15.84 | 74.46 | 0.2803 | 760.0 | 552.2 | |
| 1.22 | 1.75 | 0.63 | 0.90 | 9.47 | 49.50 | -15.85 | 76.25 | 0.2786 | -1065.8 | -728.3 | |
| 8.30 | 35.83 | 4.29 | 18.53 | 10.37 | 49.39 | -15.96 | 73.22 | 0.2837 | 1016.0 | -130.7 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 9.47 | 49.28 | -16.07 | 76.43 | 0.2821 | -935.0 | -754.2 | |
| 2.36 | -37.00 | 1.22 | -37.00 | 10.60 | 49.00 | -16.35 | 72.78 | 0.2910 | -1288.6 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 9.91 | 49.01 | -16.34 | 75.11 | 0.2881 | -734.0 | -559.3 | |
| 2.36 | 2.88 | 1.22 | 1.49 | 8.14 | 48.93 | -16.42 | 81.27 | 0.2844 | -1005.2 | -933.7 | |
| 6.12 | -37.00 | 3.17 | -37.00 | 10.56 | 48.78 | -16.57 | 73.09 | 0.2943 | -984.7 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 15.16 | 48.21 | -17.14 | 59.89 | 0.3304 | 925.0 | 741.4 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 7.98 | 48.53 | -16.82 | 81.99 | 0.2907 | -631.0 | -437.8 | |
| 3.23 | 11.36 | 1.68 | 5.92 | 9.57 | 47.60 | -17.75 | 77.16 | 0.3098 | 1087.9 | 872.3 | |
| 0.00 | 3.06 | 0.00 | 1.59 | 8.43 | 47.53 | -17.82 | 80.86 | 0.3080 | 902.0 | 727.4 | |
| 2.01 | -45.00 | 1.05 | -45.00 | 9.65 | 47.34 | -18.01 | 77.05 | 0.3142 | 1132.8 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.37 | 10.48 | 47.16 | -18.19 | 74.58 | 0.3198 | 860.0 | 758.0 | |
| 0.00 | 2.71 | 0.00 | 1.41 | 9.28 | 47.23 | -18.12 | 78.25 | 0.3149 | 798.0 | 632.4 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 10.65 | 46.93 | -18.42 | 74.21 | 0.3242 | 843.0 | 736.8 | |
| 5.59 | 15.47 | 2.92 | 8.09 | 9.69 | 46.89 | -18.46 | 77.16 | 0.3216 | 1184.7 | 874.5 | |
| 1.31 | -51.00 | 0.69 | -51.00 | 9.45 | 46.80 | -18.54 | 77.95 | 0.3222 | 938.7 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 11.37 | 46.69 | -18.66 | 72.26 | 0.3308 | 1028.0 | 683.9 | |
| 0.00 | 3.23 | 0.00 | 1.70 | 11.12 | 46.45 | -18.90 | 73.17 | 0.3336 | 937.0 | 807.6 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 12.23 | 46.27 | -19.08 | 70.13 | 0.3412 | 331.0 | 367.9 | |
| 2.80 | 46.58 | 1.47 | 24.53 | 11.95 | 46.22 | -19.12 | 70.93 | 0.3406 | 1184.7 | 711.3 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 9.77 | 46.34 | -19.01 | 77.24 | 0.3306 | 561.0 | 456.6 | |
| 1.31 | -56.00 | 0.69 | -56.00 | 11.77 | 46.11 | -19.24 | 71.55 | 0.3416 | 1289.3 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.29 | 11.05 | 46.16 | -19.19 | 73.57 | 0.3378 | 804.0 | 649.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 11.29 | 46.01 | -19.34 | 73.00 | 0.3410 | 918.0 | 705.6 | |
| 8.91 | -56.00 | 4.70 | -56.00 | 11.97 | 45.87 | -19.48 | 71.16 | 0.3462 | 1080.5 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.71 | 11.58 | 45.83 | -19.52 | 72.29 | 0.3451 | 1045.0 | 853.7 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 11.34 | 45.78 | -19.57 | 73.01 | 0.3448 | 875.0 | 718.7 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 10.73 | 45.66 | -19.69 | 74.80 | 0.3445 | 987.0 | 772.8 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 11.96 | 45.45 | -19.90 | 71.52 | 0.3527 | 735.0 | 577.2 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 10.96 | 45.13 | -20.22 | 74.50 | 0.3537 | 880.0 | 749.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.25 | 45.08 | -20.27 | 73.71 | 0.3556 | 897.0 | 711.9 | |
| 1.49 | 1.75 | 0.79 | 0.93 | 11.04 | 44.87 | -20.48 | 74.44 | 0.3581 | 918.7 | 1056.7 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 9.15 | 44.86 | -20.49 | 79.70 | 0.3528 | 671.0 | 510.1 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 11.78 | 44.58 | -20.77 | 72.61 | 0.3653 | 808.0 | 641.3 | |
| 15.99 | 53.13 | 8.51 | 28.30 | 11.02 | 44.38 | -20.97 | 74.77 | 0.3657 | 1119.9 | 363.0 | |
| 1.57 | -71.00 | 0.84 | -71.00 | 11.40 | 44.18 | -21.16 | 73.86 | 0.3701 | 877.3 | 999999 | |
| 2.36 | -71.00 | 1.26 | -71.00 | 11.49 | 44.01 | -21.34 | 73.74 | 0.3730 | 702.9 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 9.27 | 43.29 | -22.06 | 79.92 | 0.3781 | 773.0 | 700.3 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 9.29 | 43.06 | -22.29 | 79.93 | 0.3818 | 583.0 | 487.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
