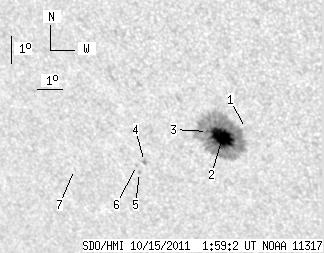

SDO HMI 2011-10-15 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.22 | 166.13 | 17.45 | 110.76 | -26.64 | 37.41 | -27.39 | 142.07 | 0.6713 | 1041.1 | 371.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.63 | -26.27 | 38.52 | -26.28 | 142.80 | 0.6589 | 129.0 | 126.2 | |
| 24.47 | 159.23 | 16.28 | 105.96 | -26.60 | 37.58 | -27.22 | 142.20 | 0.6696 | 1223.2 | 364.7 | |
| 1.75 | -2.00 | 1.17 | -2.00 | -26.45 | 37.05 | -27.75 | 141.53 | 0.6724 | 803.9 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.89 | -27.66 | 34.28 | -30.52 | 140.22 | 0.7054 | 741.0 | 645.1 | |
| 0.00 | 1.40 | 0.00 | 0.98 | -28.07 | 33.95 | -30.85 | 140.36 | 0.7115 | 586.0 | 518.6 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -27.83 | 33.91 | -30.89 | 140.07 | 0.7097 | 664.0 | 588.5 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -28.12 | 31.33 | -33.47 | 138.23 | 0.7325 | 400.0 | 347.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
