SDO HMI 2011-10-15 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.30 | 720.82 | 61.66 | 385.80 | 27.10 | 57.26 | -6.44 | 13.08 | 0.3784 | -1032.2 | -444.1 | |
|
previous
or next observation for the same group /

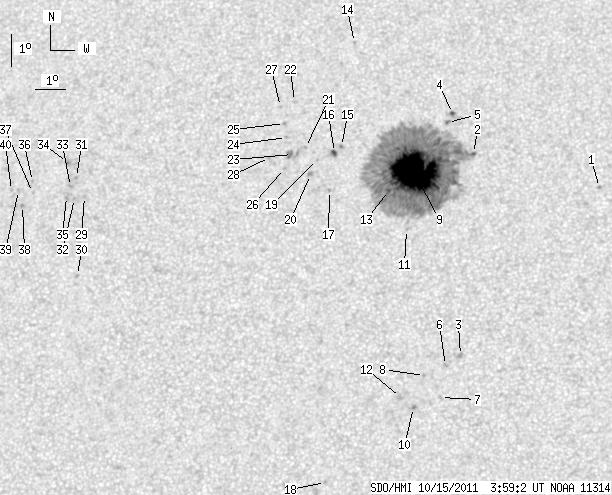

back to the solar disc SDO HMI 2011-10-15 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.79 | 26.75 | 63.86 | 0.15 | 359.61 | 0.3575 | -801.0 | -596.5 | |
| 1.22 | 659.68 | 0.66 | 352.85 | 27.83 | 59.60 | -4.11 | 9.62 | 0.3807 | 504.9 | -468.6 | |
| 0.00 | 2.19 | 0.00 | 1.13 | 21.44 | 59.38 | -4.32 | 14.65 | 0.2785 | -936.0 | -737.6 | |
| 1.49 | 2.62 | 0.80 | 1.42 | 29.12 | 58.82 | -4.88 | 10.66 | 0.4033 | 860.3 | 752.2 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 28.83 | 58.67 | -5.04 | 11.16 | 0.3991 | 1065.0 | 849.1 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 21.13 | 58.91 | -4.79 | 16.50 | 0.2756 | -1048.0 | -753.5 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 20.14 | 58.78 | -4.92 | 18.10 | 0.2604 | -815.0 | -538.0 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 20.82 | 58.25 | -5.46 | 19.02 | 0.2740 | -779.0 | -556.8 | |
| 108.13 | -2.00 | 57.80 | -2.00 | 27.20 | 57.63 | -6.07 | 14.50 | 0.3774 | -1583.5 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.12 | 19.82 | 57.93 | -5.77 | 21.42 | 0.2602 | -1168.0 | -909.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 25.38 | 57.46 | -6.25 | 16.40 | 0.3497 | 471.0 | 266.4 | |
| 0.00 | 2.80 | 0.00 | 1.44 | 20.13 | 57.50 | -6.20 | 22.37 | 0.2676 | -956.0 | -662.9 | |
| 1.66 | -2.00 | 0.89 | -2.00 | 26.62 | 56.78 | -6.92 | 16.90 | 0.3720 | -926.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 31.41 | 55.25 | -8.45 | 16.20 | 0.4514 | -836.0 | -657.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 28.01 | 55.09 | -8.61 | 19.31 | 0.4016 | -986.0 | -853.9 | |
| 2.80 | 3.15 | 1.51 | 1.70 | 27.81 | 54.87 | -8.84 | 19.95 | 0.3999 | -935.8 | -882.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 26.59 | 54.79 | -8.91 | 21.34 | 0.3822 | -909.0 | -674.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 17.49 | 55.23 | -8.47 | 34.82 | 0.2472 | -846.0 | -678.9 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 27.58 | 54.30 | -9.40 | 21.33 | 0.3996 | -887.0 | -707.0 | |
| 0.00 | 2.71 | 0.00 | 1.46 | 27.09 | 54.11 | -9.59 | 22.25 | 0.3936 | -1125.0 | -891.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 27.96 | 53.86 | -9.84 | 21.83 | 0.4077 | -782.0 | -608.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 29.44 | 53.33 | -10.37 | 21.36 | 0.4323 | -731.0 | -484.6 | |
| 0.00 | 7.52 | 0.00 | 4.07 | 27.72 | 53.43 | -10.27 | 22.92 | 0.4069 | -906.0 | -799.0 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 28.27 | 53.18 | -10.53 | 22.84 | 0.4164 | -933.0 | -701.2 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 28.72 | 53.06 | -10.64 | 22.58 | 0.4235 | -759.0 | -637.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 27.27 | 53.20 | -10.50 | 23.87 | 0.4019 | -684.0 | -526.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 29.27 | 52.86 | -10.84 | 22.39 | 0.4326 | -699.0 | -542.0 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 27.61 | 52.66 | -11.05 | 24.55 | 0.4104 | -751.0 | -630.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 26.21 | 46.43 | -17.27 | 37.17 | 0.4427 | 788.0 | 588.7 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 23.71 | 46.55 | -17.15 | 41.04 | 0.4129 | 739.0 | 531.6 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 26.81 | 46.06 | -17.64 | 36.83 | 0.4532 | 799.0 | 618.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 26.14 | 46.09 | -17.61 | 37.78 | 0.4451 | 811.0 | 715.5 | |
| 0.00 | 1.75 | 0.00 | 0.97 | 26.52 | 45.89 | -17.81 | 37.51 | 0.4513 | 952.0 | 650.3 | |
| 0.00 | 2.19 | 0.00 | 1.22 | 27.28 | 45.66 | -18.04 | 36.71 | 0.4623 | 866.0 | 739.0 | |
| 0.00 | 2.53 | 0.00 | 1.40 | 26.19 | 45.81 | -17.90 | 38.13 | 0.4485 | 836.0 | 695.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 26.64 | 44.53 | -19.17 | 39.25 | 0.4658 | 851.0 | 715.5 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 26.29 | 44.60 | -19.11 | 39.71 | 0.4613 | 709.0 | 570.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 25.86 | 44.32 | -19.39 | 40.75 | 0.4595 | 1007.0 | 883.7 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 26.33 | 44.09 | -19.61 | 40.32 | 0.4668 | 714.0 | 616.0 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 26.33 | 43.85 | -19.86 | 40.66 | 0.4692 | 703.0 | 522.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
