SDO HMI 2011-10-15 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.52 | 36.80 | 4.73 | 23.10 | 19.75 | 99.47 | 36.31 | 294.88 | 0.6165 | -592.9 | -573.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

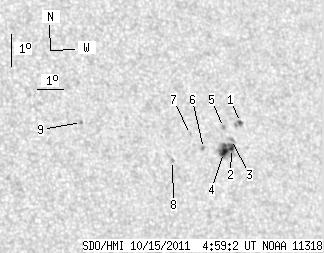

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.92 | 4.63 | 1.22 | 2.95 | 20.37 | 100.40 | 37.24 | 295.42 | 0.6305 | -620.7 | -561.5 | |
| 2.10 | 22.64 | 1.32 | 14.22 | 19.60 | 99.83 | 36.67 | 294.47 | 0.6204 | -713.9 | -674.3 | |
| 0.00 | 2.62 | 0.00 | 1.66 | 19.87 | 99.90 | 36.75 | 294.86 | 0.6224 | -604.0 | -446.9 | |
| 3.50 | -2.00 | 2.19 | -2.00 | 19.49 | 99.48 | 36.33 | 294.45 | 0.6157 | -1037.3 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.43 | 20.26 | 99.69 | 36.53 | 295.55 | 0.6213 | -717.0 | -625.3 | |
| 0.00 | 1.66 | 0.00 | 1.03 | 19.66 | 98.74 | 35.59 | 295.04 | 0.6071 | -835.0 | -592.5 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 20.12 | 98.35 | 35.19 | 295.95 | 0.6041 | -449.0 | -385.2 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 19.36 | 97.46 | 34.31 | 295.16 | 0.5897 | -675.0 | -555.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 20.71 | 94.33 | 31.17 | 299.11 | 0.5563 | 889.0 | 759.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
