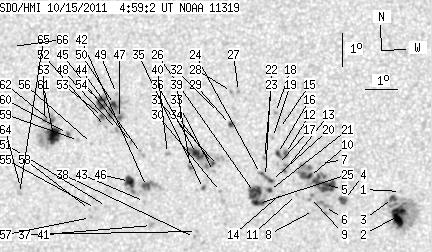

SDO HMI 2011-10-15 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.56 | 409.47 | 69.81 | 209.33 | 10.15 | 49.89 | -13.26 | 70.66 | 0.2394 | -93.4 | -19.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.48 | 9.59 | 55.24 | -7.92 | 64.29 | 0.1515 | -315.0 | -248.0 | |
| 17.75 | 80.60 | 8.89 | 40.35 | 8.87 | 55.19 | -7.96 | 68.87 | 0.1474 | -1333.9 | -551.7 | |
| 3.93 | -2.00 | 1.97 | -2.00 | 9.37 | 55.00 | -8.16 | 66.20 | 0.1537 | -941.4 | 999999 | |
| 4.55 | 5.42 | 2.29 | 2.73 | 9.29 | 53.50 | -9.66 | 69.86 | 0.1772 | -1097.1 | -943.6 | |
| 19.49 | 48.43 | 9.83 | 24.45 | 9.76 | 52.90 | -10.26 | 68.52 | 0.1895 | -1161.0 | -672.1 | |
| 0.00 | 11.28 | 0.00 | 5.68 | 9.10 | 52.92 | -10.24 | 71.83 | 0.1855 | -908.0 | -799.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 10.39 | 52.75 | -10.40 | 65.74 | 0.1957 | -781.0 | -599.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 8.98 | 52.58 | -10.57 | 72.97 | 0.1904 | -719.0 | -545.8 | |
| 0.00 | 2.88 | 0.00 | 1.46 | 9.36 | 52.48 | -10.68 | 71.18 | 0.1940 | -578.0 | -701.1 | |
| 2.01 | -5.00 | 1.02 | -5.00 | 9.99 | 52.43 | -10.73 | 68.22 | 0.1983 | -1038.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 9.44 | 52.04 | -11.11 | 71.43 | 0.2014 | -694.0 | -494.2 | |
| 2.80 | 7.87 | 1.42 | 3.99 | 10.67 | 51.66 | -11.49 | 66.48 | 0.2146 | -1023.0 | -855.1 | |
| 1.05 | 3.23 | 0.53 | 1.64 | 10.16 | 51.65 | -11.51 | 68.75 | 0.2116 | -965.8 | -887.3 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 9.53 | 51.64 | -11.52 | 71.62 | 0.2084 | -470.0 | -279.5 | |
| 0.00 | 1.84 | 0.00 | 0.93 | 11.41 | 51.44 | -11.71 | 63.71 | 0.2229 | -662.0 | -517.3 | |
| 2.01 | -12.00 | 1.02 | -12.00 | 10.66 | 51.41 | -11.74 | 66.92 | 0.2184 | -888.5 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 10.33 | 51.42 | -11.73 | 68.32 | 0.2162 | -830.0 | -570.4 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 11.89 | 51.30 | -11.86 | 62.06 | 0.2286 | -917.0 | -791.6 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 11.14 | 51.24 | -11.92 | 65.21 | 0.2242 | -698.0 | -474.3 | |
| 1.66 | 6.47 | 0.84 | 3.28 | 9.85 | 51.26 | -11.90 | 70.70 | 0.2162 | -952.5 | -753.7 | |
| 2.01 | 30.42 | 1.02 | 15.44 | 9.55 | 51.21 | -11.95 | 72.10 | 0.2155 | -975.7 | -61.1 | |
| 0.70 | -20.00 | 0.35 | -20.00 | 9.96 | 51.07 | -12.09 | 70.45 | 0.2199 | -722.0 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 10.50 | 51.01 | -12.14 | 68.22 | 0.2237 | -641.0 | -443.7 | |
| 0.79 | -20.00 | 0.40 | -20.00 | 10.05 | 50.91 | -12.25 | 70.29 | 0.2229 | -648.8 | 999999 | |
| 5.51 | -21.00 | 2.80 | -21.00 | 9.15 | 50.88 | -12.28 | 74.26 | 0.2191 | 1039.3 | 999999 | |
| 10.49 | -21.00 | 5.33 | -21.00 | 9.48 | 50.74 | -12.41 | 72.98 | 0.2227 | -909.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 12.50 | 50.11 | -13.04 | 61.91 | 0.2509 | -1007.0 | -817.5 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 12.49 | 49.89 | -13.26 | 62.30 | 0.2541 | -739.0 | -571.0 | |
| 2.01 | 2.80 | 1.03 | 1.43 | 11.50 | 49.91 | -13.25 | 65.91 | 0.2471 | 1001.0 | 764.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 9.48 | 49.69 | -13.47 | 74.11 | 0.2400 | 598.0 | 421.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 10.26 | 49.59 | -13.56 | 71.11 | 0.2450 | 575.0 | 586.6 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 11.85 | 49.51 | -13.64 | 65.20 | 0.2554 | 709.0 | 381.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.08 | 49.44 | -13.71 | 72.00 | 0.2465 | 1099.0 | 823.3 | |
| 1.84 | 32.69 | 0.94 | 16.74 | 10.32 | 49.40 | -13.75 | 71.11 | 0.2484 | 1105.7 | 195.9 | |
| 1.14 | 1.75 | 0.58 | 0.89 | 9.56 | 49.15 | -14.00 | 74.32 | 0.2490 | -637.5 | -632.9 | |
| 9.35 | -34.00 | 4.79 | -34.00 | 10.60 | 48.89 | -14.27 | 70.62 | 0.2580 | -1089.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 8.27 | 48.98 | -14.17 | 79.58 | 0.2474 | -979.0 | -775.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 8.09 | 48.93 | -14.23 | 80.34 | 0.2479 | -1032.0 | -882.5 | |
| 1.22 | 1.75 | 0.63 | 0.90 | 10.18 | 48.72 | -14.44 | 72.38 | 0.2586 | -736.4 | -687.0 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 10.58 | 47.97 | -15.18 | 71.68 | 0.2724 | 839.0 | 688.3 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 8.41 | 47.57 | -15.58 | 79.83 | 0.2712 | 1118.0 | 798.9 | |
| 4.28 | 12.15 | 2.21 | 6.26 | 9.57 | 47.36 | -15.79 | 75.77 | 0.2781 | 1113.5 | 839.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 9.12 | 47.32 | -15.83 | 77.40 | 0.2773 | 806.0 | 671.9 | |
| 0.00 | 3.41 | 0.00 | 1.76 | 10.56 | 47.15 | -16.00 | 72.54 | 0.2853 | 651.0 | 719.9 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 10.88 | 46.82 | -16.33 | 71.77 | 0.2921 | 975.0 | 753.3 | |
| 7.34 | 12.06 | 3.80 | 6.24 | 9.71 | 46.82 | -16.34 | 75.70 | 0.2874 | 1071.2 | 851.9 | |
| 1.92 | 44.93 | 1.00 | 23.39 | 11.59 | 46.40 | -16.76 | 69.87 | 0.3022 | 960.0 | 730.4 | |
| 0.00 | 2.80 | 0.00 | 1.45 | 11.26 | 46.35 | -16.80 | 70.97 | 0.3012 | 923.0 | 815.6 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 12.34 | 46.25 | -16.90 | 67.69 | 0.3084 | 242.0 | 238.2 | |
| 3.50 | -47.00 | 1.82 | -47.00 | 12.00 | 46.21 | -16.94 | 68.76 | 0.3072 | 1182.9 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 8.94 | 46.13 | -17.03 | 78.74 | 0.2962 | 547.0 | 458.9 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.33 | 45.97 | -17.19 | 71.08 | 0.3077 | 962.0 | 756.4 | |
| 1.84 | 4.46 | 0.96 | 2.32 | 11.63 | 45.85 | -17.30 | 70.26 | 0.3109 | 1012.2 | 746.9 | |
| 8.22 | -47.00 | 4.28 | -47.00 | 12.05 | 45.79 | -17.36 | 69.03 | 0.3139 | 1059.3 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 8.87 | 45.78 | -17.37 | 79.15 | 0.3017 | 891.0 | 586.5 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 10.81 | 45.55 | -17.60 | 73.06 | 0.3119 | 905.0 | 638.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 8.59 | 45.64 | -17.52 | 80.11 | 0.3034 | 830.0 | 710.8 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 8.83 | 45.60 | -17.56 | 79.35 | 0.3047 | 699.0 | 560.0 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 10.89 | 45.13 | -18.02 | 73.15 | 0.3189 | 782.0 | 588.3 | |
| 1.05 | 3.15 | 0.55 | 1.65 | 11.09 | 44.76 | -18.39 | 72.82 | 0.3255 | 1053.0 | 786.9 | |
| 14.95 | 43.88 | 7.85 | 23.05 | 11.01 | 44.32 | -18.84 | 73.37 | 0.3322 | 1166.9 | 363.9 | |
| 2.19 | -61.00 | 1.15 | -61.00 | 11.43 | 44.23 | -18.93 | 72.22 | 0.3354 | 949.9 | 999999 | |
| 0.96 | 3.06 | 0.51 | 1.61 | 11.45 | 44.00 | -19.16 | 72.33 | 0.3390 | 716.6 | 500.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 9.42 | 43.36 | -19.80 | 78.58 | 0.3424 | 883.0 | 693.3 | |
| 0.00 | 2.19 | 0.00 | 1.15 | 9.24 | 43.34 | -19.82 | 79.11 | 0.3423 | 823.0 | 494.0 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 13.64 | 42.78 | -20.37 | 67.36 | 0.3682 | 770.0 | 518.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
