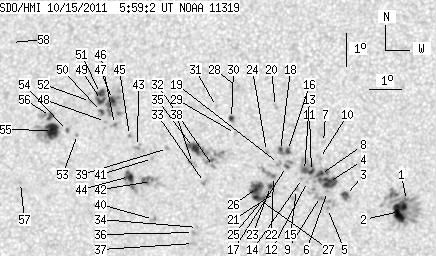

SDO HMI 2011-10-15 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.00 | 406.29 | 58.17 | 207.05 | 10.10 | 50.15 | -12.46 | 69.77 | 0.2263 | -136.8 | -63.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 81.82 | 0.74 | 40.91 | 9.17 | 55.43 | -7.17 | 64.76 | 0.1369 | -896.7 | -561.5 | |
| 16.70 | -1.00 | 8.35 | -1.00 | 8.84 | 55.23 | -7.38 | 67.58 | 0.1380 | -1343.9 | 999999 | |
| 4.46 | 5.59 | 2.24 | 2.81 | 9.29 | 53.56 | -9.04 | 68.62 | 0.1673 | -1104.2 | -863.1 | |
| 10.75 | 46.68 | 5.41 | 23.52 | 9.68 | 53.03 | -9.58 | 67.63 | 0.1781 | -1285.3 | -723.2 | |
| 0.00 | 1.84 | 0.00 | 0.92 | 8.90 | 53.02 | -9.58 | 71.85 | 0.1739 | -984.0 | -779.5 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 9.41 | 53.01 | -9.60 | 69.10 | 0.1769 | -1055.0 | -865.7 | |
| 0.00 | 1.92 | 0.00 | 0.97 | 10.87 | 52.84 | -9.77 | 62.06 | 0.1894 | -566.0 | -303.7 | |
| 3.23 | -4.00 | 1.63 | -4.00 | 9.91 | 52.78 | -9.83 | 66.91 | 0.1836 | -1134.0 | 999999 | |
| 0.00 | 13.72 | 0.00 | 6.91 | 9.25 | 52.80 | -9.81 | 70.30 | 0.1794 | -734.0 | -755.8 | |
| 0.00 | 3.41 | 0.00 | 1.72 | 10.39 | 52.73 | -9.87 | 64.62 | 0.1876 | -810.0 | -598.4 | |
| 2.01 | -4.00 | 1.01 | -4.00 | 10.00 | 52.50 | -10.11 | 67.04 | 0.1886 | -1135.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 9.69 | 52.39 | -10.22 | 68.75 | 0.1886 | -246.0 | -226.6 | |
| 3.41 | -4.00 | 1.72 | -4.00 | 10.02 | 52.28 | -10.33 | 67.32 | 0.1922 | -973.8 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 9.78 | 52.23 | -10.38 | 68.60 | 0.1916 | -693.0 | -549.7 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.45 | 52.05 | -10.55 | 70.54 | 0.1925 | -597.0 | -440.1 | |
| 2.19 | 6.91 | 1.11 | 3.50 | 10.61 | 51.74 | -10.87 | 65.57 | 0.2045 | -1067.5 | -837.6 | |
| 1.92 | 4.98 | 0.97 | 2.52 | 10.13 | 51.72 | -10.88 | 67.80 | 0.2017 | -949.5 | -848.4 | |
| 1.75 | -16.00 | 0.89 | -16.00 | 10.61 | 51.52 | -11.09 | 65.99 | 0.2079 | -885.8 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.55 | 10.22 | 51.47 | -11.14 | 67.84 | 0.2062 | -594.0 | -587.4 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 11.92 | 51.31 | -11.29 | 60.79 | 0.2206 | -895.0 | -653.7 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 9.35 | 51.41 | -11.20 | 71.99 | 0.2024 | 464.0 | 466.9 | |
| 1.14 | 7.52 | 0.58 | 3.81 | 9.82 | 51.33 | -11.28 | 69.87 | 0.2062 | -1066.8 | -777.0 | |
| 2.27 | 29.81 | 1.15 | 15.10 | 9.52 | 51.25 | -11.36 | 71.39 | 0.2059 | -889.8 | -135.8 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 10.57 | 51.09 | -11.52 | 66.92 | 0.2144 | -814.0 | -518.1 | |
| 0.44 | -23.00 | 0.22 | -23.00 | 9.16 | 51.04 | -11.56 | 73.36 | 0.2075 | 1070.8 | 999999 | |
| 6.82 | -23.00 | 3.46 | -23.00 | 9.48 | 50.85 | -11.76 | 72.11 | 0.2122 | -957.6 | 999999 | |
| 3.50 | -23.00 | 1.77 | -23.00 | 9.16 | 50.86 | -11.75 | 73.60 | 0.2105 | 1074.3 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.29 | 12.47 | 50.10 | -12.51 | 61.03 | 0.2428 | -913.0 | -656.6 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 11.09 | 50.10 | -12.51 | 66.35 | 0.2330 | 844.0 | 460.3 | |
| 2.36 | 2.88 | 1.20 | 1.47 | 11.54 | 49.96 | -12.65 | 64.82 | 0.2382 | 914.7 | 792.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 11.89 | 49.47 | -13.14 | 64.28 | 0.2480 | 712.0 | 494.4 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 10.08 | 49.46 | -13.15 | 71.29 | 0.2375 | 999.0 | 792.5 | |
| 0.00 | 2.01 | 0.00 | 1.03 | 9.60 | 49.20 | -13.41 | 73.55 | 0.2395 | -823.0 | -637.7 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 8.25 | 49.03 | -13.58 | 79.27 | 0.2375 | -953.0 | -631.0 | |
| 9.18 | 33.30 | 4.69 | 17.01 | 10.64 | 48.81 | -13.80 | 69.90 | 0.2507 | -1041.7 | 284.4 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 8.09 | 48.91 | -13.70 | 79.98 | 0.2391 | -1026.0 | -703.7 | |
| 0.00 | 2.01 | 0.00 | 1.03 | 7.77 | 48.92 | -13.68 | 81.34 | 0.2382 | -890.0 | -721.9 | |
| 0.00 | 3.85 | 0.00 | 1.97 | 10.16 | 48.80 | -13.81 | 71.76 | 0.2485 | -866.0 | -646.7 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 10.59 | 48.00 | -14.61 | 71.03 | 0.2634 | 939.0 | 672.2 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 8.45 | 47.65 | -14.96 | 79.31 | 0.2610 | 1094.0 | 908.4 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 10.28 | 47.54 | -15.07 | 72.63 | 0.2692 | 811.0 | 589.5 | |
| 0.00 | 14.95 | 0.00 | 7.68 | 9.59 | 47.54 | -15.07 | 75.14 | 0.2664 | 1257.0 | 843.6 | |
| 0.00 | 3.50 | 0.00 | 1.80 | 10.62 | 47.05 | -15.56 | 71.88 | 0.2786 | 716.0 | 785.8 | |
| 6.99 | 15.04 | 3.61 | 7.75 | 9.72 | 46.84 | -15.77 | 75.22 | 0.2782 | 1057.7 | 845.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.95 | 46.78 | -15.83 | 71.04 | 0.2845 | 987.0 | 867.2 | |
| 1.05 | 2.45 | 0.54 | 1.27 | 11.26 | 46.28 | -16.32 | 70.47 | 0.2938 | 964.3 | 818.9 | |
| 2.71 | 37.41 | 1.41 | 19.42 | 12.01 | 46.18 | -16.43 | 68.17 | 0.2994 | 1174.4 | 835.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 11.34 | 45.99 | -16.61 | 70.49 | 0.2987 | 1003.0 | 822.2 | |
| 3.41 | -47.00 | 1.77 | -47.00 | 11.97 | 45.83 | -16.78 | 68.67 | 0.3046 | 1153.8 | 999999 | |
| 2.36 | 3.32 | 1.23 | 1.73 | 11.64 | 45.85 | -16.76 | 69.69 | 0.3025 | 930.6 | 764.5 | |
| 4.46 | -47.00 | 2.32 | -47.00 | 12.18 | 45.78 | -16.83 | 68.07 | 0.3064 | 928.8 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 11.93 | 45.48 | -17.13 | 69.15 | 0.3097 | 805.0 | 625.1 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 10.93 | 45.13 | -17.48 | 72.58 | 0.3105 | 712.0 | 568.8 | |
| 1.57 | 2.80 | 0.82 | 1.46 | 11.04 | 44.80 | -17.81 | 72.50 | 0.3161 | 858.4 | 791.1 | |
| 14.51 | 34.00 | 7.59 | 17.81 | 11.02 | 44.32 | -18.29 | 72.92 | 0.3236 | 1180.4 | 358.9 | |
| 3.32 | 8.83 | 1.74 | 4.63 | 11.44 | 44.23 | -18.38 | 71.74 | 0.3269 | 943.8 | 571.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 9.43 | 43.39 | -19.22 | 78.25 | 0.3331 | 928.0 | 721.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 13.62 | 42.79 | -19.81 | 66.89 | 0.3597 | 484.0 | 372.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
