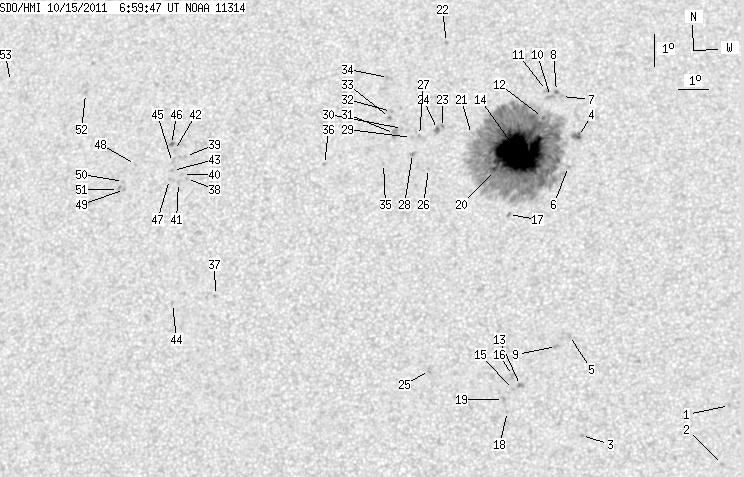

SDO HMI 2011-10-15 06:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.30 | 772.00 | 61.51 | 412.11 | 27.07 | 57.14 | -4.92 | 11.12 | 0.3728 | -864.8 | -416.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 06:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.67 | 19.31 | 64.51 | 2.46 | 350.11 | 0.2369 | -851.0 | -629.4 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 17.50 | 64.27 | 2.21 | 349.64 | 0.2058 | -952.0 | -713.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 18.39 | 59.84 | -2.22 | 9.62 | 0.2208 | -769.0 | -585.5 | |
| 1.49 | 6.47 | 0.79 | 3.46 | 27.76 | 59.57 | -2.48 | 5.86 | 0.3763 | 439.3 | -59.1 | |
| 0.00 | 2.01 | 0.00 | 1.03 | 21.47 | 59.41 | -2.65 | 9.08 | 0.2735 | -676.0 | -581.6 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 26.79 | 59.26 | -2.79 | 6.95 | 0.3613 | -295.0 | -246.1 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 29.05 | 58.96 | -3.09 | 6.83 | 0.3981 | 805.0 | 717.9 | |
| 0.00 | 1.84 | 0.00 | 0.99 | 29.21 | 58.79 | -3.27 | 7.16 | 0.4010 | 965.0 | 827.9 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 21.13 | 59.00 | -3.06 | 10.71 | 0.2690 | -871.0 | -738.2 | |
| 0.00 | 2.88 | 0.00 | 1.56 | 29.05 | 58.59 | -3.47 | 7.65 | 0.3988 | 1051.0 | 810.7 | |
| 0.00 | 2.53 | 0.00 | 1.37 | 29.24 | 58.44 | -3.61 | 7.89 | 0.4022 | 470.0 | 329.4 | |
| 0.44 | 683.73 | 0.23 | 364.82 | 28.36 | 58.34 | -3.72 | 8.48 | 0.3885 | 607.2 | -455.8 | |
| 0.00 | 3.32 | 0.00 | 1.70 | 19.91 | 57.87 | -4.18 | 15.76 | 0.2534 | -1199.0 | -883.4 | |
| 111.71 | -12.00 | 59.59 | -12.00 | 27.23 | 57.57 | -4.49 | 10.81 | 0.3726 | -1539.6 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.79 | 57.65 | -4.40 | 16.70 | 0.2524 | -923.0 | -750.9 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 20.22 | 57.61 | -4.44 | 16.34 | 0.2596 | -798.0 | -717.8 | |
| 0.00 | 2.10 | 0.00 | 1.11 | 25.25 | 57.31 | -4.74 | 12.70 | 0.3418 | 780.0 | 499.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 19.11 | 57.48 | -4.57 | 18.19 | 0.2423 | -943.0 | -726.6 | |
| 0.00 | 2.10 | 0.00 | 1.07 | 19.48 | 57.34 | -4.71 | 18.20 | 0.2490 | -1000.0 | -817.2 | |
| 0.61 | -12.00 | 0.33 | -12.00 | 26.65 | 56.78 | -5.27 | 13.02 | 0.3659 | -996.0 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.74 | 27.80 | 55.95 | -6.11 | 14.13 | 0.3871 | 29.0 | -1.9 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 30.79 | 54.89 | -7.17 | 14.25 | 0.4371 | -898.0 | -737.8 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 28.01 | 54.95 | -7.11 | 16.14 | 0.3946 | -764.0 | -674.5 | |
| 0.61 | 2.45 | 0.33 | 1.32 | 27.94 | 54.78 | -7.27 | 16.55 | 0.3943 | -1033.0 | -968.7 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 20.35 | 54.95 | -7.11 | 24.84 | 0.2774 | -793.0 | -717.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 26.69 | 54.56 | -7.50 | 18.13 | 0.3762 | -899.0 | -727.5 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 27.74 | 54.18 | -7.87 | 18.00 | 0.3941 | -903.0 | -713.7 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 27.16 | 53.98 | -8.07 | 18.95 | 0.3864 | -1056.0 | -868.0 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 27.67 | 53.91 | -8.14 | 18.62 | 0.3945 | -690.0 | -598.5 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 27.96 | 53.58 | -8.47 | 19.05 | 0.4004 | -874.0 | -691.4 | |
| 0.00 | 5.68 | 0.00 | 3.07 | 27.80 | 53.32 | -8.73 | 19.74 | 0.3994 | -925.0 | -806.6 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 28.50 | 53.16 | -8.89 | 19.40 | 0.4108 | -853.0 | -635.4 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 28.31 | 53.11 | -8.95 | 19.69 | 0.4081 | -945.0 | -791.0 | |
| 0.00 | 2.53 | 0.00 | 1.39 | 29.61 | 52.96 | -9.09 | 18.81 | 0.4281 | -611.0 | -590.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 26.83 | 53.03 | -9.03 | 21.33 | 0.3867 | -821.0 | -641.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 26.76 | 51.02 | -11.03 | 25.50 | 0.3985 | -824.0 | -656.9 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 22.55 | 47.78 | -14.27 | 38.16 | 0.3701 | 835.0 | 640.7 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 26.21 | 46.35 | -15.70 | 34.69 | 0.4285 | 833.0 | 603.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 26.91 | 46.22 | -15.84 | 33.89 | 0.4383 | 683.0 | 559.4 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 26.33 | 46.19 | -15.86 | 34.76 | 0.4314 | 482.0 | 527.1 | |
| 0.00 | 1.84 | 0.00 | 1.01 | 26.07 | 46.09 | -15.96 | 35.31 | 0.4292 | 879.0 | 560.2 | |
| 0.00 | 1.57 | 0.00 | 0.87 | 27.09 | 45.80 | -16.25 | 34.28 | 0.4441 | 824.0 | 540.6 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 26.45 | 45.83 | -16.22 | 35.17 | 0.4361 | 835.0 | 701.4 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 22.26 | 46.37 | -15.68 | 41.21 | 0.3813 | 592.0 | 509.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 26.71 | 45.79 | -16.26 | 34.85 | 0.4396 | 842.0 | 680.8 | |
| 0.44 | 1.22 | 0.24 | 0.68 | 27.28 | 45.67 | -16.38 | 34.22 | 0.4476 | 886.0 | 788.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 26.16 | 45.77 | -16.29 | 35.70 | 0.4332 | 854.0 | 670.1 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 26.61 | 44.51 | -17.54 | 36.96 | 0.4501 | 806.0 | 640.9 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 25.80 | 44.26 | -17.80 | 38.57 | 0.4433 | 980.0 | 755.9 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 26.05 | 44.18 | -17.87 | 38.29 | 0.4469 | 701.0 | 569.2 | |
| 0.00 | 2.27 | 0.00 | 1.26 | 25.79 | 44.05 | -18.01 | 38.89 | 0.4452 | 827.0 | 708.7 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 28.83 | 42.33 | -19.72 | 36.79 | 0.4956 | 453.0 | 408.3 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 29.13 | 39.52 | -22.53 | 39.82 | 0.5249 | 559.0 | 564.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
