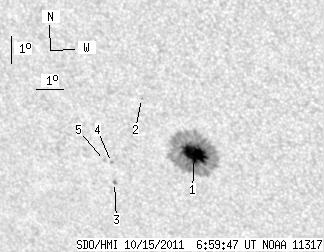

SDO HMI 2011-10-15 06:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.09 | 157.95 | 16.30 | 102.68 | -26.61 | 37.42 | -24.64 | 144.82 | 0.6493 | 1020.8 | 375.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 06:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.65 | 153.14 | 16.00 | 99.46 | -26.60 | 37.51 | -24.55 | 144.91 | 0.6485 | 1175.4 | 374.4 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -24.75 | 35.98 | -26.07 | 141.40 | 0.6421 | -649.0 | -488.0 | |
| 0.44 | 1.49 | 0.30 | 1.01 | -27.80 | 34.20 | -27.85 | 142.78 | 0.6855 | 770.2 | 688.3 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -27.08 | 34.28 | -27.77 | 142.13 | 0.6782 | 814.0 | 706.1 | |
| 0.00 | 1.40 | 0.00 | 0.94 | -27.02 | 34.03 | -28.02 | 141.84 | 0.6796 | 749.0 | 537.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
