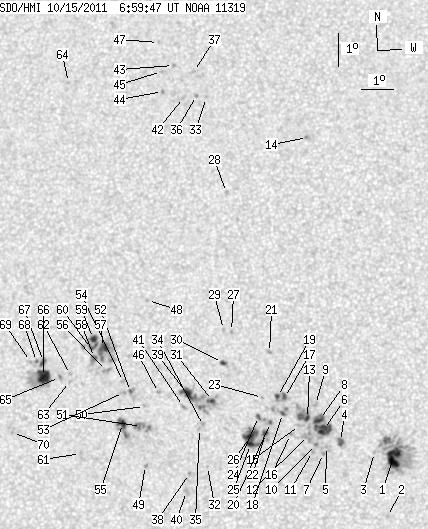

SDO HMI 2011-10-15 06:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.67 | 434.56 | 53.80 | 221.26 | 10.51 | 50.05 | -12.00 | 67.77 | 0.2227 | -81.7 | -2.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 06:59:47 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.26 | 86.89 | 8.12 | 43.39 | 8.84 | 55.25 | -6.80 | 65.91 | 0.1288 | -1354.3 | -563.3 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 7.07 | 55.10 | -6.95 | 79.83 | 0.1226 | -913.0 | -552.1 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 8.98 | 54.67 | -7.38 | 66.60 | 0.1390 | -816.0 | -618.6 | |
| 3.85 | 3.93 | 1.93 | 1.97 | 9.30 | 53.62 | -8.43 | 67.25 | 0.1576 | -1133.2 | -1174.0 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 9.14 | 53.20 | -8.86 | 69.09 | 0.1635 | -1113.0 | -899.9 | |
| 13.46 | 27.62 | 6.76 | 13.88 | 9.65 | 53.09 | -8.96 | 66.44 | 0.1683 | -1233.7 | -856.9 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 8.93 | 53.11 | -8.94 | 70.48 | 0.1637 | -1027.0 | -832.7 | |
| 4.98 | -6.00 | 2.51 | -6.00 | 9.94 | 52.96 | -9.09 | 65.13 | 0.1723 | -1080.5 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.01 | 10.39 | 52.83 | -9.23 | 63.11 | 0.1777 | -854.0 | -672.0 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 9.19 | 52.86 | -9.19 | 69.45 | 0.1692 | -1051.0 | -910.7 | |
| 0.00 | 2.10 | 0.00 | 1.05 | 8.98 | 52.77 | -9.28 | 70.80 | 0.1694 | -756.0 | -584.1 | |
| 0.00 | 10.49 | 0.00 | 5.28 | 9.46 | 52.64 | -9.42 | 68.42 | 0.1743 | -535.0 | -678.9 | |
| 2.27 | 14.42 | 1.14 | 7.26 | 9.97 | 52.59 | -9.46 | 65.82 | 0.1783 | -1125.6 | -705.8 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 18.46 | 52.23 | -9.83 | 36.44 | 0.2738 | -1075.0 | -671.1 | |
| 0.00 | 3.32 | 0.00 | 1.67 | 9.75 | 52.35 | -9.70 | 67.43 | 0.1807 | -679.0 | -562.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.48 | 52.08 | -9.97 | 69.36 | 0.1833 | -574.0 | -325.9 | |
| 2.88 | 9.18 | 1.46 | 4.63 | 10.59 | 51.86 | -10.19 | 64.31 | 0.1939 | -1061.8 | -689.3 | |
| 1.49 | 8.92 | 0.75 | 4.50 | 10.10 | 51.82 | -10.24 | 66.71 | 0.1913 | -873.8 | -725.0 | |
| 1.66 | -17.00 | 0.84 | -17.00 | 10.61 | 51.65 | -10.41 | 64.64 | 0.1974 | -904.7 | 999999 | |
| 1.40 | 7.52 | 0.71 | 3.80 | 9.83 | 51.46 | -10.60 | 68.71 | 0.1954 | -993.1 | -753.9 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 11.93 | 51.35 | -10.70 | 59.48 | 0.2119 | -959.0 | -660.4 | |
| 1.84 | 32.52 | 0.93 | 16.44 | 9.50 | 51.31 | -10.74 | 70.56 | 0.1958 | -1042.9 | -177.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 10.57 | 51.18 | -10.87 | 65.72 | 0.2043 | -693.0 | -452.4 | |
| 1.92 | -20.00 | 0.97 | -20.00 | 10.00 | 51.08 | -10.97 | 68.53 | 0.2024 | -645.7 | 999999 | |
| 3.32 | -22.00 | 1.68 | -22.00 | 9.16 | 50.86 | -11.19 | 72.85 | 0.2015 | 1062.8 | 999999 | |
| 3.23 | -22.00 | 1.64 | -22.00 | 9.40 | 50.85 | -11.20 | 71.72 | 0.2027 | -921.0 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 12.54 | 50.14 | -11.92 | 59.64 | 0.2347 | -886.0 | -741.6 | |
| 0.00 | 2.01 | 0.00 | 1.04 | 16.73 | 49.74 | -12.31 | 46.97 | 0.2806 | 829.0 | 646.4 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 12.59 | 49.88 | -12.17 | 59.93 | 0.2388 | -793.0 | -591.8 | |
| 1.66 | 3.93 | 0.85 | 2.00 | 11.60 | 49.90 | -12.15 | 63.71 | 0.2311 | 919.2 | 813.3 | |
| 1.31 | 33.57 | 0.67 | 17.10 | 10.45 | 49.64 | -12.42 | 68.79 | 0.2279 | 1113.8 | 380.0 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 8.47 | 49.55 | -12.50 | 77.45 | 0.2203 | -733.0 | -486.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 19.63 | 48.88 | -13.17 | 41.78 | 0.3235 | 678.0 | 560.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.70 | 49.39 | -12.67 | 72.29 | 0.2279 | -657.0 | -588.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 9.60 | 49.27 | -12.79 | 72.82 | 0.2295 | -1015.0 | -727.7 | |
| 0.00 | 1.66 | 0.00 | 0.87 | 19.68 | 48.55 | -13.50 | 42.35 | 0.3278 | 1068.0 | 842.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 20.42 | 48.39 | -13.67 | 41.11 | 0.3382 | 774.0 | 633.3 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 8.25 | 49.00 | -13.05 | 78.86 | 0.2288 | -947.0 | -755.6 | |
| 8.39 | -31.00 | 4.28 | -31.00 | 10.64 | 48.85 | -13.21 | 69.10 | 0.2414 | -1045.5 | 999999 | |
| 0.00 | 3.85 | 0.00 | 1.96 | 7.71 | 48.93 | -13.13 | 81.26 | 0.2287 | -862.0 | -619.5 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 10.25 | 48.74 | -13.31 | 70.79 | 0.2410 | -855.0 | -713.8 | |
| 0.00 | 2.19 | 0.00 | 1.15 | 19.61 | 48.13 | -13.92 | 43.34 | 0.3317 | 812.0 | 513.7 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 20.59 | 47.71 | -14.34 | 42.07 | 0.3475 | 957.0 | 719.5 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 19.78 | 47.43 | -14.62 | 44.32 | 0.3416 | 964.0 | 779.2 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 20.39 | 47.34 | -14.72 | 43.18 | 0.3495 | 839.0 | 650.8 | |
| 0.00 | 1.92 | 0.00 | 0.99 | 10.65 | 47.94 | -14.11 | 70.21 | 0.2558 | 956.0 | 680.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 21.29 | 47.15 | -14.91 | 41.71 | 0.3618 | 783.0 | 650.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 13.41 | 47.44 | -14.61 | 61.32 | 0.2810 | 983.0 | 731.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 8.46 | 47.63 | -14.43 | 78.94 | 0.2522 | 960.0 | 959.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.22 | 47.52 | -14.53 | 72.27 | 0.2604 | 684.0 | 521.0 | |
| 0.00 | 11.54 | 0.00 | 5.92 | 9.62 | 47.45 | -14.60 | 74.59 | 0.2589 | 913.0 | 980.9 | |
| 0.61 | 5.33 | 0.31 | 2.74 | 10.66 | 47.06 | -14.99 | 71.16 | 0.2699 | 1135.3 | 629.2 | |
| 0.00 | 2.10 | 0.00 | 1.08 | 10.62 | 46.84 | -15.21 | 71.51 | 0.2732 | 962.0 | 758.5 | |
| 0.00 | 2.01 | 0.00 | 1.04 | 10.95 | 46.82 | -15.23 | 70.37 | 0.2751 | 1004.0 | 742.1 | |
| 4.63 | 13.55 | 2.38 | 6.96 | 9.69 | 46.85 | -15.20 | 74.83 | 0.2690 | 1130.9 | 866.7 | |
| 0.00 | 3.76 | 0.00 | 1.94 | 11.27 | 46.27 | -15.78 | 69.88 | 0.2854 | 1091.0 | 865.7 | |
| 6.73 | 53.32 | 3.48 | 27.61 | 11.96 | 46.13 | -15.92 | 67.76 | 0.2912 | 1206.1 | 734.2 | |
| 2.45 | -57.00 | 1.27 | -57.00 | 11.65 | 45.87 | -16.19 | 69.05 | 0.2937 | 908.3 | 999999 | |
| 3.23 | -57.00 | 1.68 | -57.00 | 12.22 | 45.80 | -16.25 | 67.30 | 0.2979 | 927.2 | 999999 | |
| 1.40 | -57.00 | 0.73 | -57.00 | 11.92 | 45.75 | -16.30 | 68.31 | 0.2968 | 1102.8 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 8.76 | 45.58 | -16.48 | 79.01 | 0.2869 | 708.0 | 540.9 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 11.12 | 45.13 | -16.92 | 71.48 | 0.3025 | 785.0 | 456.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 10.91 | 45.12 | -16.94 | 72.17 | 0.3019 | 784.0 | 544.8 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 19.97 | 44.30 | -17.76 | 49.13 | 0.3807 | 837.0 | 569.7 | |
| 0.00 | 2.01 | 0.00 | 1.05 | 11.02 | 44.79 | -17.26 | 72.10 | 0.3075 | 968.0 | 803.6 | |
| 13.29 | 36.54 | 6.93 | 19.08 | 11.03 | 44.28 | -17.78 | 72.48 | 0.3156 | 1176.1 | 400.2 | |
| 3.06 | 3.93 | 1.60 | 2.05 | 11.48 | 44.25 | -17.80 | 71.13 | 0.3181 | 953.9 | 849.4 | |
| 0.35 | 1.57 | 0.18 | 0.82 | 11.47 | 44.02 | -18.03 | 71.34 | 0.3216 | 663.8 | 578.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 11.47 | 43.83 | -18.22 | 71.52 | 0.3245 | 712.0 | 564.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 9.32 | 43.39 | -18.67 | 78.30 | 0.3240 | 611.0 | 501.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
