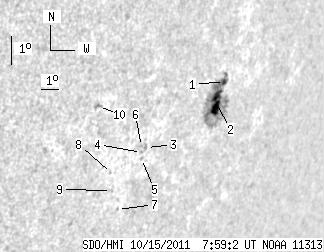

SDO HMI 2011-10-15 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.05 | 86.45 | 17.66 | 88.39 | -14.66 | 119.47 | 57.96 | 249.63 | 0.8764 | 327.5 | 182.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.19 | 76.57 | 2.27 | 79.34 | -13.98 | 120.15 | 58.63 | 250.58 | 0.8805 | 495.4 | 265.8 | |
| 14.86 | -1.00 | 15.39 | -1.00 | -14.63 | 119.94 | 58.43 | 249.82 | 0.8802 | 699.1 | 999999 | |
| 0.00 | 1.57 | 0.00 | 1.49 | -15.74 | 116.43 | 54.91 | 247.48 | 0.8547 | -219.0 | -220.6 | |
| 0.00 | 1.14 | 0.00 | 1.07 | -15.88 | 116.21 | 54.70 | 247.25 | 0.8533 | -450.0 | -358.8 | |
| 0.00 | 0.79 | 0.00 | 0.75 | -16.08 | 116.29 | 54.78 | 247.06 | 0.8545 | -363.0 | -274.2 | |
| 0.00 | 0.70 | 0.00 | 0.66 | -15.69 | 116.13 | 54.62 | 247.45 | 0.8520 | -523.0 | -462.5 | |
| 0.00 | 0.79 | 0.00 | 0.74 | -17.66 | 115.67 | 54.16 | 245.08 | 0.8538 | -305.0 | -223.7 | |
| 0.00 | 0.61 | 0.00 | 0.56 | -16.43 | 114.83 | 53.32 | 246.15 | 0.8432 | -489.0 | -523.4 | |
| 0.00 | 1.05 | 0.00 | 0.97 | -17.00 | 115.07 | 53.55 | 245.60 | 0.8468 | -482.0 | -339.3 | |
| 0.00 | 3.23 | 0.00 | 2.81 | -14.18 | 113.35 | 51.84 | 248.19 | 0.8233 | -649.0 | -524.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
