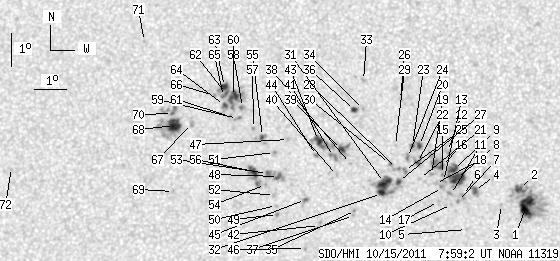

SDO HMI 2011-10-15 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.85 | 406.42 | 61.85 | 206.26 | 10.07 | 50.19 | -11.32 | 67.85 | 0.2084 | -174.0 | -67.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.83 | 79.80 | 8.90 | 39.81 | 8.84 | 55.29 | -6.22 | 63.95 | 0.1198 | -1305.5 | -555.9 | |
| 5.07 | -1.00 | 2.53 | -1.00 | 9.32 | 55.07 | -6.44 | 61.27 | 0.1269 | -958.2 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 8.86 | 54.53 | -6.98 | 66.24 | 0.1319 | -812.0 | -554.9 | |
| 3.58 | 5.59 | 1.79 | 2.80 | 9.27 | 53.70 | -7.82 | 65.85 | 0.1478 | -1145.5 | -847.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 8.10 | 53.48 | -8.04 | 73.94 | 0.1447 | -849.0 | -529.9 | |
| 0.00 | 3.15 | 0.00 | 1.58 | 9.12 | 53.33 | -8.18 | 67.71 | 0.1525 | -965.0 | -877.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 8.93 | 53.18 | -8.33 | 69.17 | 0.1538 | -1016.0 | -868.3 | |
| 13.98 | 31.64 | 7.02 | 15.88 | 9.62 | 53.14 | -8.38 | 65.17 | 0.1590 | -1214.2 | -817.1 | |
| 5.33 | -8.00 | 2.68 | -8.00 | 9.89 | 53.04 | -8.48 | 63.89 | 0.1624 | -1085.2 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 8.84 | 53.00 | -8.51 | 70.12 | 0.1562 | -883.0 | -664.1 | |
| 0.00 | 2.53 | 0.00 | 1.27 | 9.14 | 52.97 | -8.55 | 68.40 | 0.1586 | -984.0 | -789.0 | |
| 0.00 | 4.11 | 0.00 | 2.06 | 10.43 | 52.84 | -8.67 | 61.50 | 0.1696 | -799.0 | -660.0 | |
| 0.00 | 2.19 | 0.00 | 1.10 | 9.53 | 52.74 | -8.77 | 66.66 | 0.1646 | -962.0 | -755.5 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 9.35 | 52.72 | -8.80 | 67.75 | 0.1638 | -783.0 | -766.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.74 | 52.71 | -8.81 | 65.58 | 0.1665 | -928.0 | -824.0 | |
| 2.27 | 14.68 | 1.14 | 7.38 | 9.97 | 52.67 | -8.85 | 64.35 | 0.1688 | -1181.4 | -666.7 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 8.92 | 52.60 | -8.91 | 70.41 | 0.1632 | -733.0 | -489.5 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 9.46 | 52.50 | -9.02 | 67.56 | 0.1680 | -622.0 | -527.7 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 9.73 | 52.37 | -9.15 | 66.37 | 0.1718 | -755.0 | -572.8 | |
| 1.75 | 7.69 | 0.88 | 3.88 | 10.59 | 51.97 | -9.54 | 62.82 | 0.1840 | -1037.3 | -778.4 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 9.60 | 52.00 | -9.51 | 67.81 | 0.1768 | -547.0 | -351.4 | |
| 1.75 | 6.03 | 0.88 | 3.04 | 10.08 | 51.93 | -9.59 | 65.48 | 0.1811 | -868.2 | -730.4 | |
| 1.40 | -20.00 | 0.71 | -20.00 | 10.59 | 51.76 | -9.76 | 63.33 | 0.1873 | -932.6 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 10.23 | 51.61 | -9.90 | 65.41 | 0.1869 | -946.0 | -754.1 | |
| 0.00 | 2.62 | 0.00 | 1.32 | 9.84 | 51.53 | -9.98 | 67.53 | 0.1856 | -1218.0 | -976.2 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 11.96 | 51.34 | -10.18 | 58.08 | 0.2046 | -888.0 | -666.1 | |
| 2.27 | 32.78 | 1.15 | 16.54 | 9.50 | 51.36 | -10.15 | 69.54 | 0.1864 | -990.5 | 78.7 | |
| 0.00 | 3.32 | 0.00 | 1.68 | 9.89 | 51.29 | -10.23 | 67.72 | 0.1899 | -812.0 | -675.1 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 10.58 | 51.23 | -10.28 | 64.50 | 0.1953 | -708.0 | -461.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 10.04 | 51.07 | -10.45 | 67.42 | 0.1943 | -790.0 | -607.5 | |
| 9.35 | -27.00 | 4.72 | -27.00 | 9.47 | 50.93 | -10.58 | 70.44 | 0.1932 | -877.4 | 999999 | |
| 3.15 | -27.00 | 1.59 | -27.00 | 9.13 | 50.85 | -10.67 | 72.21 | 0.1928 | 1004.7 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.07 | 12.51 | 50.16 | -11.35 | 58.54 | 0.2263 | -1070.0 | -782.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 11.64 | 50.20 | -11.31 | 61.93 | 0.2187 | 973.0 | 770.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 8.61 | 50.06 | -11.45 | 75.78 | 0.2035 | -760.0 | -626.7 | |
| 2.19 | 3.41 | 1.11 | 1.73 | 11.61 | 49.92 | -11.59 | 62.62 | 0.2227 | 965.3 | 768.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 8.46 | 50.00 | -11.51 | 76.56 | 0.2038 | -1016.0 | -773.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 10.01 | 49.86 | -11.65 | 69.52 | 0.2133 | 957.0 | 712.0 | |
| 3.32 | 9.70 | 1.69 | 4.92 | 10.43 | 49.56 | -11.95 | 68.17 | 0.2204 | 1033.6 | 713.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 9.65 | 49.47 | -12.04 | 71.70 | 0.2177 | -660.0 | -511.5 | |
| 0.00 | 4.37 | 0.00 | 2.22 | 10.21 | 49.32 | -12.19 | 69.44 | 0.2229 | 992.0 | 939.7 | |
| 0.00 | 3.15 | 0.00 | 1.60 | 8.14 | 48.96 | -12.55 | 78.97 | 0.2201 | -341.0 | -498.2 | |
| 5.33 | 18.27 | 2.72 | 9.30 | 10.68 | 48.84 | -12.68 | 68.19 | 0.2333 | -1039.3 | -509.9 | |
| 0.00 | 1.92 | 0.00 | 0.98 | 10.23 | 48.79 | -12.72 | 70.09 | 0.2315 | -976.0 | -750.0 | |
| 1.75 | 4.02 | 0.89 | 2.05 | 8.91 | 48.50 | -13.01 | 75.99 | 0.2303 | -810.7 | -697.7 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 7.44 | 48.55 | -12.96 | 82.33 | 0.2254 | -813.0 | -700.8 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 10.69 | 47.90 | -13.61 | 69.43 | 0.2481 | 371.0 | 361.1 | |
| 2.97 | 12.32 | 1.52 | 6.30 | 9.57 | 47.64 | -13.88 | 74.07 | 0.2471 | 1065.4 | 853.0 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 8.44 | 47.65 | -13.86 | 78.63 | 0.2429 | 1112.0 | 876.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 8.71 | 47.61 | -13.90 | 77.57 | 0.2443 | 853.0 | 625.8 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 10.29 | 47.48 | -14.03 | 71.46 | 0.2528 | 835.0 | 637.9 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 9.00 | 47.54 | -13.98 | 76.43 | 0.2465 | 792.0 | 628.6 | |
| 2.01 | -48.00 | 1.03 | -48.00 | 9.66 | 47.29 | -14.22 | 74.09 | 0.2530 | 1100.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 9.33 | 47.24 | -14.27 | 75.41 | 0.2525 | 965.0 | 805.8 | |
| 1.49 | 6.82 | 0.76 | 3.50 | 10.76 | 47.08 | -14.43 | 70.15 | 0.2615 | 1011.6 | 649.0 | |
| 5.86 | 14.16 | 3.00 | 7.26 | 9.70 | 46.85 | -14.66 | 74.31 | 0.2604 | 1063.3 | 879.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 10.99 | 46.79 | -14.73 | 69.65 | 0.2673 | 1074.0 | 843.6 | |
| 0.00 | 2.62 | 0.00 | 1.35 | 11.61 | 46.41 | -15.11 | 67.93 | 0.2767 | 1019.0 | 861.7 | |
| 0.00 | 2.88 | 0.00 | 1.49 | 11.28 | 46.27 | -15.25 | 69.24 | 0.2770 | 1024.0 | 836.6 | |
| 7.60 | 39.07 | 3.93 | 20.18 | 11.94 | 46.10 | -15.41 | 67.21 | 0.2833 | 1220.1 | 792.8 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 11.33 | 46.01 | -15.50 | 69.34 | 0.2813 | 915.0 | 743.1 | |
| 1.49 | -60.00 | 0.77 | -60.00 | 12.02 | 45.88 | -15.64 | 67.20 | 0.2873 | 1118.2 | 999999 | |
| 3.85 | -60.00 | 1.99 | -60.00 | 12.23 | 45.80 | -15.71 | 66.61 | 0.2897 | 947.6 | 999999 | |
| 2.62 | -60.00 | 1.35 | -60.00 | 11.66 | 45.83 | -15.68 | 68.45 | 0.2858 | 974.5 | 999999 | |
| 1.14 | -60.00 | 0.59 | -60.00 | 11.93 | 45.79 | -15.73 | 67.61 | 0.2881 | 1128.0 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 11.95 | 45.50 | -16.01 | 67.87 | 0.2927 | 881.0 | 676.6 | |
| 0.00 | 2.53 | 0.00 | 1.32 | 11.09 | 44.82 | -16.69 | 71.35 | 0.2988 | 992.0 | 818.2 | |
| 11.10 | 34.00 | 5.78 | 17.70 | 11.01 | 44.28 | -17.23 | 72.06 | 0.3070 | 1219.7 | 418.2 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 9.04 | 44.36 | -17.15 | 78.42 | 0.2987 | 884.0 | 709.9 | |
| 1.40 | 8.48 | 0.73 | 4.42 | 11.37 | 44.20 | -17.32 | 71.02 | 0.3100 | 1007.2 | 733.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.51 | 43.14 | -18.37 | 65.76 | 0.3375 | 669.0 | 561.6 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 9.58 | 39.11 | -22.41 | 79.12 | 0.3844 | 336.0 | 469.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
