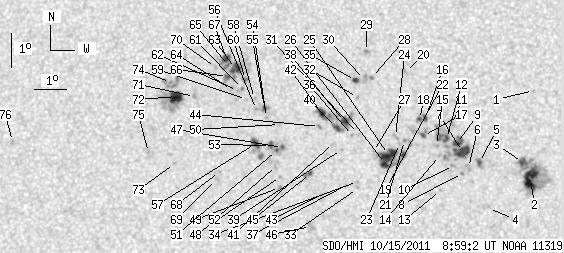

SDO HMI 2011-10-15 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.18 | 436.73 | 64.39 | 221.46 | 10.09 | 49.86 | -11.11 | 67.17 | 0.2055 | -24.4 | -9.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 08:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.52 | 11.44 | 55.37 | -5.60 | 44.39 | 0.1373 | -736.0 | -641.2 | |
| 16.52 | 67.65 | 8.23 | 33.71 | 8.81 | 55.32 | -5.64 | 61.96 | 0.1106 | -1286.3 | -628.8 | |
| 4.63 | -2.00 | 2.31 | -2.00 | 9.28 | 55.07 | -5.89 | 59.33 | 0.1184 | -945.5 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 7.90 | 54.06 | -6.90 | 73.13 | 0.1250 | -498.0 | -576.6 | |
| 2.71 | 5.16 | 1.35 | 2.58 | 9.27 | 53.76 | -7.20 | 64.10 | 0.1382 | -1100.1 | -889.6 | |
| 0.00 | 3.76 | 0.00 | 1.88 | 9.11 | 53.43 | -7.54 | 66.06 | 0.1424 | -850.0 | -798.1 | |
| 12.76 | 55.23 | 6.39 | 27.69 | 9.59 | 53.24 | -7.73 | 63.60 | 0.1488 | -1225.1 | -716.8 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 8.93 | 53.25 | -7.72 | 67.71 | 0.1440 | -1054.0 | -847.1 | |
| 3.41 | -7.00 | 1.71 | -7.00 | 9.83 | 53.05 | -7.92 | 62.72 | 0.1535 | -1127.2 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.27 | 9.17 | 52.97 | -8.00 | 66.91 | 0.1500 | -1028.0 | -747.6 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 10.43 | 52.91 | -8.06 | 59.73 | 0.1604 | -827.0 | -655.7 | |
| 3.15 | -7.00 | 1.58 | -7.00 | 9.97 | 52.74 | -8.23 | 62.75 | 0.1593 | -1073.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 8.41 | 52.59 | -8.38 | 72.48 | 0.1518 | -714.0 | -541.2 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 9.46 | 52.53 | -8.43 | 66.21 | 0.1588 | -580.0 | -446.0 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 9.76 | 52.44 | -8.53 | 64.74 | 0.1624 | -891.0 | -685.8 | |
| 2.10 | 6.21 | 1.05 | 3.12 | 10.59 | 52.07 | -8.89 | 61.19 | 0.1742 | -947.4 | -772.5 | |
| 1.49 | 10.92 | 0.75 | 5.49 | 10.05 | 52.03 | -8.94 | 64.13 | 0.1708 | -966.4 | -664.4 | |
| 1.92 | -16.00 | 0.97 | -16.00 | 10.53 | 51.89 | -9.07 | 61.98 | 0.1765 | -911.5 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.32 | 9.81 | 51.64 | -9.33 | 66.33 | 0.1752 | -969.0 | -829.3 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 11.96 | 51.41 | -9.55 | 56.48 | 0.1957 | -656.0 | -657.9 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 9.89 | 51.45 | -9.52 | 66.28 | 0.1788 | -889.0 | -737.5 | |
| 2.01 | 33.91 | 1.01 | 17.08 | 9.44 | 51.43 | -9.54 | 68.69 | 0.1762 | -813.8 | 2.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 9.80 | 51.30 | -9.67 | 67.07 | 0.1805 | -754.0 | -639.0 | |
| 0.00 | 2.88 | 0.00 | 1.45 | 10.01 | 51.17 | -9.80 | 66.27 | 0.1839 | -656.0 | -510.1 | |
| 11.80 | -22.00 | 5.94 | -22.00 | 9.47 | 50.97 | -10.00 | 69.42 | 0.1838 | -865.1 | 999999 | |
| 7.17 | -22.00 | 3.61 | -22.00 | 9.19 | 50.88 | -10.08 | 70.97 | 0.1836 | 757.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 9.55 | 50.50 | -10.46 | 69.81 | 0.1917 | -684.0 | -478.0 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 11.76 | 50.37 | -10.60 | 59.89 | 0.2092 | 976.0 | 814.9 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 12.54 | 50.18 | -10.79 | 57.14 | 0.2185 | -1024.0 | -779.9 | |
| 0.00 | 3.93 | 0.00 | 1.99 | 11.70 | 50.15 | -10.82 | 60.63 | 0.2118 | 886.0 | 808.5 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 10.08 | 50.02 | -10.94 | 68.07 | 0.2024 | 714.0 | 497.9 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 11.16 | 49.95 | -11.01 | 63.36 | 0.2106 | 714.0 | 497.7 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 8.43 | 50.05 | -10.92 | 76.05 | 0.1940 | -865.0 | -569.9 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 8.64 | 50.04 | -10.93 | 75.00 | 0.1949 | -810.0 | -592.1 | |
| 2.71 | 3.67 | 1.37 | 1.86 | 11.67 | 49.87 | -11.09 | 61.37 | 0.2157 | 980.2 | 786.6 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 10.01 | 49.84 | -11.13 | 68.67 | 0.2049 | 934.0 | 676.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 8.51 | 49.67 | -11.29 | 76.05 | 0.2005 | -812.0 | -606.4 | |
| 5.16 | 43.79 | 2.61 | 22.21 | 10.43 | 49.58 | -11.39 | 67.23 | 0.2116 | 1054.1 | 147.0 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 9.59 | 49.52 | -11.45 | 71.13 | 0.2078 | -844.0 | -620.8 | |
| 4.20 | -38.00 | 2.13 | -38.00 | 10.24 | 49.34 | -11.63 | 68.44 | 0.2143 | 928.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.79 | 49.26 | -11.71 | 70.57 | 0.2130 | -655.0 | -450.7 | |
| 4.46 | -38.00 | 2.27 | -38.00 | 10.68 | 48.85 | -12.11 | 67.31 | 0.2245 | -1051.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 8.23 | 48.94 | -12.02 | 78.11 | 0.2117 | -961.0 | -742.7 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 10.26 | 48.81 | -12.16 | 69.16 | 0.2228 | -946.0 | -788.1 | |
| 1.75 | 4.54 | 0.89 | 2.31 | 8.85 | 48.58 | -12.39 | 75.61 | 0.2198 | -850.5 | -690.6 | |
| 0.00 | 5.59 | 0.00 | 2.84 | 7.27 | 48.63 | -12.34 | 82.81 | 0.2146 | -313.0 | -281.9 | |
| 1.66 | 13.90 | 0.85 | 7.09 | 9.61 | 47.68 | -13.28 | 73.31 | 0.2376 | 1022.3 | 789.0 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 8.74 | 47.65 | -13.31 | 76.94 | 0.2347 | 895.0 | 726.8 | |
| 0.00 | 2.10 | 0.00 | 1.07 | 8.41 | 47.64 | -13.33 | 78.34 | 0.2340 | 1021.0 | 810.9 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 10.30 | 47.56 | -13.41 | 70.69 | 0.2428 | 788.0 | 618.2 | |
| 1.22 | -47.00 | 0.62 | -47.00 | 9.51 | 47.50 | -13.47 | 73.88 | 0.2402 | 1069.4 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.47 | 9.07 | 47.52 | -13.45 | 75.70 | 0.2381 | 454.0 | 580.3 | |
| 3.23 | -47.00 | 1.65 | -47.00 | 9.66 | 47.31 | -13.66 | 73.50 | 0.2439 | 1092.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 10.50 | 47.15 | -13.82 | 70.41 | 0.2505 | 834.0 | 652.9 | |
| 1.84 | 3.23 | 0.94 | 1.65 | 10.79 | 47.07 | -13.90 | 69.37 | 0.2532 | 993.3 | 849.5 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 10.73 | 46.82 | -14.15 | 69.92 | 0.2568 | 1001.0 | 764.3 | |
| 5.33 | 14.60 | 2.73 | 7.47 | 9.71 | 46.84 | -14.13 | 73.77 | 0.2517 | 1052.7 | 810.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 11.06 | 46.74 | -14.22 | 68.81 | 0.2598 | 1036.0 | 843.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 11.02 | 46.49 | -14.47 | 69.24 | 0.2635 | 902.0 | 705.8 | |
| 0.00 | 3.67 | 0.00 | 1.89 | 11.62 | 46.43 | -14.54 | 67.19 | 0.2679 | 1009.0 | 801.8 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 11.35 | 46.35 | -14.62 | 68.25 | 0.2676 | 1081.0 | 894.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 11.28 | 46.20 | -14.77 | 68.66 | 0.2696 | 995.0 | 762.2 | |
| 6.90 | 39.15 | 3.56 | 20.18 | 11.94 | 46.10 | -14.87 | 66.50 | 0.2750 | 1200.6 | 759.5 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 11.31 | 46.01 | -14.96 | 68.80 | 0.2728 | 835.0 | 763.8 | |
| 0.61 | -63.00 | 0.32 | -63.00 | 12.03 | 45.87 | -15.10 | 66.51 | 0.2790 | 1134.3 | 999999 | |
| 1.84 | -63.00 | 0.95 | -63.00 | 11.69 | 45.86 | -15.11 | 67.64 | 0.2772 | 947.3 | 999999 | |
| 4.98 | -63.00 | 2.57 | -63.00 | 12.23 | 45.80 | -15.17 | 65.91 | 0.2814 | 882.2 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 8.84 | 45.75 | -15.22 | 77.94 | 0.2665 | 840.0 | 696.6 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 8.60 | 45.66 | -15.30 | 78.89 | 0.2672 | 644.0 | 749.2 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 11.95 | 45.46 | -15.50 | 67.25 | 0.2848 | 819.0 | 635.0 | |
| 0.00 | 2.71 | 0.00 | 1.40 | 11.07 | 44.85 | -16.12 | 70.86 | 0.2897 | 981.0 | 815.7 | |
| 11.62 | 37.84 | 6.03 | 19.65 | 11.05 | 44.28 | -16.69 | 71.46 | 0.2986 | 1136.0 | 404.5 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 9.04 | 44.32 | -16.65 | 78.10 | 0.2904 | 924.0 | 701.9 | |
| 0.00 | 11.71 | 0.00 | 6.09 | 11.46 | 44.06 | -16.91 | 70.33 | 0.3040 | 942.0 | 696.5 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 9.35 | 43.48 | -17.48 | 77.57 | 0.3049 | 844.0 | 660.4 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 9.53 | 39.09 | -21.88 | 79.05 | 0.3759 | 839.0 | 646.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
