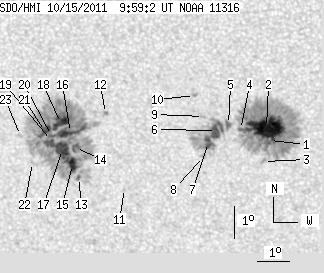

SDO HMI 2011-10-15 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.61 | 738.39 | 74.72 | 392.65 | -12.00 | 49.12 | -11.30 | 148.40 | 0.3637 | 91.6 | -41.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 276.05 | 0.41 | 144.79 | -12.11 | 52.68 | -7.73 | 156.84 | 0.3361 | 666.7 | 432.1 | |
| 48.59 | -1.00 | 25.49 | -1.00 | -11.70 | 52.60 | -7.82 | 156.12 | 0.3304 | 1267.5 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.29 | -12.77 | 52.48 | -7.94 | 157.08 | 0.3474 | 497.0 | 302.4 | |
| 1.49 | -1.00 | 0.78 | -1.00 | -11.77 | 51.80 | -8.62 | 154.08 | 0.3371 | 752.4 | 999999 | |
| 3.23 | 72.88 | 1.70 | 38.48 | -11.62 | 51.43 | -8.99 | 152.93 | 0.3376 | 952.1 | 391.9 | |
| 13.37 | -5.00 | 7.05 | -5.00 | -11.82 | 51.06 | -9.36 | 152.23 | 0.3433 | 1027.8 | 999999 | |
| 6.29 | -5.00 | 3.33 | -5.00 | -12.20 | 50.79 | -9.62 | 152.10 | 0.3508 | 886.2 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.71 | -12.64 | 50.62 | -9.80 | 152.28 | 0.3585 | 755.0 | 574.6 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -11.39 | 50.67 | -9.75 | 150.64 | 0.3401 | 707.0 | 576.4 | |
| 0.00 | 1.57 | 0.00 | 0.83 | -10.74 | 50.41 | -10.01 | 149.00 | 0.3329 | 887.0 | 778.3 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -13.71 | 48.10 | -12.32 | 148.08 | 0.3936 | -665.0 | -535.0 | |
| 0.00 | 2.53 | 0.00 | 1.35 | -11.36 | 47.62 | -12.80 | 143.51 | 0.3667 | 457.0 | 199.4 | |
| 1.57 | 373.22 | 0.85 | 200.73 | -13.39 | 46.67 | -13.75 | 144.73 | 0.4022 | -701.2 | -464.9 | |
| 4.63 | -13.00 | 2.49 | -13.00 | -12.45 | 46.63 | -13.79 | 143.21 | 0.3904 | -1041.2 | 999999 | |
| 6.55 | -13.00 | 3.54 | -13.00 | -12.99 | 46.50 | -13.92 | 143.79 | 0.3985 | -1040.1 | 999999 | |
| 14.86 | -13.00 | 7.97 | -13.00 | -11.98 | 46.49 | -13.93 | 142.20 | 0.3857 | -1151.5 | 999999 | |
| 15.38 | -13.00 | 8.29 | -13.00 | -12.52 | 46.21 | -14.21 | 142.51 | 0.3953 | -1117.6 | 999999 | |
| 12.58 | -13.00 | 6.75 | -13.00 | -11.67 | 46.20 | -14.22 | 141.10 | 0.3849 | -1267.8 | 999999 | |
| 1.14 | -13.00 | 0.61 | -13.00 | -12.25 | 45.88 | -14.54 | 141.43 | 0.3952 | -974.6 | 999999 | |
| 2.36 | -13.00 | 1.27 | -13.00 | -12.09 | 45.89 | -14.53 | 141.19 | 0.3931 | -1013.3 | 999999 | |
| 7.78 | -13.00 | 4.19 | -13.00 | -11.97 | 45.71 | -14.71 | 140.64 | 0.3935 | -946.0 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.00 | -12.96 | 45.24 | -15.18 | 141.35 | 0.4104 | -590.0 | -451.2 | |
| 0.00 | 1.57 | 0.00 | 0.85 | -12.12 | 44.91 | -15.51 | 139.39 | 0.4035 | -315.0 | -253.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
