SDO HMI 2011-10-15 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.02 | 68.42 | 14.19 | 73.94 | -14.58 | 119.74 | 59.87 | 250.27 | 0.8910 | 322.1 | 257.2 | |
|
previous
or next observation for the same group /

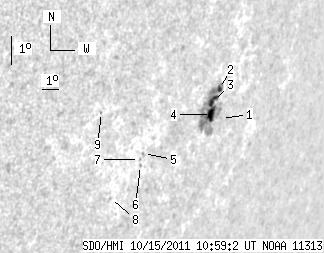

back to the solar disc SDO HMI 2011-10-15 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.88 | -14.98 | 120.72 | 60.85 | 250.11 | 0.8990 | -217.0 | -246.2 | |
| 1.92 | 63.26 | 2.10 | 68.83 | -13.98 | 120.13 | 60.26 | 251.04 | 0.8928 | 460.5 | 312.9 | |
| 4.98 | -2.00 | 5.41 | -2.00 | -14.34 | 119.92 | 60.05 | 250.59 | 0.8919 | 763.8 | 999999 | |
| 6.12 | -2.00 | 6.68 | -2.00 | -14.79 | 120.00 | 60.13 | 250.13 | 0.8934 | 556.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.86 | -15.70 | 116.36 | 56.49 | 248.06 | 0.8674 | -337.0 | -321.7 | |
| 0.00 | 1.05 | 0.00 | 1.04 | -16.08 | 116.35 | 56.48 | 247.63 | 0.8683 | -383.0 | -296.5 | |
| 0.00 | 0.52 | 0.00 | 0.52 | -15.87 | 116.21 | 56.34 | 247.81 | 0.8666 | -302.0 | -329.8 | |
| 0.00 | 1.14 | 0.00 | 1.10 | -17.02 | 115.09 | 55.22 | 246.17 | 0.8606 | -469.0 | -360.8 | |
| 0.00 | 0.79 | 0.00 | 0.71 | -14.15 | 113.48 | 53.61 | 248.86 | 0.8390 | -608.0 | -506.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
