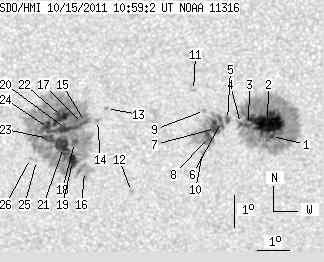

SDO HMI 2011-10-15 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 149.14 | 717.59 | 79.14 | 380.86 | -12.02 | 49.10 | -10.77 | 149.67 | 0.3596 | 7.1 | -29.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.36 | 273.65 | 1.24 | 143.35 | -12.13 | 52.75 | -7.12 | 158.53 | 0.3325 | 849.6 | 439.2 | |
| 45.00 | -1.00 | 23.57 | -1.00 | -11.69 | 52.64 | -7.23 | 157.71 | 0.3265 | 1277.7 | 999999 | |
| 2.62 | -1.00 | 1.38 | -1.00 | -11.76 | 52.05 | -7.82 | 156.19 | 0.3314 | 900.0 | 999999 | |
| 1.57 | -1.00 | 0.83 | -1.00 | -11.74 | 51.81 | -8.07 | 155.49 | 0.3326 | 691.9 | 999999 | |
| 3.67 | 63.17 | 1.93 | 33.29 | -11.62 | 51.41 | -8.46 | 154.28 | 0.3336 | 966.1 | 462.5 | |
| 4.46 | -5.00 | 2.34 | -5.00 | -11.68 | 51.22 | -8.65 | 153.87 | 0.3359 | 988.6 | 999999 | |
| 9.17 | -5.00 | 4.83 | -5.00 | -11.91 | 51.03 | -8.84 | 153.67 | 0.3406 | 990.8 | 999999 | |
| 6.47 | -5.00 | 3.41 | -5.00 | -12.19 | 50.80 | -9.07 | 153.47 | 0.3465 | 838.4 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -11.35 | 50.71 | -9.16 | 152.07 | 0.3348 | 815.0 | 638.2 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -12.67 | 50.60 | -9.27 | 153.58 | 0.3549 | 747.0 | 608.2 | |
| 0.00 | 2.01 | 0.00 | 1.05 | -10.73 | 50.39 | -9.48 | 150.32 | 0.3284 | 881.0 | 694.4 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -13.95 | 48.33 | -11.55 | 150.03 | 0.3905 | -917.0 | -679.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -11.34 | 47.67 | -12.21 | 144.77 | 0.3609 | 558.0 | 401.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -11.73 | 47.37 | -12.50 | 144.73 | 0.3687 | -714.0 | -518.7 | |
| 0.61 | 352.81 | 0.33 | 189.24 | -11.80 | 46.99 | -12.88 | 144.04 | 0.3733 | -948.7 | -446.3 | |
| 0.00 | 16.16 | 0.00 | 8.71 | -13.34 | 46.88 | -12.99 | 146.17 | 0.3946 | -267.0 | -422.5 | |
| 1.31 | -15.00 | 0.70 | -15.00 | -11.83 | 46.89 | -12.98 | 143.89 | 0.3746 | -899.3 | 999999 | |
| 2.97 | -15.00 | 1.59 | -15.00 | -12.44 | 46.61 | -13.26 | 144.26 | 0.3851 | -1089.7 | 999999 | |
| 7.86 | -15.00 | 4.23 | -15.00 | -13.04 | 46.52 | -13.36 | 144.98 | 0.3939 | -977.4 | 999999 | |
| 11.01 | -15.00 | 5.90 | -15.00 | -12.00 | 46.35 | -13.52 | 143.04 | 0.3820 | -1223.7 | 999999 | |
| 17.82 | -15.00 | 9.58 | -15.00 | -12.60 | 46.26 | -13.61 | 143.80 | 0.3906 | -1081.2 | 999999 | |
| 14.94 | -15.00 | 7.99 | -15.00 | -11.63 | 46.24 | -13.63 | 142.22 | 0.3783 | -1255.2 | 999999 | |
| 6.64 | -15.00 | 3.57 | -15.00 | -12.33 | 45.80 | -14.07 | 142.46 | 0.3916 | -862.4 | 999999 | |
| 10.66 | -15.00 | 5.72 | -15.00 | -11.99 | 45.79 | -14.09 | 141.88 | 0.3873 | -976.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.04 | 45.38 | -14.49 | 142.75 | 0.4046 | -598.0 | -480.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -12.98 | 45.19 | -14.68 | 142.31 | 0.4056 | -649.0 | -517.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
