SDO HMI 2011-10-15 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.45 | 494.37 | 65.83 | 249.70 | 10.34 | 50.22 | -9.65 | 63.15 | 0.1853 | -2.3 | 7.6 | |
|
previous
or next observation for the same group /

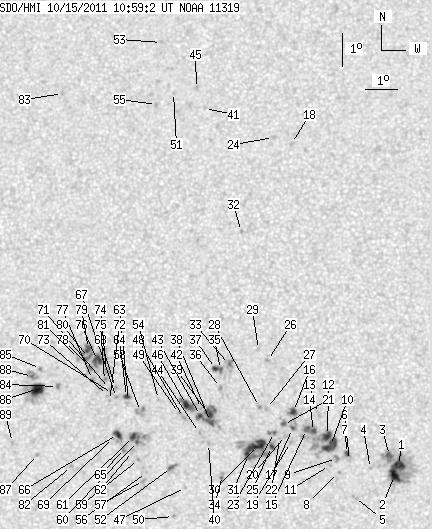

back to the solar disc SDO HMI 2011-10-15 10:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.74 | 80.21 | 4.35 | 39.90 | 8.93 | 55.44 | -4.43 | 54.78 | 0.0939 | -1276.1 | -534.4 | |
| 8.65 | -1.00 | 4.30 | -1.00 | 8.63 | 55.32 | -4.55 | 58.17 | 0.0927 | -1168.0 | 999999 | |
| 2.62 | -1.00 | 1.30 | -1.00 | 9.23 | 55.16 | -4.71 | 53.89 | 0.1008 | -945.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 8.83 | 54.59 | -5.28 | 60.08 | 0.1054 | -766.0 | -570.6 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 7.96 | 54.12 | -5.75 | 69.46 | 0.1065 | -773.0 | -643.9 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 9.07 | 53.95 | -5.92 | 60.99 | 0.1170 | -911.0 | -577.9 | |
| 2.10 | 3.32 | 1.05 | 1.66 | 9.28 | 53.89 | -5.99 | 59.70 | 0.1198 | -1062.9 | -856.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 8.70 | 53.62 | -6.25 | 64.98 | 0.1193 | -886.0 | -727.2 | |
| 0.00 | 3.32 | 0.00 | 1.66 | 9.12 | 53.55 | -6.32 | 62.10 | 0.1235 | -1045.0 | -865.8 | |
| 11.53 | 67.01 | 5.76 | 33.51 | 9.51 | 53.36 | -6.51 | 60.09 | 0.1296 | -1170.2 | -736.2 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 8.91 | 53.34 | -6.53 | 64.37 | 0.1251 | -928.0 | -770.2 | |
| 5.33 | -10.00 | 2.66 | -10.00 | 9.81 | 53.27 | -6.61 | 58.48 | 0.1336 | -1072.1 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.36 | 10.46 | 52.98 | -6.89 | 55.54 | 0.1438 | -691.0 | -573.7 | |
| 2.62 | -10.00 | 1.31 | -10.00 | 9.92 | 52.84 | -7.04 | 59.31 | 0.1410 | -1120.7 | 999999 | |
| 3.41 | -10.00 | 1.71 | -10.00 | 9.98 | 52.62 | -7.25 | 59.69 | 0.1447 | -1005.0 | 999999 | |
| 3.58 | 16.16 | 1.80 | 8.10 | 10.51 | 52.21 | -7.66 | 57.96 | 0.1554 | -1044.9 | -683.8 | |
| 1.14 | -16.00 | 0.57 | -16.00 | 10.00 | 52.19 | -7.68 | 60.92 | 0.1513 | -924.3 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.08 | 18.62 | 51.86 | -8.02 | 30.78 | 0.2594 | -728.0 | -656.1 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 9.58 | 52.14 | -7.73 | 63.59 | 0.1488 | -740.0 | -531.0 | |
| 0.00 | 3.06 | 0.00 | 1.53 | 9.79 | 51.98 | -7.89 | 62.79 | 0.1528 | -793.0 | -692.4 | |
| 2.01 | 4.98 | 1.01 | 2.50 | 10.12 | 51.91 | -7.96 | 61.09 | 0.1564 | -815.4 | -585.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.70 | 51.80 | -8.07 | 63.84 | 0.1549 | -863.0 | -617.7 | |
| 0.44 | 3.32 | 0.22 | 1.67 | 9.88 | 51.64 | -8.23 | 63.24 | 0.1586 | -1013.0 | -751.5 | |
| 0.00 | 2.01 | 0.00 | 1.03 | 18.80 | 51.27 | -8.60 | 32.18 | 0.2670 | -776.0 | -556.3 | |
| 1.83 | 49.98 | 0.92 | 25.09 | 9.46 | 51.56 | -8.31 | 65.89 | 0.1569 | -989.7 | -52.0 | |
| 0.00 | 1.92 | 0.00 | 0.97 | 12.03 | 51.37 | -8.51 | 53.09 | 0.1817 | -926.0 | -746.4 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 10.59 | 51.38 | -8.49 | 60.06 | 0.1683 | -536.0 | -356.6 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 10.65 | 51.16 | -8.71 | 60.37 | 0.1720 | -835.0 | -732.0 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 12.36 | 51.08 | -8.79 | 52.55 | 0.1890 | -700.0 | -471.8 | |
| 12.06 | -25.00 | 6.05 | -25.00 | 9.48 | 51.13 | -8.74 | 66.77 | 0.1638 | -910.3 | 999999 | |
| 5.50 | -25.00 | 2.76 | -25.00 | 9.21 | 50.86 | -9.01 | 68.90 | 0.1664 | 752.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 15.91 | 50.40 | -9.47 | 41.97 | 0.2377 | 884.0 | 653.7 | |
| 1.14 | 9.17 | 0.57 | 4.63 | 11.89 | 50.20 | -9.68 | 57.06 | 0.1969 | 861.5 | 628.0 | |
| 0.00 | 2.71 | 0.00 | 1.36 | 8.56 | 50.08 | -9.79 | 73.85 | 0.1758 | -820.0 | -714.9 | |
| 0.44 | 5.33 | 0.22 | 2.69 | 11.74 | 49.92 | -9.95 | 58.43 | 0.1995 | 1129.6 | 895.0 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 11.20 | 49.94 | -9.93 | 60.79 | 0.1947 | 974.0 | 643.7 | |
| 2.45 | -35.00 | 1.24 | -35.00 | 11.77 | 49.77 | -10.11 | 58.69 | 0.2020 | 903.0 | 999999 | |
| 2.01 | 27.70 | 1.01 | 13.98 | 10.17 | 49.67 | -10.20 | 66.22 | 0.1914 | 1230.9 | 827.9 | |
| 4.89 | -38.00 | 2.47 | -38.00 | 10.41 | 49.60 | -10.27 | 65.21 | 0.1941 | 1102.4 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 9.51 | 49.63 | -10.25 | 69.56 | 0.1881 | -792.0 | -590.8 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 19.65 | 49.01 | -10.87 | 36.48 | 0.2999 | 699.0 | 496.9 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 10.56 | 49.38 | -10.50 | 64.97 | 0.1985 | 135.0 | 242.6 | |
| 1.83 | -38.00 | 0.93 | -38.00 | 10.35 | 49.35 | -10.52 | 66.00 | 0.1975 | 952.0 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 9.84 | 49.34 | -10.53 | 68.46 | 0.1945 | -527.0 | -353.1 | |
| 0.00 | 2.10 | 0.00 | 1.09 | 20.26 | 48.70 | -11.17 | 35.95 | 0.3109 | 950.0 | 719.9 | |
| 3.93 | 12.76 | 1.99 | 6.45 | 10.67 | 48.91 | -10.96 | 65.37 | 0.2066 | -1087.2 | -514.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 8.19 | 48.96 | -10.91 | 77.25 | 0.1930 | -676.0 | -435.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 10.28 | 48.83 | -11.04 | 67.28 | 0.2053 | -902.0 | -787.8 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 10.40 | 48.70 | -11.17 | 66.97 | 0.2080 | -758.0 | -503.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 7.31 | 48.61 | -11.26 | 81.98 | 0.1965 | -868.0 | -715.7 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 20.12 | 47.97 | -11.91 | 37.94 | 0.3164 | 715.0 | 507.4 | |
| 2.71 | 4.11 | 1.37 | 2.08 | 8.78 | 48.51 | -11.36 | 74.82 | 0.2027 | -773.8 | -765.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 21.66 | 47.45 | -12.43 | 36.07 | 0.3411 | 788.0 | 631.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 10.80 | 48.03 | -11.84 | 66.33 | 0.2210 | 661.0 | 485.0 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 19.74 | 47.44 | -12.43 | 39.91 | 0.3171 | 865.0 | 687.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 8.61 | 47.74 | -12.13 | 76.41 | 0.2147 | 909.0 | 684.0 | |
| 0.00 | 2.10 | 0.00 | 1.06 | 8.37 | 47.66 | -12.21 | 77.59 | 0.2153 | 892.0 | 721.0 | |
| 0.00 | 7.25 | 0.00 | 3.69 | 10.43 | 47.49 | -12.38 | 68.74 | 0.2273 | 1007.0 | 827.8 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 8.99 | 47.48 | -12.39 | 74.94 | 0.2205 | 882.0 | 715.0 | |
| 1.31 | 18.61 | 0.67 | 9.45 | 9.53 | 47.43 | -12.44 | 72.64 | 0.2236 | 1043.9 | 779.2 | |
| 3.06 | -60.00 | 1.55 | -60.00 | 9.68 | 47.30 | -12.57 | 72.17 | 0.2264 | 1054.3 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.55 | 9.23 | 47.29 | -12.58 | 74.12 | 0.2246 | 867.0 | 658.7 | |
| 0.00 | 2.97 | 0.00 | 1.51 | 10.75 | 47.10 | -12.77 | 67.99 | 0.2353 | 436.0 | 520.4 | |
| 2.62 | 3.32 | 1.34 | 1.69 | 10.87 | 47.03 | -12.84 | 67.61 | 0.2371 | 941.8 | 723.2 | |
| 0.00 | 3.32 | 0.00 | 1.69 | 9.31 | 47.04 | -12.84 | 74.03 | 0.2291 | 936.0 | 847.1 | |
| 4.37 | 7.69 | 2.23 | 3.92 | 9.73 | 46.80 | -13.07 | 72.55 | 0.2347 | 947.3 | 762.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 10.83 | 46.72 | -13.15 | 68.20 | 0.2417 | 980.0 | 786.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 11.13 | 46.68 | -13.19 | 67.10 | 0.2442 | 927.0 | 808.9 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 9.63 | 46.68 | -13.19 | 73.07 | 0.2362 | 441.0 | 446.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 10.95 | 46.59 | -13.28 | 67.93 | 0.2444 | 875.0 | 624.3 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 11.10 | 46.49 | -13.38 | 67.50 | 0.2469 | 1017.0 | 819.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.74 | 46.51 | -13.36 | 68.86 | 0.2446 | 715.0 | 592.8 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 10.89 | 46.44 | -13.43 | 68.38 | 0.2465 | 872.0 | 719.7 | |
| 0.00 | 4.11 | 0.00 | 2.10 | 11.61 | 46.37 | -13.50 | 65.77 | 0.2519 | 978.0 | 801.9 | |
| 0.00 | 2.80 | 0.00 | 1.43 | 11.34 | 46.32 | -13.55 | 66.85 | 0.2509 | 1015.0 | 830.8 | |
| 6.82 | 40.72 | 3.49 | 20.89 | 11.93 | 46.07 | -13.80 | 65.03 | 0.2586 | 1145.4 | 643.7 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 11.36 | 45.95 | -13.92 | 67.29 | 0.2569 | 961.0 | 858.1 | |
| 1.22 | -76.00 | 0.63 | -76.00 | 11.69 | 45.90 | -13.97 | 66.16 | 0.2597 | 988.2 | 999999 | |
| 4.19 | -76.00 | 2.15 | -76.00 | 12.28 | 45.77 | -14.10 | 64.23 | 0.2655 | 825.7 | 999999 | |
| 3.93 | -76.00 | 2.02 | -76.00 | 12.01 | 45.79 | -14.08 | 65.15 | 0.2635 | 944.0 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.57 | 11.98 | 45.47 | -14.40 | 65.72 | 0.2680 | 776.0 | 569.3 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 8.74 | 45.41 | -14.46 | 77.80 | 0.2537 | 853.0 | 663.4 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 20.01 | 44.34 | -15.53 | 45.42 | 0.3548 | 813.0 | 695.1 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 11.12 | 44.86 | -15.01 | 69.49 | 0.2726 | 1000.0 | 821.7 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 11.65 | 44.29 | -15.58 | 68.34 | 0.2843 | 777.0 | 745.7 | |
| 10.57 | 31.02 | 5.46 | 16.01 | 11.04 | 44.23 | -15.64 | 70.43 | 0.2821 | 1084.5 | 490.7 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 9.07 | 44.33 | -15.54 | 77.30 | 0.2725 | 895.0 | 680.4 | |
| 1.40 | 7.34 | 0.72 | 3.79 | 11.40 | 44.05 | -15.82 | 69.43 | 0.2867 | 815.1 | 684.4 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 9.40 | 43.52 | -16.35 | 76.65 | 0.2867 | 828.0 | 732.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
