SDO HMI 2011-10-15 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.57 | 729.54 | 59.46 | 385.28 | -12.03 | 49.03 | -9.19 | 153.51 | 0.3476 | -12.7 | -19.6 | |
|
previous
or next observation for the same group /

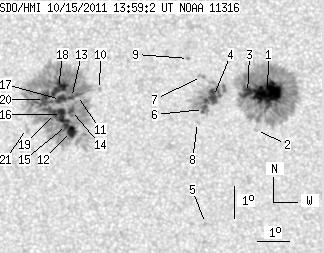

back to the solar disc SDO HMI 2011-10-15 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.07 | 272.64 | 18.83 | 142.37 | -11.74 | 52.68 | -5.54 | 162.60 | 0.3176 | 1330.6 | 463.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.91 | 52.32 | -5.91 | 162.65 | 0.3379 | 572.0 | 529.2 | |
| 3.23 | -1.00 | 1.69 | -1.00 | -11.71 | 52.07 | -6.15 | 160.79 | 0.3204 | 1046.6 | 999999 | |
| 9.08 | 61.48 | 4.76 | 32.25 | -11.85 | 51.02 | -7.20 | 157.98 | 0.3287 | 1034.7 | 581.4 | |
| 0.00 | 1.48 | 0.00 | 0.80 | -15.89 | 50.64 | -7.58 | 161.05 | 0.3925 | 625.0 | 458.6 | |
| 3.76 | -4.00 | 1.97 | -4.00 | -12.27 | 50.70 | -7.52 | 157.58 | 0.3370 | 730.5 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.51 | -11.23 | 50.67 | -7.56 | 156.24 | 0.3215 | 815.0 | 674.3 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -12.68 | 50.51 | -7.72 | 157.53 | 0.3445 | 666.0 | 525.1 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -10.68 | 50.29 | -7.94 | 154.42 | 0.3157 | 888.0 | 713.5 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -11.69 | 47.50 | -10.72 | 148.71 | 0.3523 | -784.0 | -580.3 | |
| 1.31 | 382.59 | 0.70 | 203.85 | -11.89 | 46.81 | -11.41 | 147.40 | 0.3610 | -1106.3 | -459.3 | |
| 6.90 | -11.00 | 3.69 | -11.00 | -13.03 | 46.57 | -11.65 | 148.54 | 0.3787 | -1001.6 | 999999 | |
| 2.01 | -11.00 | 1.07 | -11.00 | -11.96 | 46.62 | -11.60 | 147.08 | 0.3636 | -1053.6 | 999999 | |
| 3.49 | -11.00 | 1.86 | -11.00 | -12.37 | 46.60 | -11.62 | 147.65 | 0.3693 | -1092.7 | 999999 | |
| 3.06 | -11.00 | 1.63 | -11.00 | -12.85 | 46.42 | -11.80 | 147.95 | 0.3774 | -1122.7 | 999999 | |
| 8.12 | -11.00 | 4.33 | -11.00 | -12.50 | 46.28 | -11.94 | 147.14 | 0.3739 | -1185.5 | 999999 | |
| 6.99 | -11.00 | 3.72 | -11.00 | -12.03 | 46.28 | -11.95 | 146.41 | 0.3676 | -1266.2 | 999999 | |
| 11.44 | -11.00 | 6.08 | -11.00 | -11.69 | 46.23 | -12.00 | 145.77 | 0.3635 | -1304.4 | 999999 | |
| 2.88 | -11.00 | 1.54 | -11.00 | -12.48 | 46.07 | -12.16 | 146.63 | 0.3755 | -1051.7 | 999999 | |
| 14.23 | -11.00 | 7.59 | -11.00 | -12.04 | 45.77 | -12.45 | 145.34 | 0.3723 | -962.3 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.74 | -12.97 | 45.16 | -13.06 | 145.47 | 0.3902 | -654.0 | -513.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
