SDO HMI 2011-10-15 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.16 | 184.61 | 17.12 | 116.67 | -26.68 | 37.20 | -21.03 | 148.93 | 0.6232 | 842.8 | 320.0 | |
|
previous
or next observation for the same group /

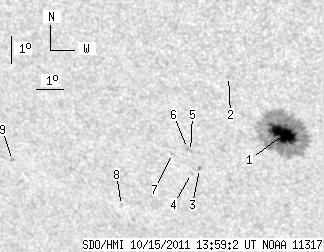

back to the solar disc SDO HMI 2011-10-15 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.16 | 175.01 | 17.12 | 110.31 | -26.63 | 37.46 | -20.77 | 149.17 | 0.6208 | 1058.7 | 324.8 | |
| 0.00 | 1.66 | 0.00 | 1.04 | -24.66 | 35.87 | -22.35 | 145.39 | 0.6108 | -149.0 | -270.3 | |
| 0.00 | 1.48 | 0.00 | 0.98 | -27.98 | 34.11 | -24.12 | 146.68 | 0.6592 | 803.0 | 670.5 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -28.18 | 33.76 | -24.46 | 146.50 | 0.6637 | 486.0 | 440.3 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -27.38 | 33.92 | -24.31 | 145.91 | 0.6544 | 745.0 | 615.9 | |
| 0.00 | 1.40 | 0.00 | 0.91 | -27.28 | 33.83 | -24.39 | 145.72 | 0.6540 | 737.0 | 642.2 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -27.49 | 33.22 | -25.00 | 145.28 | 0.6606 | 593.0 | 479.7 | |
| 0.00 | 1.48 | 0.00 | 1.02 | -29.48 | 30.75 | -27.47 | 144.75 | 0.6983 | 576.0 | 404.7 | |
| 0.00 | 1.31 | 0.00 | 0.92 | -28.06 | 26.92 | -31.31 | 139.92 | 0.7145 | -745.0 | -608.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
