SDO HMI 2011-10-15 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.52 | 27.86 | 6.45 | 18.78 | 20.00 | 99.70 | 41.47 | 293.35 | 0.6800 | -509.8 | -450.4 | |
|
previous
or next observation for the same group /

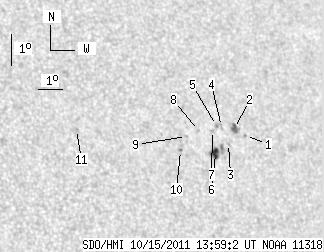

back to the solar disc SDO HMI 2011-10-15 13:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.66 | 20.07 | 101.03 | 42.81 | 293.01 | 0.6958 | 604.0 | 478.4 | |
| 4.63 | 5.85 | 3.17 | 4.00 | 20.31 | 100.64 | 42.41 | 293.48 | 0.6920 | -607.3 | -428.1 | |
| 0.00 | 1.48 | 0.00 | 1.01 | 19.87 | 100.23 | 42.01 | 292.98 | 0.6860 | -398.0 | -315.5 | |
| 0.00 | 2.01 | 0.00 | 1.36 | 20.41 | 100.11 | 41.89 | 293.78 | 0.6861 | -537.0 | -414.1 | |
| 0.00 | 1.48 | 0.00 | 1.01 | 20.45 | 99.91 | 41.69 | 293.91 | 0.6840 | -585.0 | -472.8 | |
| 4.89 | 10.83 | 3.28 | 7.28 | 19.60 | 99.59 | 41.37 | 292.80 | 0.6777 | -889.2 | -670.9 | |
| 0.00 | 1.22 | 0.00 | 0.82 | 20.31 | 99.69 | 41.47 | 293.78 | 0.6810 | -662.0 | -571.1 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 20.35 | 99.11 | 40.89 | 294.03 | 0.6743 | -618.0 | -505.1 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 20.20 | 98.56 | 40.33 | 294.01 | 0.6673 | -454.0 | -482.6 | |
| 0.00 | 1.40 | 0.00 | 0.92 | 19.79 | 98.18 | 39.95 | 293.54 | 0.6614 | -786.0 | -682.2 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 20.68 | 94.22 | 36.00 | 296.50 | 0.6167 | 402.0 | 464.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
