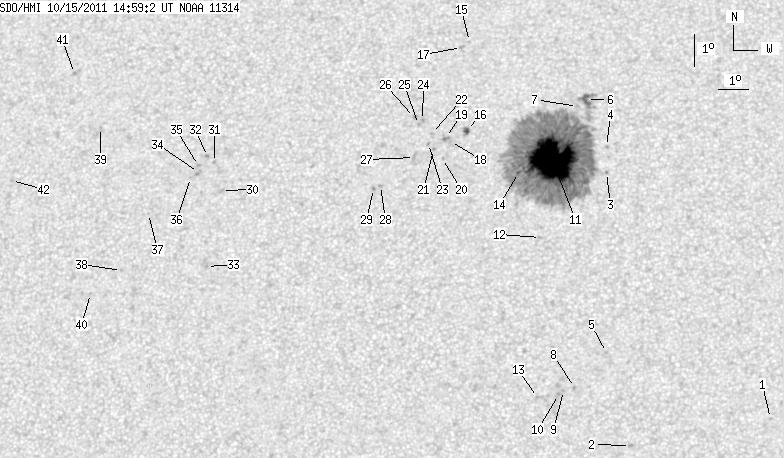

SDO HMI 2011-10-15 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.19 | 729.00 | 69.32 | 388.33 | 27.22 | 56.98 | -0.70 | 1.59 | 0.3675 | -924.3 | -395.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 14:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.63 | 19.11 | 64.32 | 6.65 | 334.57 | 0.2559 | -738.0 | -600.4 | |
| 0.00 | 1.83 | 0.00 | 0.93 | 18.32 | 59.87 | 2.19 | 350.44 | 0.2200 | -763.0 | -637.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 26.85 | 59.21 | 1.53 | 356.19 | 0.3607 | 212.0 | 175.7 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 27.68 | 59.22 | 1.54 | 356.33 | 0.3743 | -800.0 | -581.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 21.18 | 59.14 | 1.47 | 354.85 | 0.2667 | -789.0 | -540.9 | |
| 5.59 | 19.56 | 3.02 | 10.54 | 29.21 | 58.56 | 0.88 | 358.06 | 0.3984 | 871.8 | 207.6 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 28.98 | 58.25 | 0.57 | 358.73 | 0.3946 | 895.0 | 706.8 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 20.10 | 58.11 | 0.44 | 358.33 | 0.2474 | -911.0 | -719.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 20.01 | 57.76 | 0.09 | 359.67 | 0.2457 | -948.0 | -756.1 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 19.89 | 57.60 | -0.07 | 0.28 | 0.2436 | -949.0 | -742.9 | |
| 121.37 | 650.51 | 64.57 | 346.29 | 27.24 | 57.40 | -0.28 | 0.68 | 0.3662 | -1462.2 | -431.5 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 24.78 | 57.01 | -0.67 | 1.87 | 0.3260 | 689.0 | 478.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 19.80 | 56.94 | -0.74 | 2.88 | 0.2424 | -699.0 | -509.9 | |
| 1.31 | -11.00 | 0.70 | -11.00 | 26.85 | 56.26 | -1.42 | 3.52 | 0.3606 | -874.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 31.10 | 54.49 | -3.19 | 6.36 | 0.4312 | -625.0 | -531.4 | |
| 1.92 | 4.89 | 1.03 | 2.62 | 28.19 | 54.48 | -3.20 | 7.37 | 0.3851 | -972.0 | -777.6 | |
| 0.00 | 1.83 | 0.00 | 1.00 | 30.90 | 54.22 | -3.46 | 6.97 | 0.4285 | -727.0 | -581.2 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 27.84 | 53.95 | -3.73 | 8.73 | 0.3806 | -902.0 | -803.4 | |
| 0.00 | 3.32 | 0.00 | 1.78 | 27.96 | 53.77 | -3.90 | 9.07 | 0.3830 | -886.0 | -790.6 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 27.29 | 53.70 | -3.98 | 9.57 | 0.3724 | -762.0 | -640.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 27.57 | 53.38 | -4.29 | 10.16 | 0.3779 | -932.0 | -833.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 28.09 | 53.29 | -4.38 | 10.09 | 0.3863 | -839.0 | -677.4 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 27.77 | 53.20 | -4.47 | 10.46 | 0.3814 | -697.0 | -563.6 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 28.51 | 52.97 | -4.71 | 10.59 | 0.3939 | -874.0 | -763.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 28.38 | 52.84 | -4.84 | 10.95 | 0.3922 | -877.0 | -640.3 | |
| 0.00 | 2.10 | 0.00 | 1.13 | 28.60 | 52.69 | -4.98 | 11.15 | 0.3962 | -833.0 | -655.8 | |
| 0.00 | 4.45 | 0.00 | 2.38 | 27.31 | 52.75 | -4.92 | 11.77 | 0.3757 | -841.0 | -597.4 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 26.41 | 51.65 | -6.02 | 14.97 | 0.3655 | -818.0 | -671.0 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 26.31 | 51.42 | -6.25 | 15.59 | 0.3650 | -872.0 | -726.6 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 26.17 | 46.31 | -11.37 | 26.88 | 0.3930 | 880.0 | 591.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 27.06 | 45.98 | -11.70 | 26.41 | 0.4077 | 792.0 | 693.5 | |
| 0.00 | 1.83 | 0.00 | 1.00 | 27.25 | 45.71 | -11.96 | 26.67 | 0.4122 | 1057.0 | 821.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 23.76 | 46.03 | -11.64 | 30.85 | 0.3619 | 874.0 | 684.2 | |
| 0.00 | 2.27 | 0.00 | 1.23 | 26.73 | 45.46 | -12.21 | 27.80 | 0.4069 | 722.0 | 724.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 26.95 | 45.44 | -12.24 | 27.56 | 0.4101 | 743.0 | 603.1 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 26.56 | 45.21 | -12.47 | 28.49 | 0.4065 | 766.0 | 553.5 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 25.39 | 43.91 | -13.77 | 32.54 | 0.4015 | 666.0 | 555.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 23.57 | 43.20 | -14.47 | 36.71 | 0.3849 | 724.0 | 559.5 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 28.09 | 41.88 | -15.79 | 32.15 | 0.4530 | 812.0 | 622.1 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 22.82 | 42.24 | -15.43 | 39.71 | 0.3855 | 809.0 | 619.0 | |
| 0.00 | 1.92 | 0.00 | 1.09 | 29.82 | 40.68 | -17.00 | 31.74 | 0.4842 | 831.0 | 641.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 26.31 | 39.04 | -18.64 | 38.96 | 0.4575 | 808.0 | 636.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
