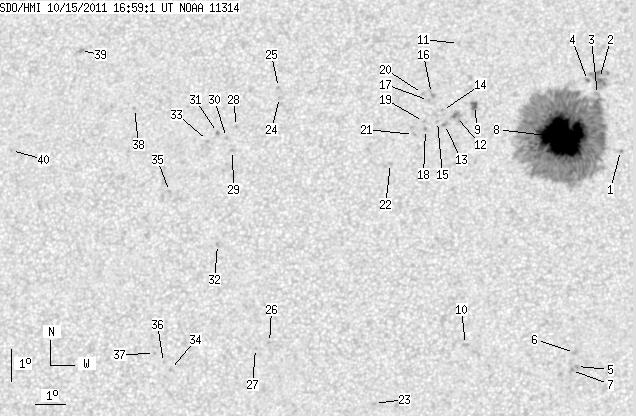

SDO HMI 2011-10-15 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.14 | 723.08 | 59.14 | 385.04 | 27.18 | 56.83 | 0.26 | 359.39 | 0.3672 | -945.9 | -410.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.65 | 26.81 | 59.28 | 2.71 | 353.29 | 0.3619 | 160.0 | 108.2 | |
| 0.00 | 20.17 | 0.00 | 10.88 | 29.14 | 58.62 | 2.05 | 355.49 | 0.3983 | 912.0 | 516.6 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 28.62 | 58.54 | 1.97 | 355.55 | 0.3899 | -204.0 | -217.2 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 29.08 | 58.21 | 1.63 | 356.38 | 0.3968 | 961.0 | 743.6 | |
| 0.00 | 1.83 | 0.00 | 0.94 | 20.04 | 57.74 | 1.17 | 355.53 | 0.2470 | -1044.0 | -804.0 | |
| 0.00 | 2.44 | 0.00 | 1.25 | 20.47 | 57.68 | 1.11 | 355.89 | 0.2542 | -905.0 | -681.9 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 19.92 | 57.58 | 1.01 | 356.10 | 0.2447 | -1062.0 | -823.1 | |
| 107.12 | 634.57 | 56.99 | 337.74 | 27.23 | 57.34 | 0.77 | 358.13 | 0.3664 | -1597.4 | -471.8 | |
| 4.02 | 7.42 | 2.15 | 3.98 | 28.26 | 54.36 | -2.21 | 5.10 | 0.3845 | -890.6 | -610.1 | |
| 0.00 | 2.53 | 0.00 | 1.30 | 20.72 | 54.20 | -2.37 | 8.57 | 0.2607 | -706.0 | -568.2 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 30.28 | 53.76 | -2.81 | 5.85 | 0.4176 | -752.0 | -601.4 | |
| 0.00 | 7.51 | 0.00 | 4.02 | 27.90 | 53.76 | -2.81 | 6.59 | 0.3797 | -1012.0 | -817.8 | |
| 0.00 | 2.71 | 0.00 | 1.45 | 27.64 | 53.36 | -3.21 | 7.61 | 0.3763 | -953.0 | -773.9 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 28.10 | 53.28 | -3.29 | 7.62 | 0.3837 | -651.0 | -537.6 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 27.74 | 53.12 | -3.45 | 8.13 | 0.3784 | -704.0 | -565.0 | |
| 0.00 | 2.88 | 0.00 | 1.55 | 28.64 | 52.89 | -3.69 | 8.28 | 0.3933 | -849.0 | -764.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 28.42 | 52.79 | -3.78 | 8.59 | 0.3899 | -806.0 | -656.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 27.48 | 52.72 | -3.85 | 9.17 | 0.3752 | -927.0 | -792.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 27.74 | 52.65 | -3.93 | 9.23 | 0.3795 | -791.0 | -625.7 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 28.64 | 52.58 | -3.99 | 8.96 | 0.3940 | -652.0 | -545.4 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 27.32 | 52.32 | -4.25 | 10.19 | 0.3736 | -817.0 | -734.6 | |
| 0.00 | 1.66 | 0.00 | 0.88 | 26.38 | 51.59 | -4.98 | 12.50 | 0.3611 | -882.0 | -636.6 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 18.88 | 51.35 | -5.22 | 20.88 | 0.2428 | -821.0 | -672.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 28.46 | 47.69 | -8.88 | 19.39 | 0.4104 | 743.0 | 634.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 28.78 | 47.63 | -8.94 | 19.22 | 0.4155 | 713.0 | 633.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 20.72 | 47.91 | -8.66 | 28.67 | 0.2950 | 839.0 | 708.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 20.53 | 47.47 | -9.10 | 30.21 | 0.2958 | 794.0 | 560.0 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 27.50 | 46.30 | -10.27 | 23.12 | 0.4044 | 786.0 | 509.4 | |
| 0.00 | 2.10 | 0.00 | 1.13 | 26.73 | 46.24 | -10.33 | 24.12 | 0.3937 | 773.0 | 526.0 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 27.14 | 46.00 | -10.58 | 24.13 | 0.4012 | 843.0 | 629.0 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 27.30 | 45.67 | -10.90 | 24.59 | 0.4056 | 881.0 | 757.6 | |
| 0.00 | 1.92 | 0.00 | 1.02 | 23.74 | 46.00 | -10.58 | 28.55 | 0.3531 | 812.0 | 620.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 27.03 | 45.36 | -11.21 | 25.51 | 0.4040 | 749.0 | 637.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 19.83 | 44.76 | -11.81 | 38.32 | 0.3119 | 965.0 | 760.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 25.38 | 44.23 | -12.34 | 29.85 | 0.3896 | 864.0 | 694.9 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 20.04 | 44.52 | -12.05 | 38.43 | 0.3170 | 745.0 | 584.5 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 20.31 | 44.21 | -12.37 | 38.56 | 0.3236 | 849.0 | 696.5 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 28.01 | 42.72 | -13.85 | 29.09 | 0.4364 | 772.0 | 617.3 | |
| 0.00 | 2.71 | 0.00 | 1.52 | 29.85 | 40.54 | -16.03 | 30.29 | 0.4768 | 752.0 | 724.6 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 26.55 | 38.64 | -17.94 | 37.59 | 0.4535 | 686.0 | 545.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
