SDO HMI 2011-10-15 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 153.20 | 543.48 | 76.69 | 272.31 | 10.21 | 49.93 | -6.64 | 51.21 | 0.1405 | -49.8 | 10.7 | |
|
previous
or next observation for the same group /

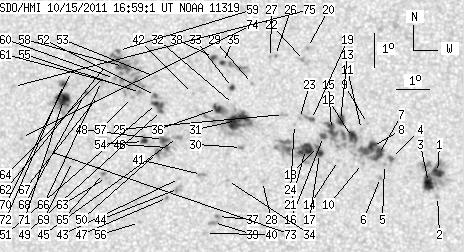

back to the solar disc SDO HMI 2011-10-15 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.90 | 58.05 | 3.42 | 28.80 | 8.85 | 55.63 | -0.94 | 17.30 | 0.0550 | -1267.4 | -645.6 | |
| 0.00 | 1.83 | 0.00 | 0.91 | 8.13 | 55.63 | -0.94 | 22.27 | 0.0431 | -295.0 | -333.0 | |
| 11.17 | -1.00 | 5.54 | -1.00 | 8.55 | 55.36 | -1.21 | 24.03 | 0.0517 | -1252.7 | 999999 | |
| 0.96 | 3.67 | 0.48 | 1.82 | 9.26 | 54.24 | -2.34 | 34.06 | 0.0722 | -1252.9 | -915.5 | |
| 0.00 | 1.40 | 0.00 | 0.69 | 9.08 | 54.02 | -2.55 | 37.89 | 0.0718 | -1135.0 | -882.9 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 8.69 | 53.91 | -2.67 | 42.81 | 0.0680 | -1020.0 | -810.2 | |
| 8.29 | 32.65 | 4.12 | 16.23 | 9.38 | 53.84 | -2.73 | 37.35 | 0.0779 | -1199.7 | -986.1 | |
| 3.67 | -7.00 | 1.82 | -7.00 | 9.62 | 53.66 | -2.92 | 37.32 | 0.0831 | -1183.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 10.31 | 53.50 | -3.07 | 34.15 | 0.0944 | -792.0 | -629.9 | |
| 0.00 | 1.66 | 0.00 | 0.82 | 9.11 | 53.36 | -3.21 | 44.20 | 0.0798 | -764.0 | -657.4 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 10.13 | 53.32 | -3.25 | 36.82 | 0.0937 | -753.0 | -541.7 | |
| 7.86 | 53.86 | 3.91 | 26.81 | 9.88 | 53.05 | -3.53 | 40.68 | 0.0934 | -1214.1 | -808.1 | |
| 6.29 | 7.25 | 3.13 | 3.61 | 10.39 | 52.68 | -3.90 | 40.11 | 0.1042 | -1051.4 | -795.5 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 9.19 | 52.63 | -3.94 | 49.25 | 0.0900 | -724.0 | -510.5 | |
| 8.73 | -12.00 | 4.35 | -12.00 | 10.12 | 52.41 | -4.17 | 43.77 | 0.1039 | -985.6 | 999999 | |
| 3.32 | -12.00 | 1.65 | -12.00 | 9.91 | 52.17 | -4.41 | 46.83 | 0.1043 | -935.8 | 999999 | |
| 3.32 | 61.37 | 1.65 | 30.58 | 9.40 | 52.05 | -4.52 | 51.38 | 0.1000 | -1118.8 | -215.8 | |
| 1.57 | -17.00 | 0.78 | -17.00 | 9.61 | 51.99 | -4.59 | 50.15 | 0.1032 | -1066.2 | 999999 | |
| 2.27 | 5.50 | 1.13 | 2.74 | 10.41 | 51.79 | -4.78 | 45.74 | 0.1150 | -853.4 | -728.0 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.57 | 51.63 | -4.94 | 35.60 | 0.1450 | -884.0 | -748.2 | |
| 11.35 | -17.00 | 5.65 | -17.00 | 9.51 | 51.62 | -4.95 | 52.95 | 0.1071 | -1063.9 | 999999 | |
| 0.00 | 6.11 | 0.00 | 3.06 | 12.18 | 51.55 | -5.02 | 37.73 | 0.1405 | -678.0 | -696.6 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 10.44 | 51.43 | -5.15 | 47.65 | 0.1199 | -797.0 | -661.3 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 10.26 | 51.28 | -5.30 | 49.61 | 0.1198 | -807.0 | -521.7 | |
| 0.00 | 2.79 | 0.00 | 1.40 | 10.56 | 50.94 | -5.64 | 49.49 | 0.1276 | -849.0 | -633.2 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.32 | 50.66 | -5.92 | 41.65 | 0.1522 | 879.0 | 759.7 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 12.26 | 50.50 | -6.07 | 42.65 | 0.1532 | 768.0 | 588.4 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 8.54 | 50.33 | -6.24 | 66.14 | 0.1181 | -961.0 | -813.9 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 11.48 | 49.97 | -6.60 | 48.81 | 0.1505 | 533.0 | 440.1 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 9.55 | 49.67 | -6.90 | 61.14 | 0.1359 | -992.0 | -781.9 | |
| 20.25 | 80.49 | 10.14 | 40.31 | 10.36 | 49.50 | -7.07 | 56.76 | 0.1454 | 1214.7 | 177.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 10.84 | 49.40 | -7.17 | 54.43 | 0.1514 | 128.0 | 89.1 | |
| 2.18 | 2.97 | 1.09 | 1.49 | 11.35 | 49.36 | -7.21 | 51.90 | 0.1572 | -753.5 | -789.6 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 8.56 | 49.27 | -7.31 | 69.08 | 0.1352 | -718.0 | -460.3 | |
| 1.83 | 14.49 | 0.92 | 7.27 | 12.09 | 49.03 | -7.54 | 49.51 | 0.1695 | 828.2 | 848.0 | |
| 5.94 | -31.00 | 2.98 | -31.00 | 10.71 | 48.91 | -7.66 | 56.83 | 0.1572 | -1049.1 | 999999 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 7.48 | 48.98 | -7.59 | 77.39 | 0.1348 | -1098.0 | -911.4 | |
| 2.18 | 3.84 | 1.10 | 1.93 | 12.24 | 48.75 | -7.82 | 49.86 | 0.1748 | 983.3 | 445.7 | |
| 0.00 | 3.49 | 0.00 | 1.75 | 7.30 | 48.86 | -7.71 | 78.87 | 0.1362 | -1095.0 | -885.5 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 6.97 | 48.63 | -7.95 | 81.53 | 0.1394 | -659.0 | -555.7 | |
| 0.00 | 2.62 | 0.00 | 1.31 | 8.73 | 48.47 | -8.10 | 69.82 | 0.1491 | -1005.0 | -847.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 11.15 | 48.13 | -8.44 | 57.02 | 0.1724 | -735.0 | -545.9 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 8.60 | 47.80 | -8.77 | 71.96 | 0.1593 | 666.0 | 482.6 | |
| 0.00 | 4.80 | 0.00 | 2.41 | 8.30 | 47.78 | -8.79 | 73.82 | 0.1583 | 998.0 | 852.3 | |
| 0.00 | 4.54 | 0.00 | 2.28 | 9.83 | 47.71 | -8.86 | 65.09 | 0.1681 | 1034.0 | 779.8 | |
| 1.75 | 20.34 | 0.88 | 10.23 | 9.52 | 47.41 | -9.16 | 67.43 | 0.1708 | 1069.1 | 779.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 8.03 | 47.45 | -9.12 | 75.98 | 0.1626 | 785.0 | 715.8 | |
| 4.71 | -46.00 | 2.37 | -46.00 | 9.76 | 47.28 | -9.29 | 66.42 | 0.1744 | 1081.3 | 999999 | |
| 1.13 | 15.36 | 0.57 | 7.74 | 10.63 | 47.19 | -9.38 | 62.16 | 0.1819 | 893.5 | 896.5 | |
| 3.84 | -46.00 | 1.93 | -46.00 | 9.37 | 47.11 | -9.46 | 68.88 | 0.1747 | 976.4 | 999999 | |
| 2.44 | -49.00 | 1.23 | -49.00 | 10.83 | 47.03 | -9.54 | 61.54 | 0.1860 | 1150.0 | 999999 | |
| 1.75 | -49.00 | 0.88 | -49.00 | 11.07 | 47.00 | -9.58 | 60.50 | 0.1885 | 1045.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 11.64 | 46.95 | -9.63 | 58.02 | 0.1940 | 785.0 | 559.8 | |
| 2.71 | 6.37 | 1.36 | 3.21 | 9.69 | 46.67 | -9.90 | 68.03 | 0.1837 | 943.6 | 728.5 | |
| 0.00 | 2.88 | 0.00 | 1.46 | 11.16 | 46.53 | -10.04 | 61.23 | 0.1961 | 1166.0 | 923.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 7.27 | 46.61 | -9.96 | 81.33 | 0.1744 | 814.0 | 585.5 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 11.00 | 46.29 | -10.29 | 62.47 | 0.1986 | 1002.0 | 748.2 | |
| 7.94 | 61.81 | 4.02 | 31.29 | 11.93 | 45.97 | -10.60 | 59.15 | 0.2106 | 1117.0 | 764.4 | |
| 1.66 | -58.00 | 0.84 | -58.00 | 12.40 | 45.80 | -10.77 | 57.60 | 0.2172 | 770.8 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 11.56 | 45.71 | -10.86 | 61.26 | 0.2116 | 868.0 | 692.7 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 11.41 | 45.68 | -10.89 | 61.96 | 0.2108 | 848.0 | 666.9 | |
| 0.00 | 1.75 | 0.00 | 0.89 | 11.98 | 45.44 | -11.13 | 60.11 | 0.2188 | 753.0 | 590.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 8.59 | 45.56 | -11.01 | 75.27 | 0.1961 | 748.0 | 680.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 11.65 | 45.43 | -11.15 | 61.50 | 0.2164 | 825.0 | 677.5 | |
| 1.13 | 1.40 | 0.57 | 0.71 | 8.71 | 45.47 | -11.11 | 74.80 | 0.1982 | 953.0 | 1005.7 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 11.46 | 45.31 | -11.26 | 62.49 | 0.2168 | 1019.0 | 798.6 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 11.04 | 45.23 | -11.34 | 64.42 | 0.2149 | 483.0 | 260.5 | |
| 0.52 | 2.71 | 0.27 | 1.37 | 11.12 | 44.82 | -11.75 | 64.81 | 0.2218 | 914.2 | 612.8 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 9.05 | 44.50 | -12.07 | 74.32 | 0.2155 | 874.0 | 701.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 11.74 | 44.36 | -12.21 | 63.13 | 0.2332 | 562.0 | 440.5 | |
| 12.48 | 28.37 | 6.35 | 14.44 | 10.90 | 44.15 | -12.42 | 66.85 | 0.2308 | 1145.9 | 510.1 | |
| 3.06 | 4.45 | 1.56 | 2.27 | 11.35 | 44.13 | -12.44 | 65.09 | 0.2340 | 1027.2 | 739.3 | |
| 0.00 | 1.83 | 0.00 | 0.93 | 9.33 | 43.78 | -12.80 | 73.87 | 0.2285 | 882.0 | 684.2 | |
| 0.00 | 1.83 | 0.00 | 0.94 | 9.73 | 42.89 | -13.68 | 73.18 | 0.2447 | 759.0 | 619.7 | |
| 0.00 | 1.83 | 0.00 | 0.94 | 11.25 | 42.57 | -14.00 | 67.75 | 0.2576 | 771.0 | 596.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
