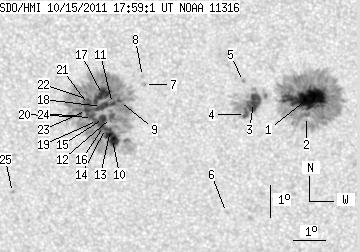

SDO HMI 2011-10-15 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.22 | 724.45 | 70.91 | 380.42 | -12.03 | 49.16 | -6.86 | 159.67 | 0.3325 | 149.4 | -61.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.08 | 289.29 | 28.67 | 150.60 | -11.72 | 52.62 | -3.40 | 169.12 | 0.3086 | 1321.2 | 412.5 | |
| 1.05 | -1.00 | 0.55 | -1.00 | -12.28 | 52.59 | -3.43 | 169.35 | 0.3180 | 652.2 | 999999 | |
| 15.71 | 51.07 | 8.20 | 26.67 | -11.86 | 50.97 | -5.05 | 164.17 | 0.3172 | 1080.8 | 499.2 | |
| 4.19 | -3.00 | 2.19 | -3.00 | -12.24 | 50.72 | -5.30 | 163.76 | 0.3244 | 756.6 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -11.20 | 50.68 | -5.34 | 162.67 | 0.3081 | 1022.0 | 944.9 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -15.35 | 50.05 | -5.97 | 164.49 | 0.3765 | 699.0 | 572.7 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -11.33 | 47.64 | -8.39 | 154.10 | 0.3288 | 594.0 | 235.9 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -11.08 | 47.58 | -8.44 | 153.61 | 0.3255 | 672.0 | 487.9 | |
| 1.22 | 376.32 | 0.64 | 199.03 | -11.88 | 46.85 | -9.17 | 152.78 | 0.3426 | -1088.6 | -466.6 | |
| 11.52 | -9.00 | 6.12 | -9.00 | -13.05 | 46.59 | -9.43 | 153.67 | 0.3615 | -1086.1 | 999999 | |
| 1.75 | -9.00 | 0.92 | -9.00 | -11.95 | 46.63 | -9.39 | 152.32 | 0.3452 | -1148.2 | 999999 | |
| 3.14 | -9.00 | 1.66 | -9.00 | -12.39 | 46.58 | -9.44 | 152.80 | 0.3519 | -1107.6 | 999999 | |
| 1.31 | -9.00 | 0.69 | -9.00 | -12.77 | 46.54 | -9.49 | 153.18 | 0.3578 | -1133.0 | 999999 | |
| 1.48 | -9.00 | 0.79 | -9.00 | -12.74 | 46.38 | -9.64 | 152.77 | 0.3585 | -1180.6 | 999999 | |
| 4.80 | -9.00 | 2.54 | -9.00 | -12.42 | 46.33 | -9.69 | 152.23 | 0.3543 | -1212.2 | 999999 | |
| 1.05 | -9.00 | 0.56 | -9.00 | -12.67 | 46.32 | -9.70 | 152.54 | 0.3581 | -1117.0 | 999999 | |
| 15.89 | -9.00 | 8.38 | -9.00 | -11.67 | 46.33 | -9.69 | 151.18 | 0.3435 | -1326.6 | 999999 | |
| 8.38 | -9.00 | 4.43 | -9.00 | -12.05 | 46.28 | -9.74 | 151.60 | 0.3493 | -1265.6 | 999999 | |
| 0.44 | -9.00 | 0.23 | -9.00 | -12.49 | 46.14 | -9.88 | 151.86 | 0.3567 | -1134.4 | 999999 | |
| 3.23 | -9.00 | 1.71 | -9.00 | -12.40 | 45.99 | -10.03 | 151.37 | 0.3566 | -981.2 | 999999 | |
| 1.05 | -9.00 | 0.55 | -9.00 | -11.99 | 45.88 | -10.14 | 150.54 | 0.3517 | -1226.2 | 999999 | |
| 0.70 | -9.00 | 0.37 | -9.00 | -11.83 | 45.89 | -10.13 | 150.33 | 0.3494 | -1120.0 | 999999 | |
| 1.75 | -9.00 | 0.92 | -9.00 | -12.18 | 45.81 | -10.21 | 150.64 | 0.3549 | -1016.0 | 999999 | |
| 1.48 | -9.00 | 0.79 | -9.00 | -12.34 | 45.59 | -10.43 | 150.34 | 0.3590 | -844.4 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -14.83 | 43.36 | -12.66 | 148.87 | 0.4115 | -837.0 | -700.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
