SDO HMI 2011-10-15 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148.67 | 731.47 | 77.84 | 382.99 | -12.07 | 49.02 | -5.35 | 164.00 | 0.3256 | -23.9 | -38.0 | |
|
previous
or next observation for the same group /

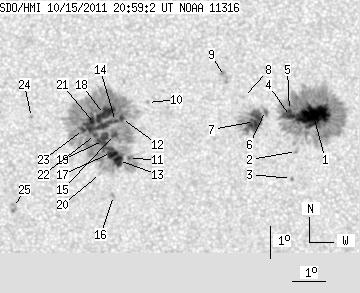

back to the solar disc SDO HMI 2011-10-15 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.21 | 276.04 | 22.46 | 143.48 | -11.71 | 52.74 | -1.63 | 174.74 | 0.3044 | 1379.8 | 452.3 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -12.85 | 52.21 | -2.15 | 173.48 | 0.3240 | 619.0 | 496.6 | |
| 0.00 | 1.57 | 0.00 | 0.83 | -13.70 | 52.05 | -2.31 | 173.31 | 0.3384 | -808.0 | -731.3 | |
| 3.14 | -1.00 | 1.63 | -1.00 | -11.75 | 52.04 | -2.33 | 172.51 | 0.3062 | 1103.4 | 999999 | |
| 1.13 | -1.00 | 0.59 | -1.00 | -11.56 | 52.01 | -2.36 | 172.33 | 0.3032 | 1150.6 | 999999 | |
| 0.00 | 3.49 | 0.00 | 1.82 | -11.56 | 51.27 | -3.09 | 169.99 | 0.3051 | 1138.0 | 937.6 | |
| 21.48 | 39.72 | 11.19 | 20.70 | -11.91 | 50.93 | -3.43 | 169.13 | 0.3118 | 1008.4 | 474.4 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -11.16 | 50.61 | -3.76 | 167.60 | 0.3007 | 1060.0 | 797.8 | |
| 0.00 | 5.24 | 0.00 | 2.71 | -10.51 | 50.04 | -4.33 | 165.23 | 0.2923 | 888.0 | 753.0 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.34 | 47.67 | -6.70 | 158.82 | 0.3178 | 617.0 | 409.7 | |
| 1.13 | 392.15 | 0.60 | 206.41 | -13.11 | 47.04 | -7.33 | 159.03 | 0.3487 | -824.3 | -434.3 | |
| 2.53 | -11.00 | 1.33 | -11.00 | -11.86 | 46.86 | -7.51 | 157.14 | 0.3306 | -1033.2 | 999999 | |
| 8.21 | -11.00 | 4.34 | -11.00 | -13.18 | 46.72 | -7.64 | 158.30 | 0.3516 | -968.4 | 999999 | |
| 1.83 | -11.00 | 0.96 | -11.00 | -11.95 | 46.67 | -7.70 | 156.75 | 0.3333 | -1144.8 | 999999 | |
| 2.97 | -11.00 | 1.56 | -11.00 | -12.36 | 46.63 | -7.74 | 157.12 | 0.3398 | -1112.8 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -14.29 | 46.53 | -7.83 | 158.97 | 0.3696 | -900.0 | -726.7 | |
| 8.21 | -11.00 | 4.34 | -11.00 | -12.93 | 46.51 | -7.85 | 157.48 | 0.3491 | -1174.2 | 999999 | |
| 15.36 | -11.00 | 8.06 | -11.00 | -11.74 | 46.34 | -8.03 | 155.58 | 0.3323 | -1347.0 | 999999 | |
| 12.92 | -11.00 | 6.81 | -11.00 | -12.56 | 46.28 | -8.08 | 156.44 | 0.3449 | -1099.9 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -13.60 | 46.15 | -8.21 | 157.31 | 0.3614 | -90.0 | -19.1 | |
| 21.13 | -11.00 | 11.12 | -11.00 | -12.06 | 46.05 | -8.32 | 155.23 | 0.3390 | -1150.0 | 999999 | |
| 2.36 | -11.00 | 1.24 | -11.00 | -12.37 | 46.04 | -8.33 | 155.59 | 0.3438 | -1026.8 | 999999 | |
| 3.06 | -11.00 | 1.61 | -11.00 | -12.22 | 45.67 | -8.69 | 154.46 | 0.3440 | -953.5 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -11.87 | 44.07 | -10.29 | 150.00 | 0.3512 | -778.0 | -624.5 | |
| 0.00 | 4.45 | 0.00 | 2.40 | -14.73 | 43.38 | -10.98 | 152.23 | 0.3970 | -653.0 | -755.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
