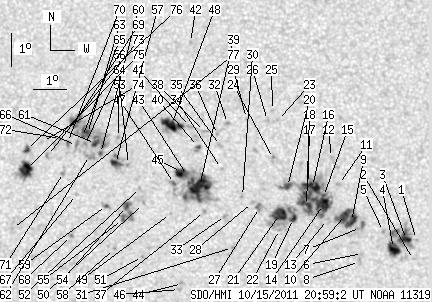

SDO HMI 2011-10-15 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.20 | 560.70 | 90.39 | 279.82 | 10.32 | 50.22 | -4.15 | 209.96 | 0.1130 | -21.2 | 14.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 20:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.65 | 8.76 | 56.08 | 1.71 | 329.74 | 0.0590 | -422.0 | -364.8 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 8.16 | 55.99 | 1.62 | 325.18 | 0.0493 | -606.0 | -511.4 | |
| 4.36 | 43.82 | 2.17 | 21.74 | 8.76 | 55.78 | 1.41 | 334.33 | 0.0565 | -1211.3 | -771.3 | |
| 10.56 | -3.00 | 5.24 | -3.00 | 8.49 | 55.38 | 1.02 | 339.08 | 0.0495 | -1224.6 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 9.00 | 55.08 | 0.72 | 347.29 | 0.0565 | -930.0 | -739.4 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 8.34 | 54.45 | 0.08 | 358.12 | 0.0436 | -506.0 | -516.1 | |
| 0.00 | 5.41 | 0.00 | 2.69 | 9.12 | 54.39 | 0.02 | 359.61 | 0.0572 | -722.0 | -832.6 | |
| 0.00 | 2.44 | 0.00 | 1.21 | 8.10 | 54.36 | -0.01 | 0.20 | 0.0394 | -695.0 | -726.0 | |
| 8.12 | 26.89 | 4.03 | 13.34 | 9.30 | 54.11 | -0.25 | 4.10 | 0.0605 | -1156.1 | -916.8 | |
| 8.38 | -9.00 | 4.16 | -9.00 | 9.51 | 53.93 | -0.43 | 6.66 | 0.0645 | -1180.3 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.00 | 10.40 | 53.72 | -0.65 | 7.95 | 0.0805 | -884.0 | -631.1 | |
| 0.00 | 1.83 | 0.00 | 0.91 | 11.21 | 53.50 | -0.86 | 8.96 | 0.0950 | -325.0 | -297.1 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 9.36 | 53.39 | -0.98 | 15.39 | 0.0637 | -921.0 | -740.1 | |
| 11.00 | 111.48 | 5.46 | 55.39 | 9.80 | 53.26 | -1.10 | 15.33 | 0.0718 | -1340.2 | -657.7 | |
| 1.48 | -14.00 | 0.74 | -14.00 | 10.04 | 53.26 | -1.10 | 14.50 | 0.0759 | -973.7 | 999999 | |
| 11.87 | -14.00 | 5.90 | -14.00 | 10.34 | 52.93 | -1.44 | 17.46 | 0.0825 | -1099.2 | 999999 | |
| 5.41 | -14.00 | 2.69 | -14.00 | 10.10 | 52.78 | -1.59 | 20.17 | 0.0794 | -985.8 | 999999 | |
| 7.94 | -14.00 | 3.95 | -14.00 | 9.77 | 52.75 | -1.61 | 22.09 | 0.0742 | -1136.0 | 999999 | |
| 4.10 | 45.48 | 2.04 | 22.59 | 9.38 | 52.36 | -2.01 | 29.27 | 0.0710 | -1114.6 | -343.6 | |
| 4.28 | -14.00 | 2.13 | -14.00 | 10.34 | 52.17 | -2.19 | 25.69 | 0.0873 | -946.1 | 999999 | |
| 13.18 | -19.00 | 6.55 | -19.00 | 9.50 | 51.93 | -2.43 | 33.29 | 0.0766 | -1023.0 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.91 | 9.05 | 51.94 | -2.43 | 36.81 | 0.0702 | 61.0 | -0.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 12.32 | 51.85 | -2.52 | 20.83 | 0.1212 | -955.0 | -742.1 | |
| 0.00 | 2.62 | 0.00 | 1.30 | 11.18 | 51.74 | -2.63 | 25.82 | 0.1037 | 701.0 | 617.9 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 12.62 | 51.69 | -2.67 | 21.09 | 0.1270 | -782.0 | -590.5 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 12.32 | 51.54 | -2.82 | 23.11 | 0.1231 | -968.0 | -659.7 | |
| 0.00 | 5.50 | 0.00 | 2.73 | 9.71 | 51.32 | -3.04 | 37.80 | 0.0857 | -750.0 | -619.4 | |
| 0.00 | 1.83 | 0.00 | 0.91 | 9.86 | 51.11 | -3.25 | 38.62 | 0.0900 | -623.0 | -441.6 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 12.37 | 50.90 | -3.47 | 27.43 | 0.1288 | 852.0 | 555.7 | |
| 0.00 | 0.61 | 0.00 | 0.30 | 10.03 | 50.80 | -3.56 | 39.90 | 0.0957 | -874.0 | -743.7 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 8.51 | 50.52 | -3.85 | 54.96 | 0.0814 | -979.0 | -802.3 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 12.22 | 50.32 | -4.05 | 31.81 | 0.1314 | 1066.0 | 741.0 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 9.46 | 50.29 | -4.07 | 47.92 | 0.0947 | 941.0 | 664.4 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 10.87 | 50.15 | -4.21 | 39.41 | 0.1140 | -645.0 | -431.0 | |
| 0.00 | 2.10 | 0.00 | 1.05 | 11.56 | 50.11 | -4.25 | 36.06 | 0.1239 | 781.0 | 642.2 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 11.89 | 50.02 | -4.35 | 35.12 | 0.1295 | 935.0 | 615.7 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 9.58 | 49.66 | -4.71 | 51.11 | 0.1045 | -893.0 | -561.9 | |
| 0.00 | 2.53 | 0.00 | 1.27 | 11.98 | 49.62 | -4.75 | 37.11 | 0.1348 | 759.0 | 554.1 | |
| 28.81 | 85.03 | 14.37 | 42.41 | 10.32 | 49.49 | -4.87 | 46.85 | 0.1150 | 1192.5 | 315.4 | |
| 1.48 | 3.93 | 0.74 | 1.96 | 11.52 | 49.44 | -4.92 | 40.29 | 0.1306 | -946.2 | -844.1 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 12.12 | 49.19 | -5.18 | 38.84 | 0.1414 | 563.0 | 456.9 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 14.65 | 49.13 | -5.23 | 29.91 | 0.1778 | 926.0 | 666.2 | |
| 0.52 | -39.00 | 0.26 | -39.00 | 10.65 | 49.12 | -5.24 | 46.89 | 0.1236 | 93.8 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.91 | 7.42 | 49.02 | -5.35 | 73.28 | 0.0969 | -651.0 | -709.5 | |
| 8.82 | -39.00 | 4.40 | -39.00 | 10.74 | 48.94 | -5.43 | 47.34 | 0.1269 | -900.7 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 7.24 | 48.93 | -5.44 | 75.31 | 0.0976 | -1088.0 | -799.7 | |
| 1.57 | 6.98 | 0.78 | 3.49 | 10.41 | 48.73 | -5.63 | 50.40 | 0.1259 | -778.6 | -535.0 | |
| 13.18 | 22.52 | 6.60 | 11.28 | 12.18 | 48.60 | -5.76 | 41.57 | 0.1486 | 1120.7 | 579.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.51 | 48.62 | -5.74 | 56.93 | 0.1183 | -762.0 | -566.5 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 9.80 | 47.79 | -6.57 | 58.36 | 0.1330 | 869.0 | 652.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 8.21 | 47.79 | -6.57 | 69.73 | 0.1213 | 947.0 | 783.4 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 10.28 | 47.69 | -6.67 | 55.76 | 0.1389 | 776.0 | 792.6 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 10.96 | 47.31 | -7.05 | 53.32 | 0.1510 | 808.0 | 661.8 | |
| 3.49 | 15.54 | 1.75 | 7.77 | 9.70 | 47.28 | -7.09 | 60.82 | 0.1399 | 1139.0 | 980.9 | |
| 0.35 | -54.00 | 0.17 | -54.00 | 9.31 | 47.16 | -7.20 | 63.70 | 0.1386 | 1036.5 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 11.77 | 46.98 | -7.38 | 50.45 | 0.1639 | 1026.0 | 837.0 | |
| 5.06 | 14.14 | 2.54 | 7.09 | 10.99 | 46.91 | -7.45 | 54.65 | 0.1568 | 1153.5 | 799.2 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 8.44 | 46.94 | -7.43 | 70.21 | 0.1365 | 1050.0 | 769.6 | |
| 1.13 | 3.49 | 0.57 | 1.75 | 9.72 | 46.67 | -7.70 | 62.61 | 0.1494 | 1114.5 | 809.2 | |
| 1.48 | 1.75 | 0.75 | 0.88 | 11.28 | 46.44 | -7.92 | 54.75 | 0.1663 | 1103.2 | 1067.3 | |
| 3.93 | 60.24 | 1.97 | 30.31 | 11.58 | 46.28 | -8.08 | 53.82 | 0.1715 | 1257.4 | 732.7 | |
| 0.00 | 7.86 | 0.00 | 3.95 | 11.21 | 46.11 | -8.26 | 56.15 | 0.1704 | 862.0 | 825.6 | |
| 2.97 | -61.00 | 1.49 | -61.00 | 11.87 | 46.02 | -8.34 | 53.26 | 0.1779 | 1149.7 | 999999 | |
| 0.00 | 3.75 | 0.00 | 1.89 | 11.51 | 45.94 | -8.42 | 55.21 | 0.1755 | 826.0 | 889.6 | |
| 0.87 | -61.00 | 0.44 | -61.00 | 11.78 | 45.87 | -8.49 | 54.16 | 0.1791 | 1280.4 | 999999 | |
| 0.00 | 4.19 | 0.00 | 2.11 | 11.51 | 45.70 | -8.67 | 55.97 | 0.1790 | 953.0 | 752.6 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 10.04 | 45.74 | -8.62 | 63.33 | 0.1660 | 797.0 | 569.6 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 8.81 | 45.62 | -8.75 | 70.65 | 0.1600 | 1057.0 | 858.3 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 11.99 | 45.47 | -8.90 | 54.47 | 0.1868 | 693.0 | 484.2 | |
| 1.75 | 2.53 | 0.88 | 1.28 | 11.59 | 45.42 | -8.95 | 56.39 | 0.1838 | 902.6 | 890.9 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 10.69 | 45.32 | -9.04 | 61.00 | 0.1774 | 231.0 | 91.0 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 11.71 | 45.20 | -9.17 | 56.48 | 0.1880 | 868.0 | 694.8 | |
| 0.00 | 2.44 | 0.00 | 1.23 | 11.19 | 44.81 | -9.55 | 59.87 | 0.1891 | 899.0 | 649.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 11.61 | 44.64 | -9.72 | 58.39 | 0.1951 | 754.0 | 476.5 | |
| 12.05 | 19.82 | 6.08 | 10.01 | 10.76 | 44.18 | -10.19 | 63.35 | 0.1953 | 1192.6 | 664.1 | |
| 3.06 | 3.75 | 1.54 | 1.90 | 11.36 | 44.16 | -10.21 | 60.67 | 0.2002 | 963.0 | 768.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 8.99 | 43.80 | -10.56 | 72.69 | 0.1905 | 711.0 | 578.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
