SDO HMI 2011-10-15 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.18 | 714.88 | 70.17 | 373.91 | -12.10 | 49.10 | -4.72 | 165.83 | 0.3232 | 90.1 | -40.5 | |
|
previous
or next observation for the same group /

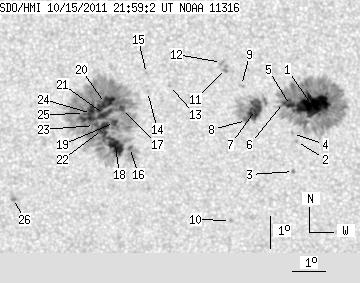

back to the solar disc SDO HMI 2011-10-15 21:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.30 | 264.28 | 22.51 | 137.35 | -11.75 | 52.71 | -1.11 | 176.42 | 0.3043 | 1353.0 | 461.6 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.88 | 52.21 | -1.60 | 175.15 | 0.3237 | 755.0 | 545.9 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -13.83 | 52.11 | -1.70 | 175.11 | 0.3395 | -973.0 | -737.0 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -12.63 | 52.09 | -1.72 | 174.71 | 0.3197 | 615.0 | 414.1 | |
| 3.58 | -1.00 | 1.86 | -1.00 | -11.75 | 52.03 | -1.78 | 174.26 | 0.3052 | 1131.8 | 999999 | |
| 1.13 | -1.00 | 0.59 | -1.00 | -11.66 | 51.82 | -1.99 | 173.55 | 0.3040 | 1006.5 | 999999 | |
| 19.12 | 53.78 | 9.96 | 28.00 | -11.88 | 50.96 | -2.85 | 170.93 | 0.3096 | 1077.0 | 454.6 | |
| 0.26 | -7.00 | 0.14 | -7.00 | -12.23 | 50.68 | -3.13 | 170.25 | 0.3161 | 720.0 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.04 | -11.13 | 50.54 | -3.27 | 169.16 | 0.2985 | 840.0 | 687.2 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -15.40 | 50.14 | -3.67 | 170.34 | 0.3691 | 832.0 | 653.3 | |
| 0.00 | 3.58 | 0.00 | 1.85 | -10.60 | 50.06 | -3.75 | 167.21 | 0.2915 | 942.0 | 777.6 | |
| 0.00 | 1.75 | 0.00 | 0.90 | -10.42 | 49.94 | -3.87 | 166.67 | 0.2889 | 893.0 | 808.7 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -11.15 | 48.35 | -5.47 | 162.25 | 0.3079 | 597.0 | 437.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.34 | 47.67 | -6.14 | 160.42 | 0.3145 | 651.0 | 394.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -10.78 | 47.65 | -6.16 | 159.74 | 0.3058 | 783.0 | 525.8 | |
| 1.48 | 14.49 | 0.78 | 7.65 | -13.11 | 47.07 | -6.74 | 160.58 | 0.3453 | -958.6 | -279.1 | |
| 2.97 | 363.02 | 1.56 | 190.81 | -11.88 | 46.86 | -6.95 | 158.70 | 0.3276 | -1024.4 | -468.3 | |
| 15.98 | -17.00 | 8.43 | -17.00 | -13.05 | 46.64 | -7.17 | 159.38 | 0.3468 | -1121.2 | 999999 | |
| 3.14 | -17.00 | 1.65 | -17.00 | -12.33 | 46.63 | -7.18 | 158.57 | 0.3358 | -1135.1 | 999999 | |
| 13.18 | -17.00 | 6.91 | -17.00 | -11.73 | 46.37 | -7.44 | 157.17 | 0.3283 | -1384.4 | 999999 | |
| 7.51 | -17.00 | 3.94 | -17.00 | -12.08 | 46.33 | -7.48 | 157.47 | 0.3339 | -1249.9 | 999999 | |
| 11.44 | -17.00 | 6.02 | -17.00 | -12.55 | 46.25 | -7.56 | 157.81 | 0.3415 | -1117.0 | 999999 | |
| 0.35 | -17.00 | 0.18 | -17.00 | -12.43 | 46.01 | -7.80 | 157.03 | 0.3412 | -942.5 | 999999 | |
| 9.52 | -17.00 | 5.00 | -17.00 | -12.05 | 45.93 | -7.88 | 156.37 | 0.3361 | -1116.7 | 999999 | |
| 1.22 | -17.00 | 0.64 | -17.00 | -12.06 | 45.71 | -8.10 | 155.80 | 0.3375 | -975.6 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.55 | -14.79 | 43.39 | -10.42 | 153.52 | 0.3937 | -940.0 | -810.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
