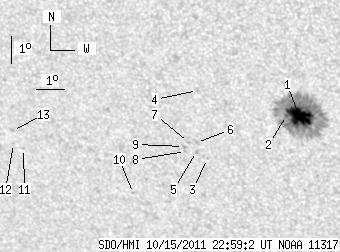

SDO HMI 2011-10-15 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.80 | 177.88 | 16.39 | 109.15 | -26.69 | 36.91 | -16.35 | 154.86 | 0.5929 | 816.2 | 399.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-15 22:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.54 | 164.33 | 16.23 | 100.44 | -26.60 | 37.40 | -15.86 | 155.38 | 0.5886 | 1186.9 | 416.6 | |
| 0.26 | -1.00 | 0.16 | -1.00 | -26.58 | 36.95 | -16.31 | 154.76 | 0.5910 | 608.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -28.22 | 33.88 | -19.38 | 152.22 | 0.6297 | 615.0 | 519.6 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -25.80 | 33.96 | -19.30 | 150.20 | 0.6010 | 759.0 | 465.2 | |
| 0.00 | 1.48 | 0.00 | 0.94 | -27.98 | 33.53 | -19.73 | 151.60 | 0.6291 | 656.0 | 523.5 | |
| 0.00 | 2.01 | 0.00 | 1.27 | -27.66 | 33.59 | -19.67 | 151.40 | 0.6250 | 889.0 | 560.4 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -27.67 | 33.30 | -19.96 | 151.06 | 0.6270 | 722.0 | 640.0 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -28.00 | 33.13 | -20.13 | 151.14 | 0.6319 | 477.0 | 467.7 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -27.82 | 33.09 | -20.17 | 150.95 | 0.6301 | 577.0 | 443.9 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -29.61 | 30.88 | -22.38 | 150.00 | 0.6644 | 704.0 | 562.8 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -28.15 | 27.12 | -26.14 | 144.76 | 0.6757 | -753.0 | -574.8 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -27.99 | 26.78 | -26.48 | 144.27 | 0.6766 | -729.0 | -522.1 | |
| 0.00 | 1.40 | 0.00 | 0.93 | -27.52 | 26.87 | -26.39 | 143.90 | 0.6714 | -713.0 | -552.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
