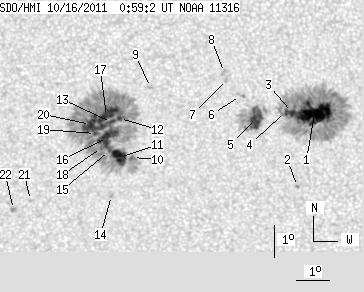

SDO HMI 2011-10-16 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148.04 | 725.51 | 77.30 | 378.72 | -12.09 | 49.11 | -3.05 | 170.79 | 0.3175 | -51.0 | -39.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.93 | 277.03 | 22.83 | 143.95 | -11.72 | 52.73 | 0.57 | 181.84 | 0.3033 | 1315.1 | 426.0 | |
| 0.00 | 1.48 | 0.00 | 0.78 | -14.03 | 52.21 | 0.05 | 180.14 | 0.3414 | -1067.0 | -861.9 | |
| 2.79 | -1.00 | 1.45 | -1.00 | -11.69 | 52.06 | -0.10 | 179.66 | 0.3026 | 1146.8 | 999999 | |
| 1.66 | -1.00 | 0.86 | -1.00 | -11.66 | 51.84 | -0.32 | 178.97 | 0.3021 | 983.8 | 999999 | |
| 20.00 | 49.17 | 10.40 | 25.58 | -11.88 | 50.96 | -1.20 | 176.14 | 0.3065 | 1058.7 | 440.7 | |
| 0.00 | 2.79 | 0.00 | 1.45 | -11.16 | 50.47 | -1.69 | 174.36 | 0.2951 | 634.0 | 612.0 | |
| 0.00 | 2.10 | 0.00 | 1.08 | -10.67 | 50.05 | -2.11 | 172.74 | 0.2876 | 890.0 | 747.8 | |
| 0.00 | 2.62 | 0.00 | 1.35 | -10.45 | 49.99 | -2.17 | 172.44 | 0.2841 | 832.0 | 721.2 | |
| 0.00 | 2.10 | 0.00 | 1.09 | -10.93 | 47.73 | -4.43 | 165.26 | 0.2994 | 860.0 | 593.5 | |
| 1.92 | 381.23 | 1.01 | 199.71 | -13.13 | 47.14 | -5.02 | 165.30 | 0.3372 | -887.5 | -438.7 | |
| 14.24 | -10.00 | 7.49 | -10.00 | -13.14 | 46.74 | -5.42 | 164.19 | 0.3390 | -1092.4 | 999999 | |
| 1.75 | -10.00 | 0.91 | -10.00 | -11.91 | 46.76 | -5.39 | 163.19 | 0.3194 | -1072.0 | 999999 | |
| 3.84 | -10.00 | 2.01 | -10.00 | -12.04 | 46.52 | -5.64 | 162.58 | 0.3226 | -1121.5 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.34 | -14.34 | 46.46 | -5.70 | 164.41 | 0.3593 | -711.0 | -619.7 | |
| 1.05 | -10.00 | 0.55 | -10.00 | -12.92 | 46.44 | -5.72 | 163.16 | 0.3370 | -1010.9 | 999999 | |
| 18.25 | -10.00 | 9.58 | -10.00 | -12.51 | 46.38 | -5.78 | 162.64 | 0.3308 | -1092.2 | 999999 | |
| 19.74 | -10.00 | 10.32 | -10.00 | -11.85 | 46.37 | -5.79 | 161.97 | 0.3205 | -1363.4 | 999999 | |
| 1.66 | -10.00 | 0.87 | -10.00 | -12.83 | 46.19 | -5.97 | 162.40 | 0.3367 | -685.4 | 999999 | |
| 1.31 | -10.00 | 0.69 | -10.00 | -12.39 | 46.02 | -6.14 | 161.50 | 0.3307 | -998.0 | 999999 | |
| 15.90 | -10.00 | 8.33 | -10.00 | -12.11 | 45.87 | -6.29 | 160.80 | 0.3271 | -1070.7 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -14.54 | 43.94 | -8.22 | 158.27 | 0.3754 | -752.0 | -582.6 | |
| 0.00 | 3.06 | 0.00 | 1.64 | -14.83 | 43.40 | -8.76 | 157.29 | 0.3831 | -980.0 | -764.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
