SDO HMI 2011-10-16 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.64 | 190.66 | 16.20 | 116.58 | -26.68 | 36.64 | -15.52 | 156.06 | 0.5881 | 648.8 | 350.1 | |
|
previous
or next observation for the same group /

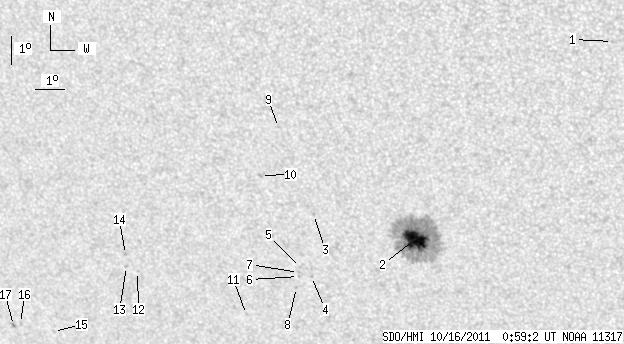

back to the solar disc SDO HMI 2011-10-16 00:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.53 | -19.66 | 44.54 | -7.62 | 163.80 | 0.4493 | -722.0 | -573.5 | |
| 26.64 | 174.24 | 16.20 | 105.88 | -26.58 | 37.37 | -14.79 | 156.82 | 0.5822 | 1208.8 | 392.9 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -25.81 | 33.97 | -18.18 | 151.62 | 0.5934 | 783.0 | 585.3 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -28.02 | 33.53 | -18.63 | 152.96 | 0.6226 | 657.0 | 564.7 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -27.71 | 33.19 | -18.97 | 152.29 | 0.6211 | 625.0 | 554.5 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -28.04 | 33.06 | -19.10 | 152.40 | 0.6258 | 557.0 | 501.0 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -27.90 | 33.08 | -19.07 | 152.32 | 0.6239 | 751.0 | 526.7 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -28.44 | 32.91 | -19.25 | 152.56 | 0.6313 | 604.0 | 493.2 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -22.83 | 33.22 | -18.94 | 147.78 | 0.5633 | 816.0 | 603.2 | |
| 0.00 | 1.48 | 0.00 | 0.91 | -24.51 | 32.33 | -19.83 | 148.31 | 0.5896 | 714.0 | 568.1 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -29.50 | 30.87 | -21.29 | 151.10 | 0.6562 | 647.0 | 524.8 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -28.11 | 27.15 | -25.01 | 145.86 | 0.6668 | -815.0 | -679.6 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -27.94 | 26.78 | -25.38 | 145.33 | 0.6679 | -681.0 | -577.5 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -27.51 | 26.85 | -25.31 | 144.98 | 0.6631 | -749.0 | -681.7 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -30.49 | 23.23 | -28.93 | 144.36 | 0.7178 | -532.0 | -425.6 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -30.26 | 21.99 | -30.17 | 143.06 | 0.7246 | -634.0 | -466.8 | |
| 0.00 | 2.18 | 0.00 | 1.57 | -30.35 | 21.68 | -30.48 | 142.88 | 0.7277 | -713.0 | -557.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
