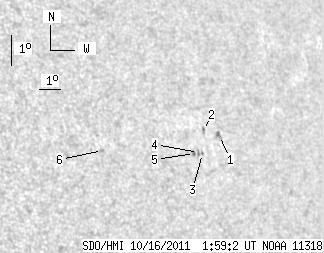

SDO HMI 2011-10-16 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.63 | 0.00 | 8.75 | 19.97 | 99.73 | 48.13 | 291.54 | 0.7544 | -434.5 | -385.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 01:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.06 | 0.00 | 2.36 | 20.12 | 101.09 | 49.48 | 291.43 | 0.7691 | -480.0 | -422.2 | |
| 0.00 | 2.36 | 0.00 | 1.80 | 20.32 | 100.39 | 48.79 | 291.84 | 0.7623 | -566.0 | -417.0 | |
| 0.00 | 1.14 | 0.00 | 0.86 | 19.63 | 100.06 | 48.45 | 291.01 | 0.7574 | -398.0 | -379.2 | |
| 0.00 | 1.75 | 0.00 | 1.32 | 19.67 | 99.88 | 48.28 | 291.10 | 0.7556 | -707.0 | -563.1 | |
| 0.00 | 1.66 | 0.00 | 1.25 | 19.66 | 99.69 | 48.08 | 291.12 | 0.7535 | -802.0 | -697.4 | |
| 0.00 | 1.66 | 0.00 | 1.16 | 20.04 | 95.60 | 43.99 | 292.64 | 0.7093 | 346.0 | 270.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
