SDO HMI 2011-10-16 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.65 | 732.71 | 72.32 | 381.98 | -12.12 | 49.08 | -0.88 | 177.42 | 0.3138 | -23.0 | -31.3 | |
|
previous
or next observation for the same group /

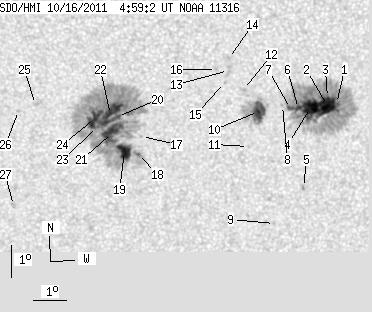

back to the solar disc SDO HMI 2011-10-16 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.96 | 270.39 | 0.50 | 140.66 | -11.64 | 53.28 | 3.32 | 190.70 | 0.3064 | 1102.1 | 439.4 | |
| 18.26 | -1.00 | 9.50 | -1.00 | -11.70 | 53.01 | 3.04 | 189.80 | 0.3066 | 1401.9 | 999999 | |
| 0.79 | -1.00 | 0.41 | -1.00 | -11.45 | 53.00 | 3.04 | 189.94 | 0.3025 | 1432.0 | 999999 | |
| 16.95 | -1.00 | 8.82 | -1.00 | -11.76 | 52.49 | 2.52 | 188.12 | 0.3063 | 1442.7 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -14.28 | 52.30 | 2.33 | 186.55 | 0.3474 | -927.0 | -605.4 | |
| 2.53 | -1.00 | 1.32 | -1.00 | -11.79 | 52.12 | 2.16 | 186.95 | 0.3060 | 1119.4 | 999999 | |
| 3.15 | -1.00 | 1.64 | -1.00 | -11.79 | 51.88 | 1.91 | 186.16 | 0.3055 | 955.5 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.69 | 51.63 | 1.67 | 185.41 | 0.3035 | 1014.0 | 777.7 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -15.43 | 51.41 | 1.45 | 183.84 | 0.3648 | 853.0 | 707.9 | |
| 18.17 | 47.26 | 9.45 | 24.58 | -11.88 | 50.90 | 0.94 | 183.01 | 0.3057 | 1084.5 | 486.1 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -12.98 | 50.60 | 0.63 | 181.91 | 0.3238 | 672.0 | 522.3 | |
| 0.00 | 1.83 | 0.00 | 0.95 | -11.19 | 50.44 | 0.48 | 181.60 | 0.2939 | 856.0 | 632.3 | |
| 0.00 | 4.54 | 0.00 | 2.35 | -10.59 | 49.98 | 0.02 | 180.07 | 0.2838 | 771.0 | 733.1 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -10.22 | 49.98 | 0.02 | 180.07 | 0.2775 | 961.0 | 632.4 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -10.97 | 49.86 | -0.10 | 179.65 | 0.2901 | 673.0 | 548.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -10.56 | 49.62 | -0.35 | 178.79 | 0.2834 | 803.0 | 548.5 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -12.67 | 47.32 | -2.65 | 171.91 | 0.3216 | -798.0 | -591.9 | |
| 0.87 | 392.88 | 0.46 | 205.16 | -13.21 | 47.22 | -2.74 | 171.86 | 0.3306 | -701.0 | -433.7 | |
| 14.24 | -18.00 | 7.47 | -18.00 | -13.15 | 46.79 | -3.17 | 170.57 | 0.3307 | -1106.8 | 999999 | |
| 3.41 | -18.00 | 1.78 | -18.00 | -12.04 | 46.59 | -3.37 | 169.36 | 0.3133 | -1067.5 | 999999 | |
| 21.40 | -18.00 | 11.19 | -18.00 | -12.55 | 46.43 | -3.53 | 169.18 | 0.3220 | -1082.2 | 999999 | |
| 23.50 | -18.00 | 12.25 | -18.00 | -11.98 | 46.38 | -3.59 | 168.67 | 0.3130 | -1348.4 | 999999 | |
| 2.10 | -18.00 | 1.10 | -18.00 | -12.36 | 45.97 | -3.99 | 167.70 | 0.3205 | -917.0 | 999999 | |
| 12.32 | -18.00 | 6.43 | -18.00 | -12.11 | 45.88 | -4.08 | 167.26 | 0.3168 | -1146.5 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.00 | -11.69 | 44.08 | -5.88 | 161.52 | 0.3180 | -332.0 | -269.4 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -11.88 | 43.56 | -6.41 | 160.21 | 0.3239 | -588.0 | -571.2 | |
| 0.00 | 2.45 | 0.00 | 1.30 | -14.89 | 43.32 | -6.64 | 162.42 | 0.3719 | -801.0 | -685.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
