SDO HMI 2011-10-16 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 270.50 | 887.04 | 134.69 | 441.85 | 10.62 | 51.35 | 1.38 | 331.47 | 0.1032 | -121.9 | -109.8 | |
|
previous
or next observation for the same group /

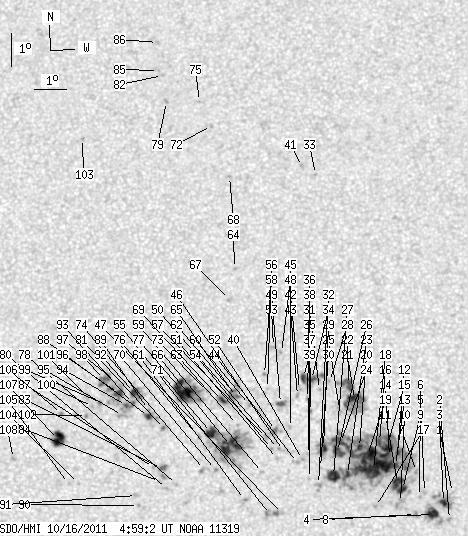

back to the solar disc SDO HMI 2011-10-16 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 0.83 | 8.93 | 56.13 | 6.17 | 297.33 | 0.1201 | -87.0 | -131.7 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 8.12 | 56.03 | 6.07 | 291.31 | 0.1128 | -771.0 | -554.9 | |
| 3.15 | 23.24 | 1.57 | 11.59 | 8.63 | 55.86 | 5.89 | 296.08 | 0.1135 | -1194.2 | -733.7 | |
| 6.99 | 22.98 | 3.48 | 11.45 | 8.28 | 55.55 | 5.58 | 294.27 | 0.1061 | -1230.2 | -744.1 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 8.94 | 55.28 | 5.32 | 300.93 | 0.1073 | -966.0 | -738.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 8.82 | 55.13 | 5.17 | 300.68 | 0.1039 | -961.0 | -780.8 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 9.57 | 55.05 | 5.09 | 306.98 | 0.1099 | -865.0 | -740.4 | |
| 0.00 | 3.23 | 0.00 | 1.61 | 8.28 | 55.00 | 5.04 | 296.55 | 0.0976 | -948.0 | -778.9 | |
| 5.68 | 29.09 | 2.83 | 14.48 | 9.03 | 54.62 | 4.65 | 305.17 | 0.0985 | -1180.5 | -661.2 | |
| 0.00 | 6.03 | 0.00 | 3.00 | 8.65 | 54.55 | 4.59 | 302.14 | 0.0938 | -818.0 | -782.4 | |
| 8.74 | -9.00 | 4.35 | -9.00 | 9.25 | 54.47 | 4.50 | 307.79 | 0.0985 | -1210.6 | 999999 | |
| 2.01 | 332.77 | 1.00 | 165.60 | 10.14 | 54.48 | 4.52 | 314.34 | 0.1089 | -894.2 | -604.1 | |
| 3.67 | -12.00 | 1.83 | -12.00 | 9.75 | 54.41 | 4.45 | 312.05 | 0.1034 | -1024.8 | 999999 | |
| 0.96 | -12.00 | 0.48 | -12.00 | 10.03 | 54.23 | 4.27 | 315.13 | 0.1044 | 61.3 | 999999 | |
| 16.86 | -12.00 | 8.40 | -12.00 | 10.27 | 54.15 | 4.18 | 317.32 | 0.1064 | -877.5 | 999999 | |
| 4.11 | -12.00 | 2.05 | -12.00 | 10.48 | 53.94 | 3.97 | 320.10 | 0.1067 | -745.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 8.53 | 53.79 | 3.83 | 305.78 | 0.0818 | -881.0 | -726.2 | |
| 37.30 | -12.00 | 18.56 | -12.00 | 9.64 | 53.74 | 3.78 | 315.82 | 0.0937 | -1319.7 | 999999 | |
| 19.31 | -12.00 | 9.61 | -12.00 | 10.06 | 53.57 | 3.60 | 320.17 | 0.0970 | -1220.0 | 999999 | |
| 3.06 | -12.00 | 1.52 | -12.00 | 10.30 | 53.32 | 3.36 | 323.64 | 0.0977 | -1145.9 | 999999 | |
| 14.33 | 52.16 | 7.15 | 26.02 | 11.74 | 53.19 | 3.22 | 331.95 | 0.1177 | 877.6 | 340.8 | |
| 10.05 | -21.00 | 5.01 | -21.00 | 12.19 | 53.01 | 3.05 | 334.96 | 0.1233 | 1074.9 | 999999 | |
| 2.62 | -12.00 | 1.30 | -12.00 | 9.49 | 52.95 | 2.99 | 321.33 | 0.0827 | -1307.8 | 999999 | |
| 9.78 | -12.00 | 4.87 | -12.00 | 10.45 | 52.75 | 2.78 | 329.45 | 0.0944 | -968.3 | 999999 | |
| 0.00 | 4.19 | 0.00 | 2.09 | 11.44 | 52.73 | 2.76 | 334.29 | 0.1095 | 71.0 | 57.8 | |
| 9.44 | -12.00 | 4.69 | -12.00 | 10.19 | 52.65 | 2.69 | 328.78 | 0.0896 | -1089.1 | 999999 | |
| 10.92 | -12.00 | 5.43 | -12.00 | 9.47 | 52.53 | 2.56 | 325.31 | 0.0779 | -1124.1 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.29 | 52.43 | 2.47 | 339.55 | 0.1209 | 887.0 | 670.5 | |
| 3.41 | -12.00 | 1.69 | -12.00 | 10.31 | 52.23 | 2.27 | 333.59 | 0.0879 | -998.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.56 | 9.71 | 52.14 | 2.17 | 331.19 | 0.0779 | -782.0 | -642.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 12.05 | 52.12 | 2.16 | 341.27 | 0.1152 | 863.0 | 643.5 | |
| 0.00 | 3.32 | 0.00 | 1.65 | 9.20 | 52.07 | 2.11 | 328.42 | 0.0696 | -431.0 | -461.0 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 18.57 | 52.06 | 2.10 | 351.05 | 0.2245 | -963.0 | -679.4 | |
| 3.76 | 18.87 | 1.87 | 9.41 | 12.35 | 51.88 | 1.92 | 343.99 | 0.1190 | 1166.5 | 721.9 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 11.39 | 51.84 | 1.88 | 341.69 | 0.1028 | -827.0 | -548.5 | |
| 0.00 | 1.40 | 0.00 | 0.69 | 9.38 | 51.80 | 1.84 | 333.05 | 0.0701 | -688.0 | -460.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 10.10 | 51.77 | 1.81 | 337.40 | 0.0813 | -783.0 | -620.8 | |
| 0.00 | 1.57 | 0.00 | 0.78 | 11.78 | 51.75 | 1.79 | 343.60 | 0.1088 | -912.0 | -640.7 | |
| 4.02 | -34.00 | 2.00 | -34.00 | 12.41 | 51.63 | 1.67 | 346.07 | 0.1189 | 979.9 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.69 | 9.95 | 51.59 | 1.63 | 338.80 | 0.0777 | -770.0 | -526.6 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 18.81 | 51.66 | 1.69 | 352.91 | 0.2277 | -875.0 | -710.3 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 12.05 | 51.51 | 1.55 | 346.34 | 0.1123 | -926.0 | -674.9 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 11.87 | 51.45 | 1.48 | 346.48 | 0.1090 | -1003.0 | -677.2 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 9.86 | 51.44 | 1.47 | 340.22 | 0.0753 | 738.0 | 498.1 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 10.91 | 51.23 | 1.27 | 346.26 | 0.0918 | -1012.0 | -729.8 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 10.22 | 51.01 | 1.05 | 346.77 | 0.0792 | -840.0 | -527.7 | |
| 0.00 | 1.14 | 0.00 | 0.56 | 8.33 | 50.98 | 1.02 | 338.24 | 0.0475 | -963.0 | -618.7 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 13.16 | 50.96 | 1.00 | 352.42 | 0.1296 | -893.0 | -748.0 | |
| 3.41 | 6.12 | 1.70 | 3.05 | 11.63 | 50.93 | 0.96 | 350.75 | 0.1031 | -1030.0 | -722.6 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 10.28 | 50.86 | 0.90 | 348.77 | 0.0797 | -869.0 | -698.3 | |
| 0.00 | 2.10 | 0.00 | 1.04 | 9.98 | 50.83 | 0.87 | 348.38 | 0.0745 | -938.0 | -561.6 | |
| 0.00 | 6.12 | 0.00 | 3.04 | 10.82 | 50.77 | 0.81 | 350.95 | 0.0887 | -1242.0 | -862.5 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 13.35 | 50.72 | 0.76 | 354.40 | 0.1323 | -842.0 | -717.9 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 10.28 | 50.65 | 0.69 | 351.38 | 0.0791 | -906.0 | -711.1 | |
| 0.00 | 9.00 | 0.00 | 4.46 | 8.31 | 50.62 | 0.65 | 345.44 | 0.0451 | -856.0 | -789.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 12.08 | 50.53 | 0.57 | 354.91 | 0.1101 | 801.0 | 587.2 | |
| 0.00 | 2.88 | 0.00 | 1.43 | 10.61 | 50.50 | 0.54 | 353.72 | 0.0845 | -24.0 | -16.4 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 12.50 | 50.44 | 0.48 | 356.00 | 0.1172 | 995.0 | 784.7 | |
| 0.00 | 1.57 | 0.00 | 0.78 | 9.56 | 50.38 | 0.41 | 353.79 | 0.0660 | 843.0 | 671.2 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 11.60 | 49.98 | 0.02 | 359.81 | 0.1012 | -474.0 | -353.2 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 8.75 | 49.83 | -0.13 | 2.55 | 0.0515 | -924.0 | -720.7 | |
| 0.79 | 23.06 | 0.39 | 11.49 | 11.84 | 49.62 | -0.35 | 3.24 | 0.1056 | 899.6 | 520.4 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 11.00 | 49.62 | -0.35 | 3.76 | 0.0910 | -719.0 | -586.1 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 15.70 | 49.52 | -0.45 | 2.50 | 0.1727 | 908.0 | 714.4 | |
| 2.01 | -62.00 | 1.00 | -62.00 | 11.99 | 49.46 | -0.50 | 4.54 | 0.1084 | 916.0 | 999999 | |
| 20.09 | 107.11 | 9.99 | 53.23 | 10.37 | 49.41 | -0.56 | 6.88 | 0.0803 | 1268.9 | 339.9 | |
| 0.00 | 2.10 | 0.00 | 1.05 | 14.77 | 49.36 | -0.60 | 3.72 | 0.1566 | 985.0 | 723.1 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 18.51 | 49.35 | -0.61 | 2.63 | 0.2209 | 874.0 | 680.9 | |
| 3.58 | -62.00 | 1.78 | -62.00 | 11.72 | 49.16 | -0.80 | 7.62 | 0.1043 | 987.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 9.65 | 48.95 | -1.01 | 14.59 | 0.0694 | -948.0 | -834.6 | |
| 7.95 | -66.00 | 3.95 | -66.00 | 10.76 | 48.83 | -1.14 | 12.74 | 0.0888 | -1124.6 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 20.07 | 48.77 | -1.19 | 4.53 | 0.2482 | 797.0 | 669.3 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 11.99 | 48.70 | -1.26 | 11.34 | 0.1102 | -788.0 | -533.2 | |
| 0.00 | 3.67 | 0.00 | 1.82 | 9.65 | 48.62 | -1.34 | 19.09 | 0.0711 | -694.0 | -710.0 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 20.82 | 48.38 | -1.58 | 5.68 | 0.2613 | 817.0 | 587.5 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 10.64 | 48.43 | -1.53 | 17.35 | 0.0885 | -745.0 | -728.0 | |
| 20.53 | 51.28 | 10.24 | 25.56 | 12.02 | 47.94 | -2.03 | 17.76 | 0.1140 | 1271.9 | 422.1 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 9.20 | 47.77 | -2.19 | 32.58 | 0.0704 | 814.0 | 541.8 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 20.81 | 47.33 | -2.63 | 9.42 | 0.2635 | 952.0 | 751.9 | |
| 0.00 | 1.40 | 0.00 | 0.69 | 9.08 | 47.47 | -2.49 | 37.02 | 0.0717 | 1021.0 | 716.6 | |
| 0.00 | 2.10 | 0.00 | 1.04 | 10.88 | 47.40 | -2.57 | 26.50 | 0.0991 | 1077.0 | 903.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 21.62 | 47.19 | -2.78 | 9.39 | 0.2773 | 892.0 | 620.6 | |
| 1.40 | 7.95 | 0.69 | 3.95 | 9.68 | 47.31 | -2.65 | 34.06 | 0.0817 | 1146.0 | 906.7 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 9.29 | 47.26 | -2.71 | 37.56 | 0.0768 | 1001.0 | 691.4 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 21.77 | 47.05 | -2.91 | 9.73 | 0.2802 | 865.0 | 620.8 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 22.64 | 47.00 | -2.96 | 9.35 | 0.2948 | 777.0 | 678.5 | |
| 0.00 | 0.61 | 0.00 | 0.30 | 9.71 | 47.07 | -2.89 | 36.21 | 0.0846 | 889.0 | 665.0 | |
| 2.97 | 6.90 | 1.48 | 3.44 | 11.23 | 46.90 | -3.06 | 28.98 | 0.1085 | 1252.9 | 893.1 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.44 | 46.90 | -3.06 | 28.07 | 0.1118 | 894.0 | 702.0 | |
| 0.00 | 1.14 | 0.00 | 0.56 | 8.57 | 46.63 | -3.34 | 50.11 | 0.0754 | 1001.0 | 832.1 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 8.86 | 46.56 | -3.40 | 47.70 | 0.0796 | 997.0 | 650.6 | |
| 5.24 | 11.53 | 2.62 | 5.75 | 11.95 | 46.47 | -3.50 | 29.13 | 0.1231 | 1054.6 | 891.6 | |
| 1.40 | 11.10 | 0.70 | 5.53 | 11.62 | 46.44 | -3.52 | 30.71 | 0.1184 | 1064.0 | 940.9 | |
| 1.57 | -93.00 | 0.78 | -93.00 | 11.56 | 46.23 | -3.73 | 32.48 | 0.1194 | 1220.2 | 999999 | |
| 0.00 | 3.67 | 0.00 | 1.83 | 11.26 | 46.11 | -3.85 | 34.74 | 0.1162 | 818.0 | 757.9 | |
| 5.50 | 20.79 | 2.75 | 10.38 | 11.92 | 45.98 | -3.98 | 32.55 | 0.1269 | 1117.0 | 740.0 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.28 | 45.88 | -4.08 | 31.67 | 0.1331 | 359.0 | 352.9 | |
| 0.00 | 11.10 | 0.00 | 5.55 | 12.34 | 45.54 | -4.42 | 33.49 | 0.1371 | 877.0 | 806.8 | |
| 1.31 | 2.53 | 0.65 | 1.27 | 11.64 | 45.43 | -4.53 | 37.23 | 0.1285 | 1042.3 | 812.4 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 11.52 | 45.19 | -4.77 | 39.27 | 0.1294 | 968.0 | 745.3 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 11.82 | 45.03 | -4.93 | 38.73 | 0.1351 | 891.0 | 740.8 | |
| 0.00 | 2.01 | 0.00 | 1.00 | 11.25 | 45.01 | -4.95 | 41.70 | 0.1279 | 859.0 | 614.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 19.65 | 44.68 | -5.29 | 19.91 | 0.2559 | 945.0 | 825.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.21 | 44.80 | -5.16 | 56.16 | 0.1075 | 910.0 | 661.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 9.21 | 44.50 | -5.47 | 57.65 | 0.1119 | 748.0 | 647.8 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 11.30 | 44.24 | -5.72 | 45.48 | 0.1377 | 1246.0 | 872.0 | |
| 12.58 | 17.12 | 6.28 | 8.55 | 10.52 | 44.17 | -5.80 | 50.27 | 0.1297 | 1215.3 | 751.4 | |
| 0.00 | 2.10 | 0.00 | 1.05 | 9.94 | 42.81 | -7.16 | 59.39 | 0.1433 | 1023.0 | 810.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
