SDO HMI 2011-10-16 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.80 | 696.20 | 56.80 | 373.81 | 27.29 | 56.64 | 7.23 | 343.08 | 0.3868 | -1197.9 | -424.1 | |
|
previous
or next observation for the same group /

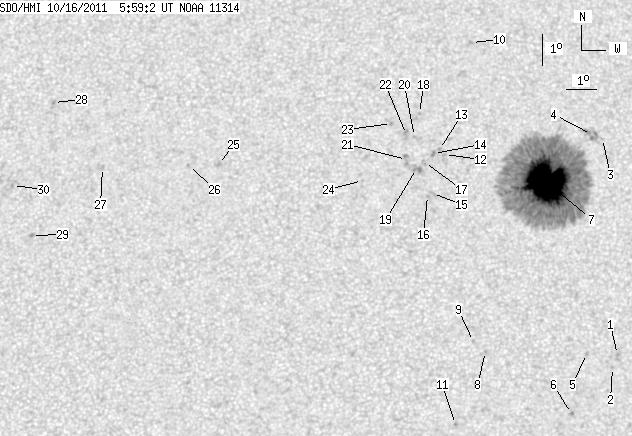

back to the solar disc SDO HMI 2011-10-16 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.68 | 21.82 | 59.05 | 9.63 | 330.73 | 0.3191 | -766.0 | -587.7 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 21.42 | 58.86 | 9.44 | 330.54 | 0.3118 | -831.0 | -594.0 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 28.68 | 59.10 | 9.68 | 339.27 | 0.4186 | -582.0 | -403.5 | |
| 0.00 | 11.53 | 0.00 | 6.28 | 28.81 | 58.73 | 9.31 | 340.11 | 0.4185 | 605.0 | 705.1 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 21.87 | 58.04 | 8.62 | 333.38 | 0.3119 | -804.0 | -681.7 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 20.02 | 57.45 | 8.03 | 331.94 | 0.2804 | -1121.0 | -877.4 | |
| 105.80 | 630.16 | 56.80 | 338.36 | 27.28 | 57.06 | 7.65 | 342.13 | 0.3871 | -1600.0 | -452.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 21.97 | 54.77 | 5.35 | 342.76 | 0.2931 | -753.0 | -571.6 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 22.28 | 54.39 | 4.97 | 344.23 | 0.2963 | -795.0 | -525.0 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 31.89 | 54.77 | 5.35 | 349.80 | 0.4489 | -706.0 | -546.8 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 19.72 | 53.73 | 4.31 | 343.60 | 0.2519 | -1018.0 | -791.8 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 28.22 | 53.65 | 4.24 | 350.32 | 0.3886 | -778.0 | -689.5 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 28.38 | 53.49 | 4.07 | 350.76 | 0.3908 | -801.0 | -661.2 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 28.26 | 53.28 | 3.86 | 351.17 | 0.3882 | -949.0 | -798.8 | |
| 0.00 | 2.62 | 0.00 | 1.40 | 26.97 | 53.20 | 3.78 | 350.75 | 0.3675 | -406.0 | -586.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 26.90 | 53.03 | 3.61 | 351.13 | 0.3660 | -869.0 | -763.2 | |
| 0.00 | 2.53 | 0.00 | 1.36 | 27.97 | 52.96 | 3.55 | 351.76 | 0.3829 | -655.0 | -614.5 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 29.56 | 52.85 | 3.43 | 352.64 | 0.4080 | -763.0 | -565.7 | |
| 0.00 | 5.15 | 0.00 | 2.76 | 27.77 | 52.69 | 3.27 | 352.32 | 0.3792 | -952.0 | -803.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 28.81 | 52.65 | 3.23 | 352.79 | 0.3957 | -789.0 | -642.1 | |
| 0.00 | 5.42 | 0.00 | 2.90 | 28.07 | 52.36 | 2.94 | 353.19 | 0.3832 | -748.0 | -696.2 | |
| 0.00 | 4.72 | 0.00 | 2.54 | 28.88 | 52.38 | 2.96 | 353.41 | 0.3962 | -908.0 | -738.3 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 29.24 | 51.87 | 2.46 | 354.62 | 0.4011 | -890.0 | -755.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 27.40 | 50.86 | 1.44 | 356.53 | 0.3702 | -666.0 | -490.9 | |
| 0.00 | 3.06 | 0.00 | 1.64 | 27.90 | 45.99 | -3.43 | 7.99 | 0.3816 | 867.0 | 627.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 27.86 | 44.97 | -4.44 | 10.33 | 0.3836 | 749.0 | 588.2 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 27.77 | 42.06 | -7.36 | 16.83 | 0.3931 | 802.0 | 656.4 | |
| 0.00 | 1.83 | 0.00 | 1.01 | 29.86 | 40.20 | -9.22 | 18.77 | 0.4334 | 807.0 | 653.6 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 25.56 | 39.82 | -9.59 | 23.91 | 0.3726 | 989.0 | 708.1 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 27.15 | 39.04 | -10.38 | 23.69 | 0.4006 | 826.0 | 644.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
