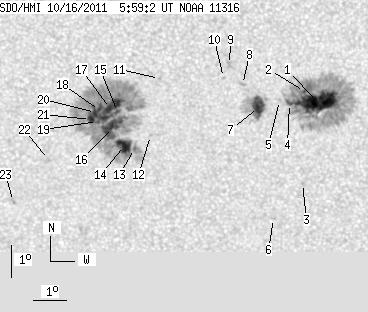

SDO HMI 2011-10-16 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.50 | 695.77 | 70.65 | 362.68 | -12.15 | 49.19 | -0.23 | 179.47 | 0.3138 | 75.3 | -76.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.96 | 272.40 | 24.96 | 141.78 | -11.74 | 52.71 | 3.29 | 190.57 | 0.3079 | 1356.4 | 400.3 | |
| 1.75 | -1.00 | 0.91 | -1.00 | -11.42 | 52.31 | 2.89 | 189.48 | 0.3015 | 1222.4 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -14.32 | 52.28 | 2.86 | 188.00 | 0.3490 | -984.0 | -820.6 | |
| 2.18 | -1.00 | 1.14 | -1.00 | -11.79 | 51.85 | 2.44 | 187.83 | 0.3066 | 944.8 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -11.70 | 51.55 | 2.13 | 186.90 | 0.3043 | 960.0 | 654.4 | |
| 0.00 | 1.92 | 0.00 | 1.02 | -15.44 | 51.39 | 1.98 | 185.24 | 0.3655 | 781.0 | 612.5 | |
| 17.47 | 40.10 | 9.09 | 20.86 | -11.92 | 50.91 | 1.49 | 184.77 | 0.3069 | 1095.4 | 492.5 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -11.19 | 50.41 | 1.00 | 183.34 | 0.2943 | 1062.0 | 701.9 | |
| 0.00 | 3.49 | 0.00 | 1.80 | -10.57 | 50.02 | 0.60 | 182.09 | 0.2835 | 818.0 | 728.4 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -10.97 | 49.83 | 0.42 | 181.42 | 0.2902 | 474.0 | 462.0 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -11.01 | 47.89 | -1.53 | 174.82 | 0.2918 | 759.0 | 617.0 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -12.80 | 47.60 | -1.82 | 174.47 | 0.3220 | -729.0 | -504.6 | |
| 1.66 | 365.80 | 0.87 | 190.90 | -13.21 | 47.11 | -2.31 | 173.13 | 0.3297 | -833.2 | -488.2 | |
| 13.19 | -13.00 | 6.92 | -13.00 | -13.12 | 46.80 | -2.62 | 172.19 | 0.3288 | -1108.4 | 999999 | |
| 1.92 | -13.00 | 1.00 | -13.00 | -12.05 | 46.60 | -2.82 | 171.08 | 0.3117 | -1099.2 | 999999 | |
| 24.55 | -13.00 | 12.83 | -13.00 | -12.55 | 46.44 | -2.98 | 170.85 | 0.3204 | -1063.7 | 999999 | |
| 17.39 | -13.00 | 9.06 | -13.00 | -11.95 | 46.38 | -3.03 | 170.37 | 0.3107 | -1393.8 | 999999 | |
| 0.35 | -13.00 | 0.18 | -13.00 | -12.02 | 46.05 | -3.37 | 169.36 | 0.3128 | -1404.8 | 999999 | |
| 0.96 | -13.00 | 0.50 | -13.00 | -12.36 | 45.98 | -3.44 | 169.36 | 0.3186 | -938.5 | 999999 | |
| 2.71 | -13.00 | 1.41 | -13.00 | -12.08 | 45.92 | -3.49 | 169.02 | 0.3142 | -1175.4 | 999999 | |
| 3.41 | -13.00 | 1.78 | -13.00 | -12.30 | 45.77 | -3.65 | 168.68 | 0.3183 | -1050.8 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.58 | 44.45 | -4.96 | 165.77 | 0.3436 | -756.0 | -637.1 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -14.92 | 43.33 | -6.08 | 163.85 | 0.3696 | -816.0 | -663.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
