SDO HMI 2011-10-16 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 245.07 | 887.97 | 122.06 | 442.56 | 10.72 | 51.25 | 1.83 | 328.97 | 0.1069 | -162.8 | -83.7 | |
|
previous
or next observation for the same group /

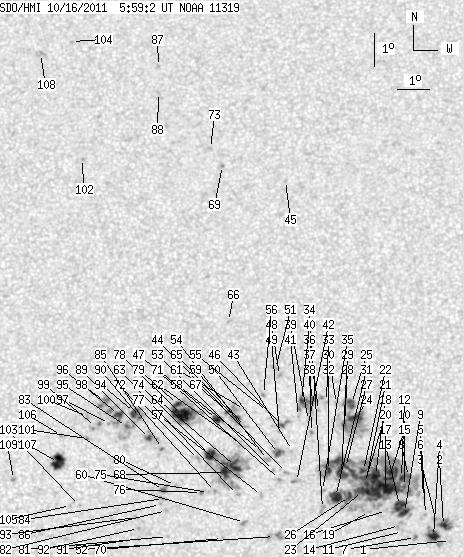

back to the solar disc SDO HMI 2011-10-16 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.31 | 8.14 | 56.06 | 6.65 | 289.84 | 0.1224 | -525.0 | -522.0 | |
| 2.53 | 11.62 | 1.26 | 5.80 | 8.59 | 55.86 | 6.44 | 293.90 | 0.1219 | -1187.9 | -881.8 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 8.81 | 55.62 | 6.20 | 296.32 | 0.1197 | -1013.0 | -862.0 | |
| 6.99 | 18.00 | 3.48 | 8.97 | 8.27 | 55.55 | 6.13 | 292.33 | 0.1148 | -1223.1 | -864.5 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 8.93 | 55.32 | 5.90 | 298.39 | 0.1160 | -936.0 | -816.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.44 | 55.26 | 5.85 | 302.39 | 0.1196 | -741.0 | -589.7 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 8.24 | 55.00 | 5.59 | 294.00 | 0.1060 | -992.0 | -863.3 | |
| 0.70 | 334.78 | 0.35 | 166.72 | 10.07 | 54.82 | 5.40 | 308.87 | 0.1196 | -674.2 | -621.2 | |
| 5.07 | 25.34 | 2.52 | 12.62 | 8.99 | 54.68 | 5.26 | 301.69 | 0.1070 | -1159.7 | -765.9 | |
| 0.87 | -8.00 | 0.44 | -8.00 | 9.77 | 54.69 | 5.28 | 307.49 | 0.1147 | -868.0 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 8.43 | 54.61 | 5.19 | 297.20 | 0.1012 | -775.0 | -656.4 | |
| 2.27 | -8.00 | 1.13 | -8.00 | 10.04 | 54.60 | 5.19 | 309.80 | 0.1164 | -900.1 | 999999 | |
| 8.56 | -9.00 | 4.27 | -9.00 | 9.20 | 54.53 | 5.11 | 304.10 | 0.1068 | -1243.4 | 999999 | |
| 0.00 | 3.32 | 0.00 | 1.65 | 8.61 | 54.52 | 5.11 | 299.19 | 0.1013 | -594.0 | -814.2 | |
| 13.80 | -8.00 | 6.88 | -8.00 | 10.17 | 54.27 | 4.86 | 312.48 | 0.1135 | -1059.6 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 9.06 | 54.13 | 4.72 | 305.05 | 0.0997 | -826.0 | -663.8 | |
| 29.79 | -8.00 | 14.84 | -8.00 | 9.69 | 54.11 | 4.70 | 310.09 | 0.1060 | -1289.8 | 999999 | |
| 9.78 | -8.00 | 4.87 | -8.00 | 10.11 | 53.81 | 4.40 | 314.90 | 0.1071 | -1245.4 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 9.03 | 53.62 | 4.20 | 307.97 | 0.0922 | -836.0 | -699.1 | |
| 2.62 | -8.00 | 1.31 | -8.00 | 10.08 | 53.54 | 4.12 | 316.54 | 0.1034 | -1195.7 | 999999 | |
| 2.27 | -8.00 | 1.13 | -8.00 | 9.90 | 53.51 | 4.09 | 315.53 | 0.1008 | -1277.4 | 999999 | |
| 3.06 | -8.00 | 1.52 | -8.00 | 10.26 | 53.45 | 4.03 | 318.35 | 0.1047 | -1137.6 | 999999 | |
| 8.65 | -8.00 | 4.30 | -8.00 | 9.63 | 53.41 | 4.00 | 314.23 | 0.0963 | -1292.7 | 999999 | |
| 10.31 | 66.57 | 5.15 | 33.22 | 11.82 | 53.26 | 3.84 | 328.00 | 0.1243 | 898.7 | 288.0 | |
| 4.37 | -24.00 | 2.18 | -24.00 | 12.28 | 53.11 | 3.69 | 330.82 | 0.1298 | 1094.7 | 999999 | |
| 3.41 | -8.00 | 1.69 | -8.00 | 9.49 | 53.02 | 3.60 | 316.07 | 0.0897 | -1233.2 | 999999 | |
| 11.71 | -8.00 | 5.83 | -8.00 | 10.36 | 52.90 | 3.49 | 323.00 | 0.0999 | -1046.3 | 999999 | |
| 2.10 | -24.00 | 1.05 | -24.00 | 11.65 | 52.89 | 3.47 | 329.78 | 0.1184 | 762.0 | 999999 | |
| 8.65 | -8.00 | 4.30 | -8.00 | 10.18 | 52.78 | 3.36 | 322.87 | 0.0961 | -1127.0 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 12.28 | 52.65 | 3.24 | 333.94 | 0.1261 | 948.0 | 760.7 | |
| 9.96 | -8.00 | 4.95 | -8.00 | 9.49 | 52.59 | 3.17 | 319.64 | 0.0848 | -1156.7 | 999999 | |
| 3.49 | -8.00 | 1.74 | -8.00 | 10.27 | 52.39 | 2.97 | 326.78 | 0.0935 | -975.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.34 | 52.35 | 2.93 | 336.31 | 0.1249 | 737.0 | 755.1 | |
| 0.00 | 3.41 | 0.00 | 1.69 | 9.13 | 52.19 | 2.78 | 320.49 | 0.0756 | -876.0 | -751.6 | |
| 0.00 | 2.10 | 0.00 | 1.04 | 9.67 | 52.20 | 2.78 | 324.63 | 0.0831 | -684.0 | -597.3 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 12.07 | 52.10 | 2.68 | 337.25 | 0.1189 | 783.0 | 517.4 | |
| 2.01 | 22.54 | 1.00 | 11.25 | 12.37 | 51.89 | 2.47 | 339.78 | 0.1224 | 1265.2 | 548.2 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 11.41 | 51.88 | 2.46 | 336.67 | 0.1068 | -935.0 | -675.1 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 11.77 | 51.79 | 2.37 | 338.68 | 0.1121 | -946.0 | -563.0 | |
| 2.01 | -37.00 | 1.00 | -37.00 | 12.37 | 51.58 | 2.16 | 342.12 | 0.1207 | 980.7 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 11.89 | 51.49 | 2.07 | 341.57 | 0.1123 | -1021.0 | -747.8 | |
| 0.00 | 3.84 | 0.00 | 1.91 | 9.94 | 51.41 | 2.00 | 334.57 | 0.0802 | 474.0 | 175.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 10.87 | 51.30 | 1.88 | 339.96 | 0.0944 | -919.0 | -795.8 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 10.21 | 51.11 | 1.69 | 339.26 | 0.0825 | -941.0 | -735.0 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 19.05 | 51.15 | 1.73 | 352.89 | 0.2319 | -793.0 | -653.5 | |
| 1.92 | 5.24 | 0.96 | 2.61 | 11.62 | 51.00 | 1.58 | 345.08 | 0.1053 | -1033.8 | -915.2 | |
| 0.00 | 1.66 | 0.00 | 0.82 | 10.00 | 50.90 | 1.48 | 340.83 | 0.0778 | -1086.0 | -804.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 13.13 | 50.91 | 1.50 | 348.71 | 0.1305 | -997.0 | -783.8 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 11.41 | 50.90 | 1.49 | 345.41 | 0.1014 | -908.0 | -718.2 | |
| 3.41 | 7.43 | 1.69 | 3.69 | 10.78 | 50.87 | 1.45 | 343.98 | 0.0906 | -1106.8 | -916.1 | |
| 0.00 | 2.62 | 0.00 | 1.31 | 13.34 | 50.79 | 1.37 | 349.90 | 0.1337 | -962.0 | -681.5 | |
| 0.00 | 8.12 | 0.00 | 4.03 | 8.30 | 50.74 | 1.32 | 332.28 | 0.0493 | -755.0 | -847.1 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 10.27 | 50.71 | 1.30 | 344.02 | 0.0814 | -823.0 | -627.0 | |
| 0.00 | 3.32 | 0.00 | 1.65 | 10.60 | 50.53 | 1.12 | 347.08 | 0.0861 | -23.0 | -41.3 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 12.05 | 50.54 | 1.12 | 349.99 | 0.1108 | 504.0 | 390.7 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 12.56 | 50.42 | 1.00 | 351.73 | 0.1193 | 990.0 | 801.8 | |
| 0.00 | 1.83 | 0.00 | 0.91 | 9.53 | 50.35 | 0.93 | 346.10 | 0.0671 | 853.0 | 728.8 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 10.87 | 50.32 | 0.91 | 350.03 | 0.0900 | 17.0 | -29.6 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 11.60 | 49.87 | 0.45 | 355.63 | 0.1016 | -794.0 | -528.5 | |
| 0.00 | 3.32 | 0.00 | 1.65 | 8.72 | 49.83 | 0.42 | 351.95 | 0.0515 | -986.0 | -726.8 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 12.11 | 49.84 | 0.42 | 356.26 | 0.1104 | 800.0 | 484.2 | |
| 0.00 | 2.71 | 0.00 | 1.35 | 11.09 | 49.71 | 0.30 | 356.83 | 0.0925 | -517.0 | -405.0 | |
| 0.00 | 2.18 | 0.00 | 1.08 | 9.56 | 49.62 | 0.20 | 356.91 | 0.0657 | -341.0 | -228.1 | |
| 7.25 | 102.48 | 3.60 | 50.93 | 10.40 | 49.56 | 0.14 | 358.22 | 0.0803 | 1243.5 | 391.5 | |
| 3.41 | 18.00 | 1.70 | 8.97 | 11.87 | 49.56 | 0.15 | 358.65 | 0.1060 | 738.6 | 320.8 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 14.76 | 49.35 | -0.07 | 0.43 | 0.1563 | 956.0 | 680.2 | |
| 1.31 | -65.00 | 0.65 | -65.00 | 12.05 | 49.32 | -0.10 | 0.89 | 0.1091 | 929.9 | 999999 | |
| 6.99 | -64.00 | 3.47 | -64.00 | 10.22 | 49.26 | -0.16 | 2.04 | 0.0772 | 1335.8 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 19.52 | 49.15 | -0.26 | 1.04 | 0.2380 | 932.0 | 762.7 | |
| 0.00 | 1.14 | 0.00 | 0.56 | 8.24 | 49.17 | -0.25 | 5.79 | 0.0428 | 779.0 | 574.5 | |
| 4.72 | 7.34 | 2.35 | 3.66 | 11.81 | 48.98 | -0.43 | 4.07 | 0.1052 | 1079.6 | 584.2 | |
| 0.00 | 1.66 | 0.00 | 0.82 | 9.65 | 48.95 | -0.46 | 6.78 | 0.0677 | -1022.0 | -711.7 | |
| 0.00 | 1.83 | 0.00 | 0.94 | 20.04 | 48.77 | -0.64 | 2.46 | 0.2471 | 841.0 | 684.1 | |
| 7.34 | -64.00 | 3.65 | -64.00 | 10.76 | 48.77 | -0.65 | 7.32 | 0.0873 | -1192.1 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 9.62 | 48.74 | -0.67 | 9.91 | 0.0677 | -881.0 | -704.4 | |
| 0.00 | 1.92 | 0.00 | 0.95 | 9.62 | 48.53 | -0.89 | 12.94 | 0.0684 | -931.0 | -819.3 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 10.60 | 48.44 | -0.98 | 11.37 | 0.0857 | -876.0 | -723.0 | |
| 18.08 | 55.74 | 9.01 | 27.78 | 11.95 | 47.91 | -1.50 | 13.49 | 0.1106 | 1316.8 | 437.0 | |
| 2.97 | -78.00 | 1.48 | -78.00 | 12.25 | 47.79 | -1.63 | 13.89 | 0.1162 | 864.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.56 | 9.82 | 47.74 | -1.68 | 22.36 | 0.0761 | 841.0 | 643.6 | |
| 0.00 | 1.14 | 0.00 | 0.56 | 8.30 | 47.51 | -1.91 | 37.21 | 0.0548 | -739.0 | -481.6 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 9.07 | 47.47 | -1.94 | 30.45 | 0.0664 | 920.0 | 704.2 | |
| 2.27 | 3.84 | 1.13 | 1.91 | 9.67 | 47.38 | -2.04 | 27.48 | 0.0763 | 1100.6 | 904.9 | |
| 0.00 | 2.88 | 0.00 | 1.43 | 9.43 | 47.38 | -2.04 | 29.01 | 0.0726 | 1125.0 | 876.1 | |
| 1.14 | 1.40 | 0.57 | 0.70 | 10.93 | 47.34 | -2.08 | 21.72 | 0.0966 | 993.8 | 1077.0 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 9.25 | 47.29 | -2.13 | 31.36 | 0.0707 | 975.0 | 802.9 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 22.58 | 47.08 | -2.34 | 7.44 | 0.2923 | 874.0 | 644.5 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 21.77 | 47.09 | -2.33 | 7.80 | 0.2788 | 844.0 | 665.7 | |
| 2.18 | 10.22 | 1.09 | 5.09 | 11.23 | 46.94 | -2.48 | 24.14 | 0.1041 | 1303.3 | 820.1 | |
| 1.14 | 31.54 | 0.57 | 15.73 | 11.86 | 46.66 | -2.76 | 24.04 | 0.1160 | 1063.3 | 859.6 | |
| 0.00 | 1.57 | 0.00 | 0.78 | 8.23 | 46.66 | -2.76 | 48.31 | 0.0640 | 734.0 | 639.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 8.53 | 46.63 | -2.79 | 45.30 | 0.0680 | 982.0 | 832.9 | |
| 0.00 | 1.57 | 0.00 | 0.78 | 8.86 | 46.57 | -2.85 | 42.66 | 0.0729 | 982.0 | 742.7 | |
| 6.03 | -90.00 | 3.01 | -90.00 | 12.01 | 46.48 | -2.94 | 24.91 | 0.1197 | 1027.0 | 999999 | |
| 1.49 | -90.00 | 0.74 | -90.00 | 11.59 | 46.24 | -3.18 | 28.34 | 0.1150 | 1224.5 | 999999 | |
| 5.07 | 17.21 | 2.53 | 8.59 | 11.95 | 45.99 | -3.43 | 28.67 | 0.1226 | 1075.0 | 801.2 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 11.67 | 45.71 | -3.70 | 31.70 | 0.1209 | 1008.0 | 819.5 | |
| 0.00 | 9.61 | 0.00 | 4.80 | 12.33 | 45.55 | -3.86 | 30.04 | 0.1321 | 855.0 | 808.9 | |
| 0.00 | 3.76 | 0.00 | 1.88 | 11.58 | 45.29 | -4.13 | 34.98 | 0.1236 | 270.0 | 912.3 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 11.88 | 45.04 | -4.38 | 35.17 | 0.1303 | 937.0 | 773.9 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 11.22 | 45.02 | -4.40 | 38.51 | 0.1214 | 949.0 | 693.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 19.71 | 44.71 | -4.71 | 17.82 | 0.2538 | 889.0 | 753.6 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 9.21 | 44.83 | -4.58 | 52.93 | 0.0993 | 901.0 | 655.6 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 23.34 | 44.23 | -5.19 | 15.40 | 0.3142 | 801.0 | 687.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.21 | 44.56 | -4.86 | 54.51 | 0.1031 | 908.0 | 739.5 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 11.30 | 44.25 | -5.16 | 42.56 | 0.1311 | 1010.0 | 842.3 | |
| 13.37 | 17.39 | 6.67 | 8.68 | 10.49 | 44.18 | -5.24 | 47.60 | 0.1222 | 1195.7 | 656.0 | |
| 0.00 | 5.24 | 0.00 | 2.73 | 22.96 | 43.23 | -6.19 | 18.57 | 0.3130 | 776.0 | 572.8 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 9.97 | 42.81 | -6.60 | 57.15 | 0.1355 | 1082.0 | 854.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
