SDO HMI 2011-10-16 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.29 | 684.63 | 59.89 | 368.39 | 27.23 | 56.48 | 8.15 | 341.07 | 0.3911 | -986.8 | -401.8 | |
|
previous
or next observation for the same group /

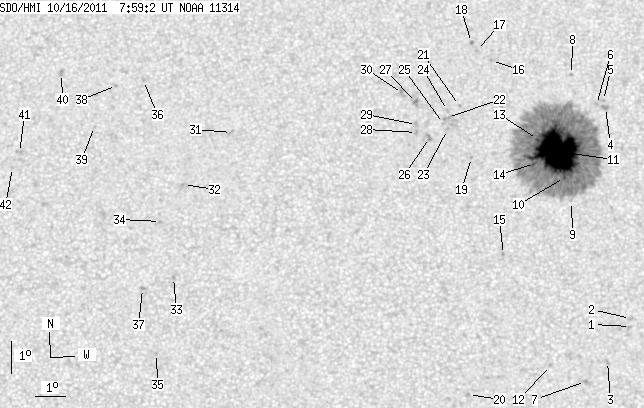

back to the solar disc SDO HMI 2011-10-16 07:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.73 | 21.72 | 59.03 | 10.70 | 327.99 | 0.3269 | -804.0 | -623.1 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 21.97 | 59.04 | 10.72 | 328.38 | 0.3305 | -655.0 | -509.3 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 20.65 | 58.20 | 9.88 | 328.08 | 0.3050 | -730.0 | -596.9 | |
| 0.00 | 3.49 | 0.00 | 1.91 | 28.68 | 58.80 | 10.48 | 337.77 | 0.4234 | 828.0 | 711.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 28.91 | 58.75 | 10.43 | 338.09 | 0.4264 | 831.0 | 687.6 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 28.78 | 58.50 | 10.17 | 338.44 | 0.4231 | 798.0 | 631.8 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 20.05 | 57.45 | 9.13 | 328.92 | 0.2900 | -1062.0 | -809.7 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 29.77 | 57.72 | 9.40 | 340.82 | 0.4333 | 861.0 | 614.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 25.68 | 57.37 | 9.05 | 337.44 | 0.3711 | -68.0 | -96.1 | |
| 1.31 | 618.66 | 0.70 | 333.09 | 26.45 | 57.20 | 8.87 | 338.67 | 0.3814 | -1171.3 | -430.6 | |
| 107.19 | -10.00 | 57.69 | -10.00 | 27.29 | 57.03 | 8.70 | 339.89 | 0.3929 | -1543.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 20.56 | 56.35 | 8.03 | 332.90 | 0.2885 | -807.0 | -613.2 | |
| 0.96 | -10.00 | 0.52 | -10.00 | 27.68 | 56.37 | 8.05 | 341.63 | 0.3953 | -1080.8 | 999999 | |
| 1.83 | -10.00 | 0.98 | -10.00 | 26.91 | 56.22 | 7.89 | 341.26 | 0.3829 | -1218.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 24.04 | 55.01 | 6.68 | 341.27 | 0.3326 | -975.0 | -749.6 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 30.27 | 54.98 | 6.65 | 346.44 | 0.4285 | -883.0 | -703.0 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 30.60 | 54.47 | 6.15 | 347.62 | 0.4319 | -729.0 | -569.4 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 30.87 | 54.32 | 5.99 | 348.07 | 0.4354 | -839.0 | -706.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 27.13 | 54.10 | 5.78 | 346.18 | 0.3767 | -857.0 | -689.5 | |
| 0.00 | 2.01 | 0.00 | 1.03 | 19.69 | 53.69 | 5.36 | 339.90 | 0.2573 | -980.0 | -737.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 28.81 | 53.78 | 5.46 | 347.98 | 0.4018 | -629.0 | -524.2 | |
| 0.00 | 2.88 | 0.00 | 1.55 | 28.43 | 53.35 | 5.03 | 348.68 | 0.3944 | -731.0 | -697.8 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 28.04 | 53.33 | 5.01 | 348.50 | 0.3882 | -832.0 | -727.4 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 28.65 | 53.36 | 5.04 | 348.78 | 0.3980 | -762.0 | -556.7 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 28.23 | 53.21 | 4.88 | 348.89 | 0.3909 | -1003.0 | -807.5 | |
| 0.00 | 3.32 | 0.00 | 1.78 | 27.78 | 52.71 | 4.39 | 349.76 | 0.3823 | -939.0 | -819.3 | |
| 0.00 | 3.67 | 0.00 | 1.98 | 28.92 | 52.31 | 3.99 | 351.19 | 0.3993 | -952.0 | -834.4 | |
| 0.00 | 2.01 | 0.00 | 1.08 | 27.95 | 52.28 | 3.95 | 350.83 | 0.3838 | -823.0 | -687.7 | |
| 0.00 | 2.27 | 0.00 | 1.22 | 28.21 | 52.29 | 3.96 | 350.92 | 0.3879 | -794.0 | -645.0 | |
| 0.00 | 3.49 | 0.00 | 1.89 | 29.22 | 51.84 | 3.52 | 352.32 | 0.4029 | -612.0 | -621.5 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 27.96 | 46.01 | -2.31 | 5.39 | 0.3805 | 772.0 | 695.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 26.28 | 44.45 | -3.88 | 9.82 | 0.3568 | 798.0 | 720.0 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 23.34 | 44.21 | -4.11 | 12.31 | 0.3100 | 886.0 | 622.3 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 25.10 | 43.72 | -4.60 | 12.38 | 0.3401 | 839.0 | 708.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 20.96 | 43.74 | -4.59 | 15.92 | 0.2736 | 769.0 | 565.4 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 29.63 | 42.94 | -5.38 | 11.39 | 0.4143 | 691.0 | 493.1 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 22.98 | 43.21 | -5.11 | 15.49 | 0.3083 | 799.0 | 625.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 29.45 | 42.02 | -6.30 | 13.38 | 0.4147 | 746.0 | 591.4 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 28.11 | 41.35 | -6.97 | 15.72 | 0.3968 | 682.0 | 543.2 | |
| 0.00 | 2.18 | 0.00 | 1.20 | 29.82 | 40.09 | -8.23 | 16.94 | 0.4283 | 783.0 | 668.7 | |
| 0.00 | 2.97 | 0.00 | 1.60 | 27.24 | 38.86 | -9.46 | 21.73 | 0.3966 | 585.0 | 608.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 26.76 | 38.66 | -9.66 | 22.65 | 0.3907 | 816.0 | 584.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
