group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11319	289.21	940.08	144.28	469.17	10.56	51.52	3.75	324.29	0.1196	-217.4	-103.2

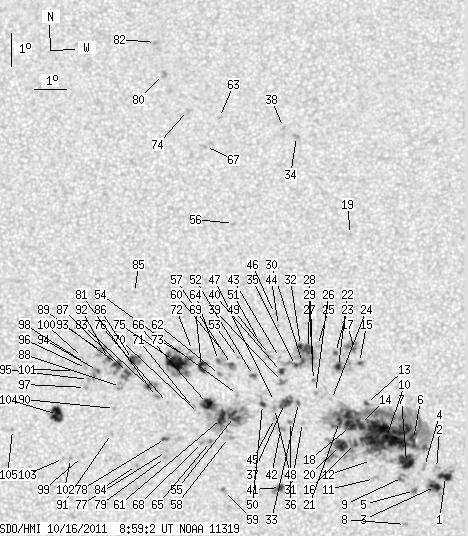

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-16 08:59:02 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	6.99	11.62	3.50	5.82	8.52	55.95	8.18	289.06	0.1495	-1051.0	-713.2
2	0.00	3.14	0.00	1.57	8.76	55.68	7.91	291.21	0.1466	-795.0	-680.5
3	5.07	15.46	2.54	7.74	8.23	55.64	7.87	287.76	0.1429	-1162.3	-879.1
4	0.00	2.71	0.00	1.35	8.83	55.32	7.54	292.53	0.1411	-1005.0	-839.0
5	0.00	3.32	0.00	1.66	8.12	55.00	7.23	288.35	0.1318	-982.0	-810.5
6	7.69	418.83	3.85	209.20	9.64	55.00	7.23	298.70	0.1420	-893.1	-540.7
7	15.64	-6.00	7.81	-6.00	8.99	54.77	7.00	295.12	0.1335	-1191.7	999999
8	0.00	1.57	0.00	0.78	7.10	54.71	6.94	281.13	0.1227	-880.0	-741.1
9	0.00	6.55	0.00	3.27	8.51	54.64	6.87	292.12	0.1283	-633.0	-754.5
10	89.18	-6.00	44.55	-6.00	9.74	54.18	6.40	302.29	0.1306	-1238.3	999999
11	0.00	2.62	0.00	1.31	8.49	53.79	6.02	294.64	0.1146	-679.0	-644.8
12	0.00	1.66	0.00	0.83	9.03	53.71	5.93	299.15	0.1175	-856.0	-647.6
13	1.31	-6.00	0.65	-6.00	10.74	53.59	5.81	311.06	0.1326	609.3	999999
14	6.64	-6.00	3.31	-6.00	10.11	53.39	5.62	308.16	0.1231	-1161.0	999999
15	1.05	2.27	0.52	1.14	11.97	53.40	5.62	318.42	0.1451	814.5	794.0
16	2.27	-6.00	1.13	-6.00	9.54	53.23	5.46	305.06	0.1151	-1239.0	999999
17	1.31	10.31	0.66	5.16	12.36	53.25	5.48	320.92	0.1486	925.1	724.6
18	10.04	-6.00	5.01	-6.00	10.05	53.09	5.31	309.32	0.1184	-1226.8	999999
19	0.00	0.96	0.00	0.49	15.83	53.21	5.44	332.46	0.1980	-755.0	-610.3
20	11.36	-6.00	5.66	-6.00	9.49	52.77	5.00	307.00	0.1081	-1160.2	999999
21	2.71	-6.00	1.35	-6.00	10.20	52.75	4.98	312.14	0.1157	-1104.6	999999
22	3.58	11.09	1.79	5.55	11.85	52.75	4.98	321.30	0.1364	805.7	389.9
23	1.40	1.66	0.70	0.83	12.28	52.67	4.89	323.65	0.1413	972.9	897.3
24	0.00	0.52	0.00	0.26	10.87	52.52	4.75	317.53	0.1209	426.0	255.7
25	0.00	2.53	0.00	1.27	12.49	52.12	4.34	327.68	0.1390	826.0	704.3
26	0.00	1.83	0.00	0.91	11.08	52.04	4.26	321.73	0.1182	-876.0	-637.2
27	0.00	1.14	0.00	0.57	11.44	51.98	4.20	323.93	0.1226	-654.0	-490.2
28	1.57	51.45	0.79	25.70	12.10	51.96	4.18	327.06	0.1318	822.3	63.2
29	6.20	-28.00	3.10	-28.00	12.40	51.84	4.07	329.02	0.1352	1103.7	999999
30	2.10	-28.00	1.05	-28.00	11.98	51.65	3.88	328.53	0.1273	-768.3	999999
31	0.00	1.48	0.00	0.74	10.18	51.63	3.85	319.25	0.1018	-661.0	-535.6
32	2.18	-28.00	1.09	-28.00	12.49	51.60	3.82	330.89	0.1344	995.0	999999
33	1.66	2.88	0.83	1.44	10.78	51.51	3.74	323.70	0.1087	-904.4	-493.9
34	0.00	2.80	0.00	1.42	18.84	51.59	3.82	344.42	0.2356	-972.0	-760.9
35	1.48	-28.00	0.74	-28.00	11.89	51.44	3.66	329.60	0.1240	-1068.8	999999
36	0.00	1.83	0.00	0.91	10.22	51.26	3.49	322.23	0.0982	-891.0	-699.6
37	7.34	12.32	3.65	6.13	10.76	51.09	3.31	326.79	0.1041	-1124.9	-830.6
38	0.00	1.83	0.00	0.94	19.12	51.19	3.41	346.30	0.2384	-593.0	-559.7
39	0.00	5.24	0.00	2.61	11.42	51.03	3.26	330.42	0.1134	-1101.0	-802.7
40	2.88	-28.00	1.44	-28.00	11.72	51.01	3.23	331.90	0.1177	-987.4	999999
41	3.23	8.30	1.60	4.12	8.24	50.94	3.17	308.11	0.0698	-1024.8	-825.3
42	0.00	4.45	0.00	2.22	9.98	50.96	3.18	323.22	0.0917	-767.0	-705.5
43	0.00	0.79	0.00	0.39	12.14	50.95	3.17	333.93	0.1238	540.0	366.2
44	0.00	1.22	0.00	0.61	13.10	50.93	3.16	337.17	0.1388	-895.0	-661.1
45	0.00	1.40	0.00	0.70	10.31	50.78	3.00	326.83	0.0946	-841.0	-622.8
46	0.00	1.22	0.00	0.61	13.46	50.81	3.04	338.91	0.1439	-703.0	-631.9
47	0.00	1.05	0.00	0.52	10.82	50.78	3.01	329.57	0.1022	-617.0	-424.8
48	0.00	2.53	0.00	1.26	10.61	50.78	3.01	328.49	0.0991	-814.0	-500.1
49	0.00	5.59	0.00	2.79	12.23	50.64	2.87	336.44	0.1230	434.0	467.7
50	2.53	5.59	1.26	2.78	10.73	50.42	2.64	332.28	0.0978	-828.7	-498.4
51	0.00	1.92	0.00	0.96	12.62	50.34	2.57	339.83	0.1274	1044.0	752.5
52	1.83	3.67	0.91	1.83	11.60	50.15	2.37	338.16	0.1096	744.8	415.4
53	0.00	1.31	0.00	0.65	12.14	49.70	1.92	343.51	0.1159	912.0	668.0
54	0.00	2.01	0.00	1.00	11.03	49.66	1.88	340.56	0.0973	-881.0	-653.0
55	9.08	94.68	4.52	47.07	10.37	49.56	1.79	339.00	0.0860	1145.8	400.2
56	0.00	1.40	0.00	0.70	16.19	49.57	1.80	350.52	0.1839	773.0	606.1
57	1.05	13.36	0.52	6.66	11.93	49.48	1.70	344.78	0.1114	714.8	153.4
58	0.00	4.45	0.00	2.21	9.74	49.38	1.60	338.22	0.0746	586.0	406.7
59	0.00	2.80	0.00	1.39	8.16	49.22	1.44	328.88	0.0485	994.0	785.0
60	0.00	1.48	0.00	0.74	12.32	49.24	1.46	347.64	0.1170	722.0	632.8
61	9.00	-55.00	4.47	-55.00	10.31	49.17	1.39	343.14	0.0828	1253.4	999999
62	0.00	2.01	0.00	1.00	11.63	49.11	1.34	347.35	0.1048	777.0	570.2
63	0.00	1.92	0.00	0.98	19.43	49.16	1.39	354.46	0.2380	838.0	638.5
64	0.52	-57.00	0.26	-57.00	12.05	49.08	1.31	348.43	0.1119	518.7	999999
65	0.00	3.58	0.00	1.78	9.63	48.83	1.06	344.80	0.0696	-1095.0	-739.0
66	10.39	-55.00	5.17	-55.00	10.76	48.74	0.97	349.16	0.0887	-1037.5	999999
67	0.00	1.31	0.00	0.67	18.54	48.72	0.94	355.97	0.2222	938.0	733.5
68	0.00	2.71	0.00	1.34	9.60	48.59	0.81	348.09	0.0681	-1082.0	-757.9
69	6.20	10.04	3.09	5.00	11.88	48.56	0.79	352.76	0.1073	1019.9	647.6
70	0.00	0.87	0.00	0.43	10.46	48.47	0.69	351.69	0.0827	-779.0	-620.7
71	0.00	2.18	0.00	1.09	10.64	48.32	0.54	353.73	0.0855	-756.0	-641.8
72	0.00	2.36	0.00	1.18	12.36	48.29	0.51	355.61	0.1152	114.0	235.9
73	0.79	55.99	0.39	27.90	12.12	48.20	0.42	356.25	0.1109	620.2	539.1
74	0.00	1.57	0.00	0.80	19.65	48.15	0.38	358.52	0.2406	877.0	697.7
75	17.82	-73.00	8.88	-73.00	12.00	47.80	0.03	359.77	0.1085	1313.4	999999
76	0.00	1.48	0.00	0.74	10.80	47.53	-0.25	2.80	0.0877	755.0	550.7
77	0.00	1.14	0.00	0.56	9.33	47.50	-0.28	4.44	0.0621	902.0	651.2
78	2.01	2.71	1.00	1.34	9.72	47.47	-0.31	4.43	0.0689	979.7	992.9
79	0.00	1.66	0.00	0.82	9.15	47.47	-0.31	5.18	0.0590	1076.0	858.5
80	0.00	3.14	0.00	1.61	20.76	47.39	-0.39	1.41	0.2595	639.0	685.2
81	0.00	2.18	0.00	1.09	10.97	47.19	-0.58	6.32	0.0913	1080.0	940.3
82	0.00	2.01	0.00	1.04	21.75	47.13	-0.65	2.19	0.2764	849.0	684.0
83	2.62	8.21	1.30	4.09	11.27	46.95	-0.83	8.44	0.0970	1210.6	876.0
84	0.00	1.14	0.00	0.56	8.91	46.59	-1.18	20.60	0.0583	1031.0	810.8
85	0.00	0.96	0.00	0.48	14.10	46.51	-1.27	8.45	0.1468	706.0	513.8
86	5.07	13.54	2.53	6.75	12.08	46.46	-1.32	11.61	0.1124	1014.5	856.0
87	2.88	7.95	1.44	3.96	11.69	46.31	-1.47	13.73	0.1063	1134.3	914.2
88	0.00	5.33	0.00	2.65	11.27	46.09	-1.68	16.76	0.1002	573.0	791.6
89	6.20	9.61	3.09	4.79	11.93	46.00	-1.78	15.83	0.1117	1061.7	865.7
90	0.00	1.22	0.00	0.61	10.61	45.92	-1.86	20.78	0.0903	1019.0	783.6
91	0.00	1.83	0.00	0.91	9.86	45.83	-1.95	25.23	0.0789	930.0	663.8
92	1.75	4.54	0.87	2.26	12.11	45.72	-2.05	17.64	0.1161	993.2	949.3
93	0.00	9.17	0.00	4.58	12.32	45.51	-2.27	18.77	0.1207	878.0	794.6
94	1.31	6.29	0.65	3.13	11.75	45.39	-2.39	21.43	0.1121	1008.7	873.7
95	0.00	1.66	0.00	0.83	11.48	45.12	-2.66	24.62	0.1096	890.0	747.0
96	0.00	1.14	0.00	0.57	11.81	45.05	-2.72	23.90	0.1153	872.0	676.8
97	0.00	2.01	0.00	1.00	11.24	45.03	-2.75	26.33	0.1065	865.0	720.4
98	0.00	1.75	0.00	0.87	11.96	45.02	-2.75	23.62	0.1179	857.0	683.1
99	0.00	1.75	0.00	0.87	9.17	44.95	-2.82	39.45	0.0768	872.0	465.5
100	0.00	1.05	0.00	0.52	12.14	44.93	-2.85	23.70	0.1214	753.0	549.4
101	0.00	1.57	0.00	0.78	11.75	44.69	-3.09	26.92	0.1170	745.0	554.7
102	0.00	1.48	0.00	0.74	9.11	44.59	-3.18	43.40	0.0802	961.0	747.7
103	0.00	1.05	0.00	0.52	9.11	44.38	-3.40	45.25	0.0827	918.0	657.2
104	13.28	18.08	6.61	9.00	10.42	44.18	-3.59	37.28	0.1022	1149.8	602.6
105	0.00	1.05	0.00	0.52	9.96	42.82	-4.96	49.33	0.1127	991.0	757.9

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
