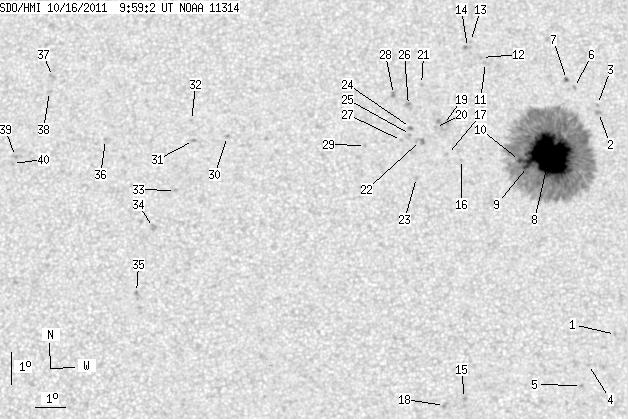

SDO HMI 2011-10-16 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.94 | 683.75 | 58.28 | 369.04 | 27.31 | 56.30 | 9.07 | 339.24 | 0.3975 | -959.2 | -394.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.73 | 21.60 | 58.67 | 11.44 | 326.09 | 0.3321 | -827.0 | -606.0 | |
| 0.00 | 2.53 | 0.00 | 1.39 | 28.65 | 58.77 | 11.54 | 335.77 | 0.4297 | 821.0 | 700.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 28.91 | 58.77 | 11.54 | 336.06 | 0.4333 | 718.0 | 612.4 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 20.69 | 57.72 | 10.49 | 326.64 | 0.3112 | -767.0 | -608.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 20.05 | 57.45 | 10.22 | 326.07 | 0.3000 | -999.0 | -764.1 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 29.47 | 58.03 | 10.80 | 337.98 | 0.4368 | 837.0 | 697.4 | |
| 0.96 | 1.83 | 0.53 | 1.01 | 29.74 | 57.78 | 10.55 | 338.69 | 0.4392 | 564.2 | 419.8 | |
| 104.28 | 614.67 | 56.29 | 331.91 | 27.29 | 56.95 | 9.72 | 337.80 | 0.3989 | -1460.0 | -422.0 | |
| 1.22 | -8.00 | 0.66 | -8.00 | 26.95 | 56.17 | 8.94 | 339.05 | 0.3893 | -1240.6 | 999999 | |
| 1.48 | -8.00 | 0.80 | -8.00 | 27.14 | 55.92 | 8.69 | 339.79 | 0.3908 | -950.2 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 30.34 | 55.00 | 7.77 | 344.34 | 0.4342 | -914.0 | -790.6 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 30.51 | 54.87 | 7.64 | 344.70 | 0.4361 | -725.0 | -497.7 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 31.04 | 54.53 | 7.30 | 345.71 | 0.4428 | -582.0 | -398.8 | |
| 0.00 | 2.53 | 0.00 | 1.40 | 30.84 | 54.41 | 7.18 | 345.80 | 0.4393 | -811.0 | -684.4 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 19.70 | 53.67 | 6.45 | 336.32 | 0.2643 | -897.0 | -758.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 27.20 | 53.95 | 6.72 | 344.10 | 0.3819 | -743.0 | -465.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 27.37 | 53.49 | 6.26 | 345.27 | 0.3825 | -703.0 | -570.1 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 19.49 | 53.03 | 5.80 | 338.13 | 0.2569 | -790.0 | -659.3 | |
| 0.00 | 8.03 | 0.00 | 4.33 | 28.33 | 53.41 | 6.18 | 346.14 | 0.3972 | -811.0 | -735.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 28.24 | 53.13 | 5.90 | 346.67 | 0.3947 | -921.0 | -698.8 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 29.64 | 52.73 | 5.50 | 348.37 | 0.4151 | -830.0 | -616.8 | |
| 0.00 | 4.63 | 0.00 | 2.48 | 27.83 | 52.60 | 5.37 | 347.57 | 0.3863 | -874.0 | -779.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 26.64 | 52.41 | 5.18 | 347.24 | 0.3669 | -888.0 | -695.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 28.25 | 52.28 | 5.05 | 348.53 | 0.3918 | -825.0 | -725.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 28.02 | 52.27 | 5.04 | 348.43 | 0.3882 | -779.0 | -649.5 | |
| 0.00 | 4.02 | 0.00 | 2.17 | 28.96 | 52.25 | 5.02 | 349.01 | 0.4029 | -970.0 | -790.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 27.83 | 51.95 | 4.73 | 349.02 | 0.3842 | -670.0 | -577.3 | |
| 0.00 | 2.36 | 0.00 | 1.28 | 29.32 | 51.75 | 4.52 | 350.25 | 0.4072 | -837.0 | -776.4 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 27.68 | 50.73 | 3.50 | 351.75 | 0.3785 | -850.0 | -647.3 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 27.98 | 46.07 | -1.16 | 2.71 | 0.3797 | 912.0 | 660.2 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 27.84 | 44.92 | -2.31 | 5.42 | 0.3789 | 805.0 | 602.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 28.49 | 44.84 | -2.39 | 5.43 | 0.3894 | 591.0 | 487.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 26.24 | 44.35 | -2.88 | 7.34 | 0.3539 | 883.0 | 688.2 | |
| 0.00 | 3.14 | 0.00 | 1.65 | 25.06 | 43.65 | -3.57 | 9.71 | 0.3365 | 760.0 | 694.1 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 23.01 | 43.16 | -4.07 | 12.44 | 0.3047 | 821.0 | 671.8 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 27.86 | 41.94 | -5.29 | 12.23 | 0.3865 | 718.0 | 568.6 | |
| 0.00 | 2.71 | 0.00 | 1.48 | 29.89 | 39.99 | -7.23 | 14.95 | 0.4251 | 755.0 | 566.7 | |
| 0.00 | 2.36 | 0.00 | 1.28 | 29.40 | 39.93 | -7.30 | 15.43 | 0.4179 | 607.0 | 484.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 27.28 | 38.92 | -8.31 | 19.28 | 0.3907 | 839.0 | 776.9 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 27.05 | 38.83 | -8.40 | 19.68 | 0.3878 | 973.0 | 728.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
