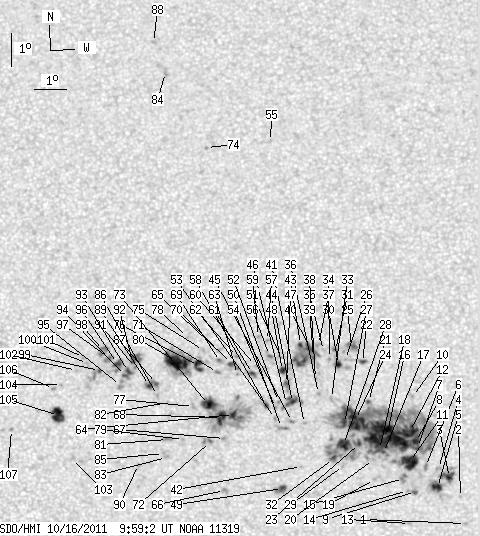

SDO HMI 2011-10-16 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 277.04 | 970.04 | 138.29 | 484.42 | 10.48 | 51.66 | 4.43 | 286.65 | 0.1246 | -173.1 | -115.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 09:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.61 | 7.09 | 56.50 | 9.27 | 278.56 | 0.1625 | 884.0 | 710.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 7.87 | 56.37 | 9.14 | 283.45 | 0.1625 | -603.0 | -489.2 | |
| 3.06 | 29.96 | 1.53 | 15.02 | 8.47 | 56.04 | 8.81 | 287.59 | 0.1597 | -1003.2 | -774.3 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 8.75 | 55.71 | 8.48 | 289.88 | 0.1558 | -692.0 | -664.2 | |
| 5.59 | -3.00 | 2.80 | -3.00 | 8.18 | 55.67 | 8.44 | 286.42 | 0.1522 | -1119.7 | 999999 | |
| 0.00 | 3.41 | 0.00 | 1.71 | 8.81 | 55.32 | 8.09 | 291.14 | 0.1498 | -1035.0 | -750.9 | |
| 1.66 | 448.12 | 0.83 | 224.10 | 9.39 | 55.09 | 7.86 | 295.27 | 0.1498 | -884.3 | -524.4 | |
| 3.58 | -7.00 | 1.79 | -7.00 | 9.57 | 55.03 | 7.80 | 296.53 | 0.1503 | -1031.1 | 999999 | |
| 0.00 | 3.06 | 0.00 | 1.53 | 8.07 | 55.00 | 7.77 | 286.93 | 0.1405 | -957.0 | -785.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 10.92 | 54.97 | 7.74 | 304.31 | 0.1609 | 822.0 | 628.6 | |
| 17.55 | -7.00 | 8.78 | -7.00 | 8.97 | 54.83 | 7.60 | 293.33 | 0.1430 | -1137.3 | 999999 | |
| 11.70 | -7.00 | 5.86 | -7.00 | 9.87 | 54.85 | 7.62 | 298.86 | 0.1499 | -1044.3 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 7.12 | 54.80 | 7.57 | 280.43 | 0.1335 | -871.0 | -662.0 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 8.10 | 54.75 | 7.53 | 287.65 | 0.1367 | -762.0 | -626.1 | |
| 0.00 | 4.80 | 0.00 | 2.40 | 8.46 | 54.64 | 7.41 | 290.43 | 0.1368 | -882.0 | -842.6 | |
| 66.99 | -7.00 | 33.50 | -7.00 | 9.73 | 54.15 | 6.92 | 300.32 | 0.1382 | -1290.3 | 999999 | |
| 1.14 | -7.00 | 0.57 | -7.00 | 9.25 | 54.05 | 6.82 | 297.53 | 0.1327 | -1027.6 | 999999 | |
| 3.41 | -7.00 | 1.70 | -7.00 | 9.34 | 53.92 | 6.70 | 298.56 | 0.1316 | -1061.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 8.45 | 53.76 | 6.53 | 292.68 | 0.1225 | -783.0 | -575.2 | |
| 0.00 | 1.57 | 0.00 | 0.78 | 9.04 | 53.74 | 6.51 | 297.16 | 0.1264 | -747.0 | -625.9 | |
| 1.57 | -7.00 | 0.79 | -7.00 | 10.78 | 53.62 | 6.39 | 308.72 | 0.1408 | 578.5 | 999999 | |
| 1.66 | 4.10 | 0.83 | 2.06 | 11.96 | 53.46 | 6.23 | 315.48 | 0.1522 | 773.7 | 602.2 | |
| 2.45 | -7.00 | 1.22 | -7.00 | 9.53 | 53.32 | 6.09 | 302.15 | 0.1242 | -1228.3 | 999999 | |
| 25.76 | -7.00 | 12.87 | -7.00 | 10.25 | 53.21 | 5.98 | 307.35 | 0.1296 | -1076.2 | 999999 | |
| 0.00 | 13.10 | 0.00 | 6.57 | 12.44 | 53.13 | 5.91 | 319.19 | 0.1544 | 1002.0 | 755.2 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 12.05 | 52.94 | 5.71 | 318.38 | 0.1472 | 803.0 | 701.3 | |
| 4.10 | -7.00 | 2.05 | -7.00 | 10.13 | 52.87 | 5.64 | 308.20 | 0.1238 | -1073.5 | 999999 | |
| 10.13 | -7.00 | 5.05 | -7.00 | 9.50 | 52.83 | 5.60 | 304.12 | 0.1169 | -1143.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 8.87 | 52.82 | 5.59 | 299.42 | 0.1111 | -723.0 | -506.7 | |
| 3.14 | 9.69 | 1.57 | 4.85 | 11.90 | 52.72 | 5.49 | 318.78 | 0.1428 | 851.3 | 348.0 | |
| 1.40 | 2.10 | 0.70 | 1.05 | 12.32 | 52.64 | 5.41 | 321.12 | 0.1475 | 981.6 | 924.8 | |
| 2.36 | -7.00 | 1.17 | -7.00 | 9.09 | 52.52 | 5.29 | 302.46 | 0.1085 | -928.3 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 10.88 | 52.49 | 5.26 | 314.74 | 0.1274 | 254.0 | 136.5 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 12.09 | 52.45 | 5.22 | 321.05 | 0.1422 | 899.0 | 761.0 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 12.33 | 52.27 | 5.04 | 323.07 | 0.1436 | 690.0 | 591.1 | |
| 0.00 | 1.57 | 0.00 | 0.78 | 11.04 | 52.09 | 4.87 | 317.80 | 0.1245 | -941.0 | -723.6 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 12.51 | 52.12 | 4.89 | 324.65 | 0.1446 | 875.0 | 753.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.49 | 52.01 | 4.78 | 320.66 | 0.1295 | -499.0 | -290.3 | |
| 0.96 | 52.23 | 0.48 | 26.10 | 12.12 | 51.96 | 4.73 | 323.90 | 0.1375 | 841.7 | -129.1 | |
| 5.68 | -39.00 | 2.84 | -39.00 | 12.39 | 51.87 | 4.64 | 325.55 | 0.1405 | 1076.0 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 10.14 | 51.65 | 4.43 | 315.09 | 0.1081 | -541.0 | -457.7 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 8.85 | 51.55 | 4.32 | 305.86 | 0.0922 | 827.0 | 606.2 | |
| 1.40 | -39.00 | 0.70 | -39.00 | 12.51 | 51.57 | 4.34 | 327.82 | 0.1393 | 951.5 | 999999 | |
| 2.01 | 13.97 | 1.00 | 6.97 | 10.77 | 51.30 | 4.07 | 321.34 | 0.1121 | -1262.3 | -924.2 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 10.20 | 51.29 | 4.06 | 317.93 | 0.1045 | -976.0 | -636.7 | |
| 0.52 | -44.00 | 0.26 | -44.00 | 10.74 | 51.11 | 3.89 | 322.45 | 0.1098 | -860.2 | 999999 | |
| 0.70 | 6.46 | 0.35 | 3.22 | 11.34 | 51.12 | 3.89 | 325.55 | 0.1182 | -1201.9 | -847.8 | |
| 3.58 | -39.00 | 1.79 | -39.00 | 11.74 | 51.00 | 3.78 | 328.15 | 0.1228 | -942.4 | 999999 | |
| 4.10 | 7.86 | 2.04 | 3.90 | 8.20 | 50.96 | 3.74 | 303.26 | 0.0775 | -1054.5 | -825.4 | |
| 0.00 | 5.59 | 0.00 | 2.78 | 10.03 | 50.95 | 3.72 | 319.20 | 0.0984 | -814.0 | -648.7 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 12.13 | 50.98 | 3.75 | 329.96 | 0.1284 | 266.0 | 212.8 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 10.81 | 50.87 | 3.64 | 324.55 | 0.1081 | -895.0 | -748.6 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 10.30 | 50.77 | 3.55 | 322.33 | 0.1000 | -676.0 | -522.4 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 10.63 | 50.78 | 3.55 | 324.26 | 0.1046 | -784.0 | -563.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 18.68 | 50.75 | 3.52 | 345.38 | 0.2318 | -726.0 | -599.3 | |
| 0.35 | 2.97 | 0.17 | 1.48 | 12.19 | 50.61 | 3.38 | 332.66 | 0.1263 | 745.2 | 627.1 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 12.64 | 50.56 | 3.33 | 334.62 | 0.1328 | 951.0 | 766.8 | |
| 2.27 | 5.50 | 1.13 | 2.74 | 10.69 | 50.50 | 3.28 | 326.73 | 0.1028 | -934.4 | -474.8 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 12.76 | 50.28 | 3.06 | 336.85 | 0.1328 | 918.0 | 710.9 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 11.89 | 50.18 | 2.95 | 334.65 | 0.1183 | 188.0 | 77.2 | |
| 2.01 | 3.76 | 1.00 | 1.87 | 11.65 | 50.09 | 2.86 | 334.47 | 0.1139 | 828.2 | 601.0 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 12.16 | 49.63 | 2.41 | 339.74 | 0.1190 | 967.0 | 721.4 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 11.62 | 49.63 | 2.40 | 338.04 | 0.1102 | 830.0 | 577.0 | |
| 3.76 | 98.78 | 1.87 | 49.12 | 10.42 | 49.50 | 2.27 | 334.29 | 0.0902 | 1261.3 | 351.6 | |
| 2.36 | 6.38 | 1.18 | 3.18 | 11.95 | 49.45 | 2.22 | 340.57 | 0.1145 | 587.2 | -171.5 | |
| 0.00 | 3.32 | 0.00 | 1.65 | 8.15 | 49.21 | 1.98 | 320.30 | 0.0539 | 924.0 | 750.5 | |
| 0.00 | 1.92 | 0.00 | 0.95 | 9.71 | 49.22 | 1.99 | 333.39 | 0.0768 | 866.0 | 678.4 | |
| 8.47 | -64.00 | 4.21 | -64.00 | 10.34 | 49.13 | 1.90 | 337.60 | 0.0862 | 1245.5 | 999999 | |
| 0.00 | 3.14 | 0.00 | 1.57 | 12.02 | 49.11 | 1.88 | 343.49 | 0.1137 | 79.0 | 258.4 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 12.35 | 49.05 | 1.83 | 344.76 | 0.1190 | 785.0 | 526.1 | |
| 0.00 | 2.01 | 0.00 | 1.00 | 11.69 | 49.02 | 1.79 | 343.42 | 0.1077 | 817.0 | 523.3 | |
| 1.31 | 4.19 | 0.65 | 2.08 | 9.62 | 48.79 | 1.57 | 338.03 | 0.0724 | -855.9 | -761.1 | |
| 9.78 | -64.00 | 4.86 | -64.00 | 10.73 | 48.74 | 1.51 | 343.25 | 0.0903 | -998.9 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 18.50 | 48.73 | 1.50 | 353.55 | 0.2225 | 1004.0 | 775.7 | |
| 0.00 | 2.62 | 0.00 | 1.31 | 12.35 | 48.60 | 1.37 | 348.47 | 0.1171 | 741.0 | 358.3 | |
| 6.55 | 74.50 | 3.26 | 37.12 | 11.90 | 48.44 | 1.21 | 349.00 | 0.1089 | 958.5 | 480.0 | |
| 0.00 | 2.97 | 0.00 | 1.48 | 10.67 | 48.28 | 1.05 | 347.99 | 0.0874 | -800.0 | -558.6 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.74 | 48.11 | 0.88 | 352.95 | 0.1225 | 905.0 | 635.9 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 9.68 | 47.98 | 0.75 | 349.26 | 0.0694 | 833.0 | 704.0 | |
| 25.68 | -76.00 | 12.79 | -76.00 | 12.02 | 47.77 | 0.54 | 355.14 | 0.1094 | 1193.4 | 999999 | |
| 0.00 | 3.84 | 0.00 | 1.91 | 9.68 | 47.49 | 0.26 | 356.18 | 0.0683 | 1168.0 | 890.0 | |
| 0.00 | 1.57 | 0.00 | 0.78 | 10.79 | 47.49 | 0.26 | 357.02 | 0.0877 | 757.0 | 513.4 | |
| 0.00 | 2.01 | 0.00 | 1.00 | 9.14 | 47.46 | 0.23 | 356.08 | 0.0589 | 951.0 | 790.7 | |
| 0.00 | 3.84 | 0.00 | 1.97 | 20.81 | 47.44 | 0.21 | 359.23 | 0.2604 | 832.0 | 681.1 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 9.26 | 47.37 | 0.14 | 357.69 | 0.0609 | 958.0 | 786.8 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 11.00 | 47.19 | -0.04 | 0.43 | 0.0912 | 1182.0 | 824.5 | |
| 1.48 | 8.82 | 0.74 | 4.39 | 11.36 | 47.16 | -0.07 | 0.71 | 0.0975 | 847.2 | 906.3 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 21.74 | 47.06 | -0.17 | 0.58 | 0.2761 | 775.0 | 625.9 | |
| 2.62 | -87.00 | 1.30 | -87.00 | 11.30 | 46.94 | -0.28 | 2.89 | 0.0966 | 1212.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.56 | 8.93 | 46.61 | -0.61 | 10.93 | 0.0561 | 1045.0 | 826.5 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 11.84 | 46.52 | -0.71 | 6.58 | 0.1066 | 1102.0 | 959.1 | |
| 1.66 | 9.69 | 0.83 | 4.83 | 12.02 | 46.42 | -0.80 | 7.20 | 0.1099 | 1206.8 | 862.0 | |
| 2.45 | 7.16 | 1.22 | 3.57 | 11.72 | 46.30 | -0.92 | 8.70 | 0.1050 | 1132.0 | 931.7 | |
| 1.05 | -93.00 | 0.52 | -93.00 | 11.60 | 46.21 | -1.02 | 9.73 | 0.1032 | 1182.2 | 999999 | |
| 0.00 | 3.58 | 0.00 | 1.78 | 11.30 | 46.06 | -1.17 | 11.75 | 0.0985 | 978.0 | 869.5 | |
| 4.63 | 11.44 | 2.31 | 5.70 | 11.96 | 45.97 | -1.26 | 11.33 | 0.1101 | 1049.1 | 826.4 | |
| 0.44 | 4.45 | 0.22 | 2.22 | 12.11 | 45.72 | -1.51 | 13.14 | 0.1136 | 1040.8 | 933.5 | |
| 0.00 | 7.86 | 0.00 | 3.92 | 12.35 | 45.54 | -1.69 | 14.16 | 0.1184 | 788.0 | 797.3 | |
| 1.22 | 8.30 | 0.61 | 4.13 | 11.75 | 45.42 | -1.81 | 16.58 | 0.1088 | 942.4 | 817.0 | |
| 0.00 | 1.57 | 0.00 | 0.78 | 11.95 | 45.05 | -2.18 | 19.08 | 0.1143 | 973.0 | 711.4 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 12.13 | 44.93 | -2.30 | 19.54 | 0.1179 | 677.0 | 560.6 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 11.74 | 44.72 | -2.51 | 22.46 | 0.1129 | 830.0 | 623.6 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 9.10 | 44.62 | -2.61 | 37.83 | 0.0737 | 871.0 | 584.1 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.32 | 44.26 | -2.97 | 27.73 | 0.1096 | 787.0 | 646.6 | |
| 12.75 | 14.50 | 6.35 | 7.21 | 10.39 | 44.18 | -3.05 | 33.05 | 0.0963 | 1125.9 | 824.7 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 11.20 | 44.02 | -3.21 | 30.17 | 0.1098 | 902.0 | 731.4 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 9.96 | 42.76 | -4.47 | 46.43 | 0.1065 | 1031.0 | 777.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
