SDO HMI 2011-10-16 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.13 | 0.00 | 6.50 | 20.11 | 97.35 | 51.22 | 291.17 | 0.7863 | -7.2 | 84.7 | |
|
previous
or next observation for the same group /

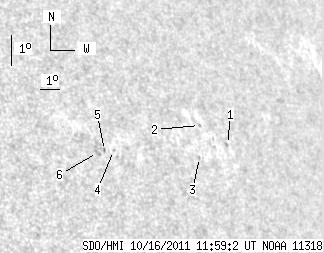

back to the solar disc SDO HMI 2011-10-16 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.99 | 19.90 | 101.42 | 55.29 | 290.23 | 0.8259 | -358.0 | -330.3 | |
| 0.00 | 0.96 | 0.00 | 0.82 | 20.60 | 100.23 | 54.10 | 291.24 | 0.8157 | -280.0 | -303.8 | |
| 0.00 | 1.14 | 0.00 | 0.95 | 19.63 | 99.74 | 53.61 | 290.13 | 0.8098 | -593.0 | -502.8 | |
| 0.00 | 0.96 | 0.00 | 0.74 | 20.17 | 95.57 | 49.44 | 291.54 | 0.7690 | 160.0 | 170.3 | |
| 0.00 | 1.22 | 0.00 | 0.94 | 20.20 | 95.14 | 49.01 | 291.67 | 0.7646 | 411.0 | 392.6 | |
| 0.00 | 2.71 | 0.00 | 2.06 | 20.16 | 94.79 | 48.66 | 291.70 | 0.7608 | 617.0 | 540.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
