SDO HMI 2011-10-16 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.96 | 8.83 | 1.81 | 15.89 | 24.48 | 331.04 | -75.09 | 66.15 | 0.9621 | -29.2 | -71.6 | |
|
previous
or next observation for the same group /

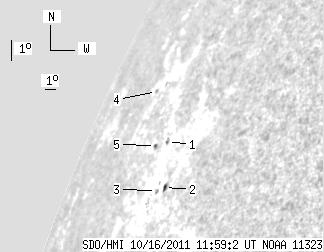

back to the solar disc SDO HMI 2011-10-16 11:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.01 | 0.00 | 3.53 | 24.82 | 331.49 | -74.64 | 65.79 | 0.9608 | -143.0 | -28.9 | |
| 0.00 | 2.71 | 0.00 | 4.35 | 23.48 | 333.22 | -72.91 | 67.16 | 0.9526 | -239.0 | -223.9 | |
| 0.00 | 1.14 | 0.00 | 1.89 | 23.32 | 332.54 | -73.59 | 67.34 | 0.9559 | -441.0 | -346.7 | |
| 0.00 | 1.40 | 0.00 | 3.18 | 26.07 | 327.31 | -78.82 | 64.53 | 0.9770 | 166.0 | 125.1 | |
| 0.96 | 1.57 | 1.81 | 2.94 | 24.58 | 330.34 | -75.79 | 66.06 | 0.9657 | 269.4 | 283.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
