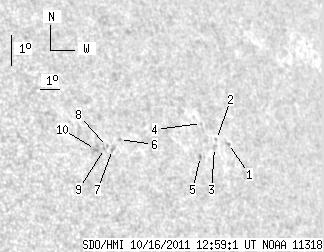

SDO HMI 2011-10-16 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.23 | 0.00 | 13.23 | 20.08 | 97.72 | 52.13 | 290.98 | 0.7953 | 42.6 | 49.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 1.31 | 19.89 | 101.43 | 55.84 | 290.13 | 0.8310 | -385.0 | -300.1 | |
| 0.00 | 0.87 | 0.00 | 0.76 | 20.06 | 100.84 | 55.26 | 290.42 | 0.8258 | -290.0 | -229.2 | |
| 0.00 | 2.44 | 0.00 | 2.12 | 19.83 | 100.61 | 55.02 | 290.17 | 0.8234 | -228.0 | -286.8 | |
| 0.00 | 0.87 | 0.00 | 0.75 | 20.61 | 100.29 | 54.71 | 291.16 | 0.8214 | -410.0 | -356.5 | |
| 0.00 | 1.75 | 0.00 | 1.48 | 19.62 | 99.73 | 54.14 | 290.04 | 0.8149 | -419.0 | -336.1 | |
| 0.00 | 0.79 | 0.00 | 0.62 | 20.44 | 95.89 | 50.31 | 291.72 | 0.7784 | 79.0 | 111.8 | |
| 0.00 | 1.92 | 0.00 | 1.49 | 20.17 | 95.42 | 49.83 | 291.46 | 0.7731 | 488.0 | 320.5 | |
| 0.00 | 1.05 | 0.00 | 0.81 | 20.28 | 95.22 | 49.63 | 291.64 | 0.7712 | 434.0 | 367.8 | |
| 0.00 | 1.13 | 0.00 | 0.88 | 20.23 | 95.05 | 49.46 | 291.61 | 0.7694 | 557.0 | 512.8 | |
| 0.00 | 3.93 | 0.00 | 3.01 | 20.23 | 94.61 | 49.02 | 291.71 | 0.7648 | 600.0 | 434.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
