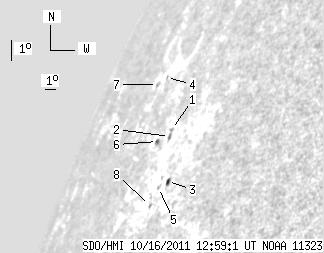

SDO HMI 2011-10-16 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 13.35 | 3.26 | 23.45 | 24.58 | 330.94 | -74.64 | 66.04 | 0.9602 | -54.4 | -15.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 2.84 | 25.02 | 331.38 | -74.20 | 65.58 | 0.9589 | 139.0 | 83.3 | |
| 0.00 | 2.71 | 0.00 | 4.61 | 24.80 | 331.50 | -74.08 | 65.80 | 0.9583 | -111.0 | 18.4 | |
| 1.48 | 2.88 | 2.31 | 4.49 | 23.50 | 333.24 | -72.35 | 67.12 | 0.9499 | -161.1 | -251.4 | |
| 0.00 | 0.96 | 0.00 | 2.01 | 26.42 | 327.97 | -77.61 | 64.18 | 0.9728 | 103.0 | 196.9 | |
| 0.00 | 0.87 | 0.00 | 1.41 | 23.25 | 332.59 | -72.99 | 67.41 | 0.9530 | -395.0 | -358.8 | |
| 0.52 | 1.48 | 0.95 | 2.69 | 24.54 | 330.44 | -75.15 | 66.10 | 0.9630 | 330.0 | 236.1 | |
| 0.00 | 1.48 | 0.00 | 3.28 | 26.11 | 327.22 | -78.36 | 64.49 | 0.9755 | 260.0 | 103.7 | |
| 0.00 | 1.31 | 0.00 | 2.12 | 22.65 | 332.42 | -73.17 | 68.04 | 0.9538 | -441.0 | -342.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
