SDO HMI 2011-10-16 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.89 | 660.61 | 59.73 | 358.67 | 27.21 | 56.23 | 11.19 | 334.92 | 0.4098 | -929.2 | -368.3 | |
|
previous
or next observation for the same group /

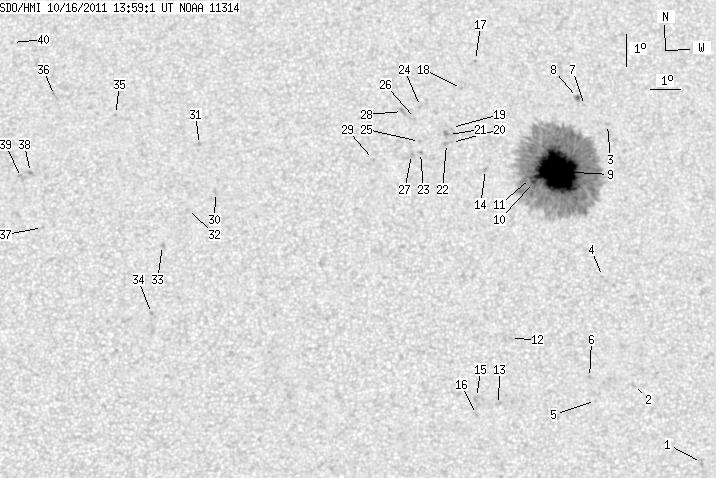

back to the solar disc SDO HMI 2011-10-16 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.44 | 0.00 | 1.29 | 18.10 | 60.75 | 15.71 | 310.12 | 0.3382 | -789.0 | -630.0 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 20.52 | 58.75 | 13.71 | 319.19 | 0.3412 | -619.0 | -412.5 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 28.78 | 58.79 | 13.76 | 332.07 | 0.4470 | 725.0 | 548.9 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 23.93 | 58.05 | 13.02 | 326.75 | 0.3771 | 749.0 | 551.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 20.08 | 57.47 | 12.43 | 320.96 | 0.3224 | -785.0 | -578.0 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 20.80 | 57.33 | 12.29 | 322.70 | 0.3299 | -664.0 | -580.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 29.41 | 58.07 | 13.04 | 334.02 | 0.4504 | 704.0 | 573.7 | |
| 1.31 | 2.88 | 0.73 | 1.60 | 29.68 | 57.86 | 12.82 | 334.67 | 0.4526 | 630.2 | 140.4 | |
| 106.05 | 594.64 | 57.63 | 323.28 | 27.30 | 56.88 | 11.84 | 333.68 | 0.4131 | -1421.5 | -398.7 | |
| 1.40 | -9.00 | 0.76 | -9.00 | 26.96 | 56.02 | 10.99 | 334.92 | 0.4025 | -1224.1 | 999999 | |
| 1.13 | -9.00 | 0.61 | -9.00 | 27.09 | 55.93 | 10.90 | 335.25 | 0.4037 | -1092.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 22.05 | 54.84 | 9.81 | 330.73 | 0.3243 | -738.0 | -610.3 | |
| 0.00 | 2.44 | 0.00 | 1.26 | 20.02 | 54.32 | 9.28 | 328.48 | 0.2913 | -505.0 | -538.1 | |
| 0.00 | 2.01 | 0.00 | 1.08 | 27.41 | 54.42 | 9.39 | 338.61 | 0.3988 | -871.0 | -724.5 | |
| 0.00 | 3.14 | 0.00 | 1.62 | 20.24 | 53.62 | 8.59 | 330.81 | 0.2886 | -648.0 | -581.9 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 19.72 | 53.59 | 8.56 | 329.92 | 0.2809 | -900.0 | -728.4 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 30.96 | 54.41 | 9.37 | 341.88 | 0.4508 | -766.0 | -570.5 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 30.05 | 53.83 | 8.79 | 342.19 | 0.4346 | -758.0 | -567.9 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 28.78 | 53.37 | 8.34 | 342.02 | 0.4135 | -435.0 | -420.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 28.29 | 53.34 | 8.30 | 341.68 | 0.4061 | -678.0 | -560.0 | |
| 0.00 | 5.32 | 0.00 | 2.89 | 28.55 | 53.25 | 8.22 | 342.07 | 0.4096 | -856.0 | -721.0 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 28.26 | 53.16 | 8.13 | 342.00 | 0.4048 | -988.0 | -703.8 | |
| 0.00 | 1.83 | 0.00 | 0.99 | 27.98 | 52.25 | 7.22 | 343.67 | 0.3962 | -781.0 | -625.3 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 29.48 | 52.36 | 7.32 | 344.59 | 0.4194 | -740.0 | -667.7 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 28.34 | 52.24 | 7.21 | 343.97 | 0.4016 | -742.0 | -560.0 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 29.09 | 52.16 | 7.12 | 344.71 | 0.4127 | -878.0 | -692.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 27.92 | 51.94 | 6.91 | 344.28 | 0.3939 | -781.0 | -757.4 | |
| 0.00 | 3.84 | 0.00 | 2.09 | 29.32 | 51.72 | 6.69 | 345.75 | 0.4145 | -834.0 | -689.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 27.77 | 50.64 | 5.61 | 347.02 | 0.3865 | -762.0 | -596.4 | |
| 0.00 | 2.36 | 0.00 | 1.25 | 26.74 | 45.30 | 0.26 | 359.35 | 0.3593 | 823.0 | 668.2 | |
| 0.00 | 1.83 | 0.00 | 0.98 | 28.29 | 44.76 | -0.28 | 0.64 | 0.3845 | 774.0 | 589.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 26.20 | 44.36 | -0.67 | 1.73 | 0.3506 | 754.0 | 650.1 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 25.05 | 43.54 | -1.49 | 4.08 | 0.3324 | 897.0 | 743.1 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 22.91 | 43.21 | -1.82 | 5.68 | 0.2974 | 852.0 | 675.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 29.25 | 41.88 | -3.16 | 6.88 | 0.4031 | 734.0 | 595.8 | |
| 0.00 | 2.88 | 0.00 | 1.57 | 29.86 | 39.75 | -5.28 | 11.07 | 0.4179 | 569.0 | 544.0 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 25.60 | 39.55 | -5.48 | 14.23 | 0.3518 | 715.0 | 505.1 | |
| 0.00 | 2.36 | 0.00 | 1.26 | 27.35 | 39.06 | -5.97 | 14.09 | 0.3812 | 900.0 | 724.4 | |
| 0.00 | 3.75 | 0.00 | 2.01 | 27.19 | 38.77 | -6.27 | 14.87 | 0.3799 | 772.0 | 664.7 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 31.59 | 38.17 | -6.86 | 13.14 | 0.4496 | 653.0 | 464.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
