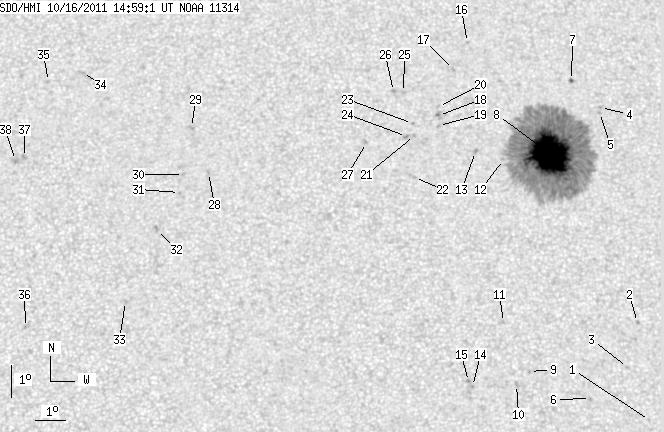

SDO HMI 2011-10-16 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.04 | 676.75 | 52.86 | 368.06 | 27.21 | 56.26 | 11.77 | 333.87 | 0.4136 | -952.6 | -380.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.50 | 18.88 | 59.32 | 14.84 | 313.50 | 0.3355 | -747.0 | -592.7 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 21.92 | 59.23 | 14.74 | 319.97 | 0.3686 | -656.0 | -569.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 20.53 | 58.76 | 14.27 | 318.13 | 0.3474 | -728.0 | -522.8 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 28.76 | 58.80 | 14.32 | 331.12 | 0.4509 | 768.0 | 619.7 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 28.60 | 58.75 | 14.26 | 331.02 | 0.4483 | 887.0 | 638.9 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 19.60 | 57.46 | 12.98 | 318.77 | 0.3224 | -898.0 | -747.0 | |
| 1.40 | 1.92 | 0.78 | 1.07 | 29.66 | 57.91 | 13.42 | 333.65 | 0.4564 | 553.6 | 589.8 | |
| 95.64 | 616.54 | 52.08 | 335.80 | 27.28 | 56.88 | 12.39 | 332.64 | 0.4168 | -1479.8 | -409.6 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 20.48 | 55.55 | 11.06 | 324.87 | 0.3138 | -785.0 | -560.9 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 20.08 | 55.10 | 10.61 | 325.18 | 0.3043 | -837.0 | -496.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 22.01 | 54.81 | 10.33 | 329.40 | 0.3279 | -817.0 | -694.4 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 27.15 | 55.25 | 10.77 | 335.57 | 0.4037 | -678.0 | -528.9 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 27.43 | 54.32 | 9.84 | 337.72 | 0.4018 | -1072.0 | -819.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 20.04 | 53.68 | 9.19 | 328.79 | 0.2908 | -902.0 | -782.0 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 20.20 | 53.56 | 9.07 | 329.40 | 0.2920 | -745.0 | -656.4 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 30.98 | 54.39 | 9.91 | 340.95 | 0.4537 | -771.0 | -482.1 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 30.10 | 53.81 | 9.32 | 341.25 | 0.4380 | -778.0 | -581.5 | |
| 0.00 | 3.84 | 0.00 | 2.09 | 28.61 | 53.15 | 8.67 | 341.21 | 0.4126 | -951.0 | -748.5 | |
| 0.00 | 1.75 | 0.00 | 0.95 | 28.28 | 53.13 | 8.64 | 340.97 | 0.4077 | -834.0 | -660.8 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 28.90 | 53.18 | 8.70 | 341.42 | 0.4171 | -563.0 | -374.4 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 27.97 | 52.28 | 7.80 | 342.43 | 0.3988 | -827.0 | -644.6 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 26.62 | 52.19 | 7.70 | 341.43 | 0.3779 | -825.0 | -634.9 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 28.36 | 52.24 | 7.76 | 342.84 | 0.4044 | -672.0 | -522.8 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 27.94 | 52.01 | 7.52 | 342.99 | 0.3970 | -874.0 | -659.2 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 29.37 | 52.01 | 7.52 | 344.11 | 0.4187 | -769.0 | -591.4 | |
| 0.00 | 1.75 | 0.00 | 0.95 | 29.41 | 51.66 | 7.18 | 344.82 | 0.4178 | -886.0 | -737.8 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 27.76 | 50.63 | 6.15 | 345.81 | 0.3884 | -864.0 | -738.7 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 26.83 | 45.28 | 0.80 | 358.02 | 0.3610 | 764.0 | 669.4 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 28.28 | 44.72 | 0.23 | 359.46 | 0.3844 | 711.0 | 525.9 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 26.77 | 44.45 | -0.04 | 0.09 | 0.3597 | 862.0 | 672.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 26.19 | 44.31 | -0.17 | 0.44 | 0.3503 | 796.0 | 668.4 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 25.02 | 43.56 | -0.93 | 2.55 | 0.3313 | 896.0 | 703.9 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 22.75 | 42.57 | -1.92 | 6.03 | 0.2949 | 787.0 | 642.1 | |
| 0.00 | 3.40 | 0.00 | 1.85 | 30.06 | 40.96 | -3.53 | 7.38 | 0.4166 | 673.0 | 507.3 | |
| 0.00 | 2.01 | 0.00 | 1.09 | 29.76 | 39.79 | -4.69 | 9.90 | 0.4146 | 587.0 | 457.9 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 21.92 | 39.35 | -5.13 | 16.59 | 0.2918 | 820.0 | 625.1 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 27.29 | 39.09 | -5.39 | 12.81 | 0.3781 | 972.0 | 813.2 | |
| 0.00 | 3.93 | 0.00 | 2.10 | 27.19 | 38.79 | -5.69 | 13.56 | 0.3776 | 947.0 | 582.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
