groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11319 309.29 1028.81 155.29 516.63 10.58 51.80 7.31 307.70 0.1601 -248.9 -56.0


previous   or   next   observation for the same group / back to the solar disc

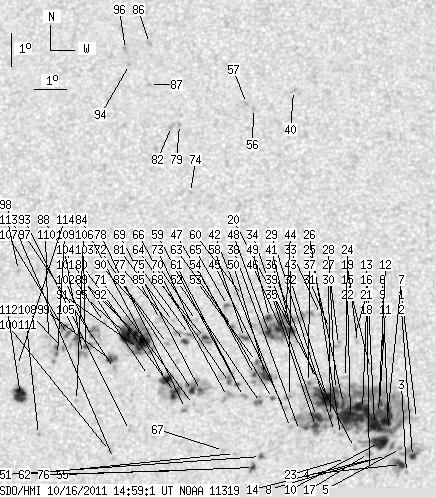

SDO HMI 2011-10-16 14:59:01 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.66 0.00 0.84 9.45 56.28 11.80 288.18 0.2132 -250.0 -263.8
2 3.14 18.41 1.59 9.32 8.32 56.12 11.63 283.10 0.2058 -922.3 -608.9
3 0.00 1.57 0.00 0.79 7.85 55.92 11.44 280.97 0.2010 -658.0 -486.7
4 5.24 16.41 2.65 8.29 8.09 55.74 11.26 282.33 0.1988 -1121.1 -730.8
5 0.00 1.66 0.00 0.84 8.57 55.76 11.27 284.67 0.2007 -938.0 -773.0
6 3.32 440.09 1.68 221.81 9.11 55.40 10.92 287.78 0.1973 -860.3 -515.9
7 16.67 -6.00 8.42 -6.00 9.53 55.39 10.90 289.83 0.1992 -1011.9 999999
8 0.00 1.48 0.00 0.75 8.37 55.32 10.84 284.16 0.1927 -917.0 -735.4
9 0.00 1.48 0.00 0.75 11.51 55.30 10.82 298.93 0.2111 638.0 368.2
10 16.41 -6.00 8.28 -6.00 8.76 55.12 10.63 286.41 0.1910 -1199.6 999999
11 3.32 -6.00 1.68 -6.00 9.93 55.15 10.67 292.10 0.1977 -931.7 999999
12 4.28 -6.00 2.16 -6.00 9.63 55.11 10.63 290.73 0.1953 -993.6 999999
13 18.33 -6.00 9.25 -6.00 9.30 54.98 10.49 289.34 0.1914 -1288.7 999999
14 0.00 1.13 0.00 0.57 8.28 54.95 10.47 284.17 0.1862 -971.0 -753.0
15 0.00 1.92 0.00 0.97 10.98 54.91 10.43 297.45 0.2011 299.0 319.4
16 0.00 1.05 0.00 0.53 7.96 54.79 10.30 282.62 0.1824 -697.0 -586.6
17 0.00 3.75 0.00 1.89 8.44 54.77 10.29 285.20 0.1839 -832.0 -832.9
18 15.10 -6.00 7.61 -6.00 9.79 54.62 10.14 292.38 0.1885 -1190.2 999999
19 0.00 1.22 0.00 0.62 11.77 54.54 10.05 301.77 0.2019 -947.0 -706.8
20 0.00 2.27 0.00 1.14 8.62 54.34 9.86 286.80 0.1777 -786.0 -682.8
21 0.00 1.13 0.00 0.57 11.95 54.45 9.97 302.76 0.2023 -582.0 -451.4
22 30.63 -6.00 15.42 -6.00 9.52 54.25 9.76 291.76 0.1809 -1359.9 999999
23 0.00 1.83 0.00 0.92 8.30 54.06 9.58 285.41 0.1716 -782.0 -651.3
24 0.00 2.79 0.00 1.41 10.72 54.13 9.65 298.02 0.1873 74.0 66.2
25 3.84 -6.00 1.93 -6.00 9.95 54.04 9.56 294.35 0.1804 -836.2 999999
26 0.00 1.83 0.00 0.92 9.02 53.93 9.44 289.66 0.1728 -892.0 -700.8
27 0.00 3.67 0.00 1.85 11.72 53.95 9.46 303.06 0.1930 -111.0 -482.9
28 1.48 -6.00 0.75 -6.00 10.37 53.81 9.33 297.03 0.1798 310.4 999999
29 0.00 1.13 0.00 0.57 9.11 53.74 9.26 290.51 0.1704 -725.0 -616.0
30 1.92 -6.00 0.97 -6.00 9.56 53.63 9.15 293.22 0.1714 -1307.2 999999
31 0.00 1.05 0.00 0.53 12.20 53.69 9.20 305.90 0.1938 733.0 548.7
32 34.47 -6.00 17.34 -6.00 10.10 53.56 9.07 296.28 0.1739 -1139.8 999999
33 0.00 1.40 0.00 0.70 12.63 53.42 8.94 308.46 0.1945 716.0 544.8
34 8.20 -6.00 4.12 -6.00 9.57 53.20 8.72 294.22 0.1647 -1240.8 999999
35 3.84 -6.00 1.93 -6.00 9.27 53.17 8.68 292.61 0.1621 -1230.3 999999
36 0.00 1.40 0.00 0.70 10.71 53.21 8.72 300.30 0.1734 -46.0 -41.9
37 0.79 -6.00 0.39 -6.00 10.59 52.99 8.50 300.32 0.1691 -586.7 999999
38 0.00 0.87 0.00 0.44 9.16 52.67 8.19 293.09 0.1536 -691.0 -458.8
39 0.00 1.83 0.00 0.92 11.83 52.68 8.20 307.30 0.1763 -1.0 -42.4
40 0.00 2.53 0.00 1.30 19.44 52.87 8.39 329.89 0.2754 -766.0 -593.0
41 4.28 82.12 2.15 41.31 12.16 52.51 8.03 309.40 0.1774 846.3 477.2
42 0.00 1.83 0.00 0.92 9.25 52.40 7.92 294.35 0.1499 -764.0 -645.2
43 0.00 4.80 0.00 2.41 10.18 52.39 7.91 299.84 0.1569 -986.0 -694.3
44 2.88 -41.00 1.45 -41.00 12.52 52.34 7.85 311.59 0.1791 967.9 999999
45 0.00 1.22 0.00 0.61 9.82 52.23 7.75 298.27 0.1515 -919.0 -766.3
46 7.94 -41.00 3.99 -41.00 12.25 52.17 7.69 311.00 0.1740 1157.3 999999
47 1.40 1.75 0.70 0.87 10.13 51.87 7.39 301.20 0.1487 -814.3 -863.8
48 6.28 -41.00 3.16 -41.00 12.08 51.83 7.35 311.48 0.1676 -1023.5 999999
49 3.23 -41.00 1.62 -41.00 12.56 51.84 7.36 313.56 0.1733 1143.1 999999
50 9.60 34.91 4.81 17.49 10.85 51.67 7.19 305.95 0.1526 -1197.1 -562.6
51 1.83 3.58 0.92 1.79 8.40 51.47 6.99 291.10 0.1296 842.6 482.0
52 1.40 6.20 0.70 3.10 10.01 51.50 7.02 301.79 0.1422 -954.1 -739.4
53 1.92 -50.00 0.96 -50.00 11.24 51.41 6.92 309.05 0.1530 -779.2 999999
54 1.48 -50.00 0.74 -50.00 10.85 51.34 6.85 307.26 0.1479 -934.6 999999
55 2.27 4.45 1.13 2.22 8.07 51.25 6.77 289.22 0.1241 -956.6 -844.3
56 0.00 1.13 0.00 0.58 18.90 51.57 7.08 332.88 0.2571 -861.0 -717.9
57 0.00 1.40 0.00 0.72 19.06 51.35 6.87 333.87 0.2578 -1009.0 -770.3
58 2.71 4.71 1.36 2.36 11.97 51.06 6.57 314.08 0.1566 -982.7 -594.7
59 0.00 2.97 0.00 1.48 10.20 50.99 6.50 304.88 0.1365 -337.0 -524.4
60 0.00 0.79 0.00 0.39 13.23 51.03 6.54 319.59 0.1719 -776.0 -598.2
61 1.48 13.61 0.74 6.81 10.56 50.81 6.33 307.77 0.1377 -816.1 -513.1
62 0.00 1.22 0.00 0.61 8.49 50.68 6.20 294.20 0.1176 -800.0 -575.0
63 1.48 2.01 0.74 1.01 12.30 50.70 6.21 317.20 0.1563 649.9 657.7
64 1.92 -61.00 0.96 -61.00 10.62 50.57 6.08 309.21 0.1351 -967.3 999999
65 0.00 3.67 0.00 1.84 12.93 50.56 6.07 320.50 0.1629 1087.0 843.0
66 0.00 8.12 0.00 4.05 10.20 50.50 6.01 306.99 0.1297 85.0 -106.6
67 0.00 1.66 0.00 0.83 8.59 50.35 5.86 296.12 0.1131 -337.0 -300.9
68 2.09 15.71 1.05 7.86 11.98 49.83 5.35 319.96 0.1423 980.8 555.9
69 1.31 85.09 0.65 42.42 10.39 49.68 5.19 312.22 0.1208 963.6 371.1
70 0.00 2.01 0.00 1.01 12.49 49.59 5.11 323.45 0.1467 743.0 458.7
71 0.00 0.96 0.00 0.48 9.97 49.46 4.97 310.72 0.1132 711.0 570.5
72 2.97 -69.00 1.48 -69.00 10.39 49.43 4.95 313.59 0.1177 1151.5 999999
73 0.00 1.05 0.00 0.52 12.34 49.47 4.98 323.50 0.1433 691.0 468.8
74 0.00 1.48 0.00 0.75 16.36 49.50 5.01 335.51 0.2031 947.0 686.4
75 0.52 7.59 0.26 3.80 12.07 49.37 4.89 322.86 0.1386 623.3 342.0
76 0.00 1.83 0.00 0.91 8.00 49.22 4.74 295.57 0.0911 931.0 679.6
77 2.88 3.75 1.44 1.88 11.86 49.25 4.76 322.63 0.1344 902.9 545.8
78 0.00 3.67 0.00 1.83 9.86 49.21 4.73 311.33 0.1087 637.0 730.9
79 0.00 1.66 0.00 0.84 18.44 49.21 4.72 340.41 0.2340 805.0 642.4
80 8.38 -69.00 4.18 -69.00 10.34 48.92 4.43 316.38 0.1107 1214.8 999999
81 0.00 1.31 0.00 0.65 12.47 48.89 4.40 327.30 0.1394 748.0 617.2
82 0.00 2.79 0.00 1.42 18.38 48.95 4.47 341.30 0.2317 981.0 724.8
83 0.00 1.92 0.00 0.96 11.81 48.69 4.21 325.70 0.1281 370.0 430.2
84 6.89 -69.00 3.44 -69.00 10.73 48.62 4.13 320.71 0.1123 -1084.7 999999
85 0.00 2.97 0.00 1.48 12.53 48.49 4.01 329.93 0.1368 714.0 409.5
86 0.00 2.62 0.00 1.35 20.94 48.32 3.84 346.57 0.2703 732.0 698.3
87 0.00 1.48 0.00 0.76 19.67 48.29 3.80 345.43 0.2494 848.0 638.4
88 0.00 1.57 0.00 0.78 10.85 48.10 3.62 325.05 0.1086 -697.0 -532.2
89 11.34 87.62 5.66 43.73 11.87 47.96 3.48 330.84 0.1224 1204.7 553.9
90 0.00 1.05 0.00 0.52 12.90 47.85 3.37 335.23 0.1373 847.0 620.3
91 1.22 -89.00 0.61 -89.00 11.66 47.81 3.32 331.08 0.1179 978.2 999999
92 5.06 -89.00 2.53 -89.00 12.02 47.72 3.23 333.14 0.1227 1292.5 999999
93 0.00 1.22 0.00 0.61 9.21 47.51 3.02 319.05 0.0798 1013.0 780.6
94 0.00 0.79 0.00 0.40 20.29 47.67 3.18 348.27 0.2573 851.0 695.9
95 15.62 -89.00 7.79 -89.00 12.09 47.44 2.96 335.35 0.1216 1284.8 999999
96 0.00 2.53 0.00 1.30 20.76 47.55 3.06 349.06 0.2645 742.0 690.0
97 0.00 2.36 0.00 1.17 11.07 47.07 2.58 334.39 0.1028 925.0 724.4
98 0.00 0.87 0.00 0.43 8.37 47.02 2.53 316.07 0.0633 869.0 699.7
99 3.67 8.20 1.83 4.09 11.34 46.92 2.43 336.77 0.1060 1182.6 941.3
100 0.00 1.57 0.00 0.78 8.61 46.90 2.41 319.97 0.0650 857.0 750.8
101 0.00 1.31 0.00 0.65 12.45 46.77 2.29 341.45 0.1232 772.0 556.4
102 1.31 11.78 0.65 5.88 12.03 46.37 1.89 343.52 0.1142 1063.7 831.5
103 1.57 7.16 0.78 3.57 11.73 46.19 1.70 344.32 0.1083 1182.5 923.3
104 0.00 5.59 0.00 2.78 11.52 46.10 1.61 344.61 0.1043 1039.0 892.1
105 4.19 10.47 2.09 5.22 12.00 45.95 1.46 347.05 0.1118 1014.2 890.5
106 0.00 1.22 0.00 0.61 10.11 45.91 1.42 342.10 0.0798 832.0 572.6
107 2.62 10.12 1.31 5.05 12.09 45.64 1.16 349.83 0.1123 1000.5 823.8
108 0.00 1.92 0.00 0.96 11.70 45.49 1.00 350.58 0.1051 1171.0 955.1
109 1.22 8.99 0.61 4.48 11.49 45.33 0.85 351.70 0.1011 924.5 842.3
110 0.00 4.45 0.00 2.22 11.97 45.06 0.58 354.79 0.1089 748.0 734.2
111 0.00 1.66 0.00 0.82 9.10 44.75 0.27 355.44 0.0583 1011.0 769.4
112 13.35 18.76 6.63 9.32 10.26 44.21 -0.28 3.48 0.0787 1153.8 681.2
113 0.00 1.13 0.00 0.57 14.02 44.14 -0.34 2.32 0.1441 840.0 683.7
114 0.00 0.87 0.00 0.43 11.16 44.11 -0.37 3.86 0.0945 716.0 552.7


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
