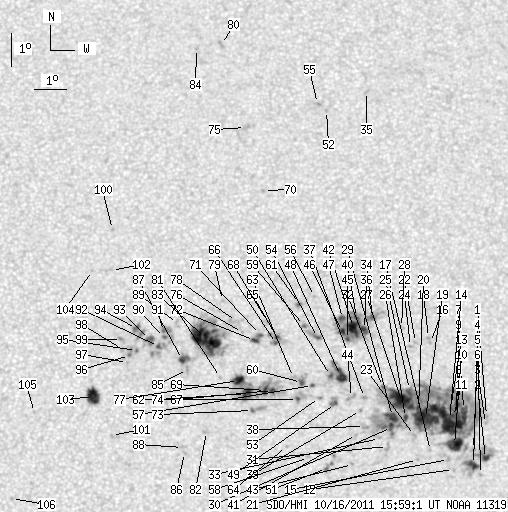

SDO HMI 2011-10-16 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 316.45 | 1012.11 | 159.02 | 508.78 | 10.56 | 51.72 | 7.78 | 305.20 | 0.1663 | -216.3 | -106.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.66 | 9.56 | 56.20 | 12.26 | 288.05 | 0.2213 | -147.0 | -218.4 | |
| 2.97 | 19.46 | 1.50 | 9.87 | 8.28 | 56.12 | 12.19 | 282.38 | 0.2149 | -958.1 | -560.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.32 | 56.16 | 12.22 | 287.06 | 0.2196 | -656.0 | -521.1 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 7.80 | 55.95 | 12.02 | 280.31 | 0.2107 | -678.0 | -569.2 | |
| 5.58 | 16.84 | 2.83 | 8.52 | 8.11 | 55.75 | 11.81 | 281.91 | 0.2081 | -1120.3 | -658.5 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 8.55 | 55.76 | 11.83 | 284.01 | 0.2099 | -875.0 | -775.4 | |
| 1.48 | 430.26 | 0.75 | 217.23 | 9.76 | 55.49 | 11.56 | 289.88 | 0.2110 | -823.2 | -543.3 | |
| 2.44 | -7.00 | 1.24 | -7.00 | 9.91 | 55.28 | 11.35 | 290.90 | 0.2084 | -945.5 | 999999 | |
| 2.62 | -7.00 | 1.32 | -7.00 | 9.61 | 55.27 | 11.34 | 289.54 | 0.2066 | -920.8 | 999999 | |
| 14.75 | -7.00 | 7.46 | -7.00 | 8.72 | 55.18 | 11.25 | 285.42 | 0.2009 | -1253.6 | 999999 | |
| 1.66 | -7.00 | 0.84 | -7.00 | 9.55 | 55.18 | 11.24 | 289.41 | 0.2048 | -962.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 7.97 | 55.13 | 11.19 | 281.79 | 0.1973 | -860.0 | -674.8 | |
| 1.48 | -7.00 | 0.75 | -7.00 | 9.80 | 55.09 | 11.16 | 290.67 | 0.2047 | -762.9 | 999999 | |
| 47.03 | -7.00 | 23.78 | -7.00 | 9.47 | 55.05 | 11.12 | 289.19 | 0.2023 | -1209.0 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 8.27 | 54.98 | 11.05 | 283.45 | 0.1959 | -901.0 | -747.9 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 11.78 | 54.55 | 10.61 | 300.53 | 0.2103 | -1001.0 | -725.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 8.55 | 54.44 | 10.50 | 285.51 | 0.1880 | -761.0 | -606.9 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 11.94 | 54.49 | 10.56 | 301.29 | 0.2107 | -852.0 | -597.6 | |
| 28.01 | -7.00 | 14.13 | -7.00 | 9.51 | 54.31 | 10.38 | 290.58 | 0.1907 | -1380.7 | 999999 | |
| 2.18 | -7.00 | 1.10 | -7.00 | 9.81 | 54.11 | 10.17 | 292.46 | 0.1892 | -1130.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 8.29 | 54.03 | 10.10 | 284.65 | 0.1802 | -830.0 | -631.2 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 11.79 | 54.08 | 10.15 | 301.65 | 0.2035 | -722.0 | -426.4 | |
| 0.00 | 1.92 | 0.00 | 0.97 | 9.01 | 53.96 | 10.03 | 288.60 | 0.1822 | -807.0 | -677.5 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 11.68 | 53.92 | 9.99 | 301.54 | 0.2002 | -1021.0 | -717.8 | |
| 1.57 | -7.00 | 0.79 | -7.00 | 10.39 | 53.85 | 9.91 | 295.79 | 0.1889 | 421.8 | 999999 | |
| 3.05 | -7.00 | 1.54 | -7.00 | 9.55 | 53.70 | 9.76 | 291.90 | 0.1811 | -1232.8 | 999999 | |
| 31.94 | -7.00 | 16.09 | -7.00 | 10.06 | 53.59 | 9.66 | 294.74 | 0.1827 | -1211.7 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.01 | 12.25 | 53.66 | 9.73 | 304.65 | 0.2017 | 762.0 | 471.0 | |
| 8.03 | -7.00 | 4.04 | -7.00 | 9.59 | 53.30 | 9.37 | 292.89 | 0.1750 | -1266.8 | 999999 | |
| 3.66 | -7.00 | 1.84 | -7.00 | 9.26 | 53.26 | 9.33 | 291.20 | 0.1723 | -1205.1 | 999999 | |
| 0.00 | 3.84 | 0.00 | 1.93 | 8.69 | 53.12 | 9.19 | 288.27 | 0.1670 | -717.0 | -721.9 | |
| 0.70 | -7.00 | 0.35 | -7.00 | 10.49 | 53.02 | 9.08 | 298.24 | 0.1770 | -741.6 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 8.94 | 52.88 | 8.95 | 290.12 | 0.1644 | -958.0 | -754.3 | |
| 1.66 | 85.08 | 0.84 | 42.86 | 12.57 | 52.78 | 8.84 | 308.50 | 0.1926 | 987.9 | 374.5 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 19.43 | 52.90 | 8.96 | 328.22 | 0.2802 | -810.0 | -670.2 | |
| 4.80 | -34.00 | 2.42 | -34.00 | 12.21 | 52.52 | 8.58 | 307.79 | 0.1854 | 829.2 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 10.17 | 52.46 | 8.52 | 298.03 | 0.1660 | -1155.0 | -873.4 | |
| 0.00 | 3.05 | 0.00 | 1.53 | 9.30 | 52.43 | 8.50 | 293.21 | 0.1595 | -775.0 | -732.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 9.78 | 52.32 | 8.39 | 296.24 | 0.1611 | -883.0 | -769.2 | |
| 1.83 | -34.00 | 0.92 | -34.00 | 12.57 | 52.28 | 8.35 | 310.11 | 0.1861 | 1086.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 9.07 | 52.18 | 8.25 | 292.39 | 0.1540 | -652.0 | -435.6 | |
| 11.17 | -34.00 | 5.63 | -34.00 | 12.27 | 52.18 | 8.25 | 309.16 | 0.1816 | 1200.5 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 8.17 | 52.04 | 8.11 | 287.02 | 0.1467 | 739.0 | 555.3 | |
| 0.00 | 4.10 | 0.00 | 2.06 | 10.17 | 52.06 | 8.12 | 299.17 | 0.1600 | -974.0 | -792.6 | |
| 1.48 | -34.00 | 0.75 | -34.00 | 11.92 | 51.98 | 8.05 | 308.22 | 0.1752 | -845.4 | 999999 | |
| 2.79 | -34.00 | 1.40 | -34.00 | 12.16 | 51.84 | 7.90 | 309.82 | 0.1758 | -996.2 | 999999 | |
| 3.14 | -34.00 | 1.58 | -34.00 | 12.55 | 51.85 | 7.91 | 311.48 | 0.1802 | 1038.6 | 999999 | |
| 9.51 | 24.87 | 4.77 | 12.48 | 10.84 | 51.74 | 7.80 | 303.75 | 0.1611 | -1203.6 | -722.0 | |
| 1.66 | 6.72 | 0.83 | 3.37 | 10.00 | 51.56 | 7.63 | 299.68 | 0.1512 | -935.1 | -716.1 | |
| 1.31 | -48.00 | 0.66 | -48.00 | 10.84 | 51.43 | 7.50 | 304.82 | 0.1568 | -1066.3 | 999999 | |
| 0.70 | 7.24 | 0.35 | 3.62 | 8.06 | 51.25 | 7.32 | 287.87 | 0.1331 | -812.0 | 32.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 18.86 | 51.59 | 7.66 | 330.98 | 0.2611 | -945.0 | -745.7 | |
| 0.00 | 2.01 | 0.00 | 1.00 | 10.19 | 51.08 | 7.14 | 302.39 | 0.1456 | -833.0 | -680.9 | |
| 1.31 | 8.64 | 0.66 | 4.34 | 11.99 | 51.06 | 7.13 | 311.91 | 0.1638 | -1108.7 | -381.2 | |
| 0.00 | 1.83 | 0.00 | 0.94 | 19.08 | 51.31 | 7.38 | 332.27 | 0.2620 | -807.0 | -742.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 13.22 | 51.00 | 7.07 | 317.40 | 0.1778 | -715.0 | -550.3 | |
| 1.22 | 1.92 | 0.61 | 0.96 | 10.55 | 50.87 | 6.94 | 305.24 | 0.1461 | -814.7 | -826.0 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 8.40 | 50.71 | 6.77 | 291.68 | 0.1262 | -753.0 | -467.7 | |
| 1.05 | 2.44 | 0.53 | 1.23 | 12.35 | 50.67 | 6.74 | 315.14 | 0.1632 | 724.8 | 673.6 | |
| 3.14 | 11.08 | 1.57 | 5.55 | 10.64 | 50.54 | 6.60 | 307.09 | 0.1424 | -969.1 | -544.2 | |
| 1.31 | 2.53 | 0.66 | 1.27 | 13.02 | 50.53 | 6.60 | 318.51 | 0.1698 | 892.8 | 847.4 | |
| 1.13 | 9.69 | 0.57 | 4.84 | 10.14 | 50.40 | 6.47 | 304.63 | 0.1355 | -685.7 | -67.2 | |
| 0.00 | 3.05 | 0.00 | 1.53 | 10.80 | 50.30 | 6.36 | 308.97 | 0.1407 | -116.0 | -167.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 8.73 | 50.04 | 6.11 | 296.35 | 0.1180 | 762.0 | 522.2 | |
| 1.83 | 14.66 | 0.92 | 7.34 | 12.00 | 49.83 | 5.90 | 317.30 | 0.1489 | 951.3 | 601.8 | |
| 1.57 | -65.00 | 0.79 | -65.00 | 11.82 | 49.80 | 5.86 | 316.61 | 0.1463 | 955.6 | 999999 | |
| 2.09 | 76.26 | 1.05 | 38.06 | 10.41 | 49.65 | 5.71 | 309.70 | 0.1279 | 916.8 | 349.5 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 12.49 | 49.54 | 5.60 | 320.89 | 0.1518 | 730.0 | 662.2 | |
| 3.49 | -67.00 | 1.74 | -67.00 | 10.42 | 49.43 | 5.50 | 310.77 | 0.1251 | 1148.2 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 16.44 | 49.51 | 5.58 | 333.32 | 0.2086 | 922.0 | 723.6 | |
| 1.48 | 7.50 | 0.74 | 3.75 | 12.10 | 49.31 | 5.38 | 320.32 | 0.1442 | 707.4 | 460.1 | |
| 2.88 | -71.00 | 1.44 | -71.00 | 11.92 | 49.13 | 5.19 | 320.49 | 0.1398 | 862.2 | 999999 | |
| 2.01 | 6.81 | 1.00 | 3.39 | 9.82 | 49.03 | 5.09 | 309.01 | 0.1131 | 887.1 | 614.9 | |
| 9.25 | -67.00 | 4.61 | -67.00 | 10.33 | 48.88 | 4.95 | 313.21 | 0.1170 | 1237.3 | 999999 | |
| 0.00 | 3.40 | 0.00 | 1.73 | 18.37 | 49.00 | 5.07 | 338.99 | 0.2350 | 713.0 | 629.7 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 12.16 | 48.76 | 4.83 | 323.58 | 0.1392 | 656.0 | 497.9 | |
| 6.28 | -67.00 | 3.13 | -67.00 | 10.72 | 48.62 | 4.68 | 317.17 | 0.1185 | -1091.1 | 999999 | |
| 0.00 | 5.58 | 0.00 | 2.79 | 12.49 | 48.58 | 4.65 | 325.98 | 0.1421 | -33.0 | 246.8 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 13.13 | 48.17 | 4.23 | 330.73 | 0.1477 | 760.0 | 536.1 | |
| 0.00 | 3.75 | 0.00 | 1.93 | 20.93 | 48.31 | 4.38 | 344.75 | 0.2724 | 711.0 | 638.5 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 10.82 | 48.07 | 4.13 | 321.20 | 0.1135 | -725.0 | -558.0 | |
| 0.00 | 2.70 | 0.00 | 1.35 | 9.20 | 47.62 | 3.69 | 313.33 | 0.0877 | 622.0 | 603.0 | |
| 46.07 | 97.81 | 23.00 | 48.85 | 11.99 | 47.63 | 3.69 | 329.83 | 0.1260 | 1172.8 | 450.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 20.81 | 47.51 | 3.58 | 347.34 | 0.2672 | 891.0 | 760.2 | |
| 0.00 | 2.88 | 0.00 | 1.43 | 11.06 | 47.07 | 3.13 | 329.83 | 0.1072 | 873.0 | 701.2 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 8.58 | 46.95 | 3.02 | 313.26 | 0.0718 | 963.0 | 748.5 | |
| 3.23 | 11.26 | 1.61 | 5.61 | 11.36 | 46.92 | 2.98 | 332.37 | 0.1105 | 1269.5 | 771.8 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 8.73 | 46.89 | 2.96 | 315.32 | 0.0729 | 872.0 | 695.9 | |
| 0.00 | 3.58 | 0.00 | 1.79 | 12.45 | 46.78 | 2.84 | 337.38 | 0.1265 | 522.0 | 574.6 | |
| 1.40 | 13.87 | 0.70 | 6.92 | 12.03 | 46.37 | 2.44 | 339.08 | 0.1172 | 1079.8 | 865.4 | |
| 0.96 | -90.00 | 0.48 | -90.00 | 12.21 | 46.34 | 2.41 | 339.85 | 0.1199 | 892.6 | 999999 | |
| 1.66 | 14.05 | 0.83 | 7.00 | 11.76 | 46.19 | 2.25 | 339.72 | 0.1116 | 1154.6 | 826.6 | |
| 4.01 | 9.77 | 2.00 | 4.87 | 11.97 | 45.91 | 1.98 | 342.59 | 0.1136 | 1082.7 | 909.7 | |
| 3.05 | 10.38 | 1.52 | 5.18 | 12.30 | 45.52 | 1.59 | 346.61 | 0.1173 | 886.0 | 850.4 | |
| 0.87 | 7.42 | 0.43 | 3.69 | 11.64 | 45.52 | 1.58 | 345.17 | 0.1062 | 1042.1 | 842.6 | |
| 1.13 | -95.00 | 0.56 | -95.00 | 11.49 | 45.30 | 1.37 | 346.77 | 0.1027 | 934.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.28 | 45.24 | 1.31 | 346.88 | 0.0989 | 867.0 | 650.0 | |
| 0.00 | 1.83 | 0.00 | 0.91 | 11.67 | 45.09 | 1.16 | 349.11 | 0.1050 | 771.0 | 531.1 | |
| 0.00 | 2.97 | 0.00 | 1.48 | 11.97 | 45.06 | 1.13 | 349.89 | 0.1101 | 1048.0 | 799.2 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 15.29 | 44.80 | 0.86 | 354.97 | 0.1666 | 840.0 | 637.6 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 9.09 | 44.75 | 0.81 | 346.38 | 0.0598 | 949.0 | 714.0 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 14.05 | 44.76 | 0.83 | 354.43 | 0.1452 | 635.0 | 615.1 | |
| 14.83 | 17.89 | 7.37 | 8.89 | 10.26 | 44.20 | 0.27 | 356.60 | 0.0787 | 1126.4 | 696.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 14.05 | 44.18 | 0.24 | 358.36 | 0.1446 | 858.0 | 657.2 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 9.78 | 42.42 | -1.52 | 20.50 | 0.0749 | 792.0 | 507.2 | |
| 0.00 | 1.40 | 0.00 | 0.69 | 7.21 | 41.73 | -2.20 | 56.70 | 0.0458 | -921.0 | -618.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
