SDO HMI 2011-10-16 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.74 | 14.06 | 2.77 | 21.70 | 24.13 | 331.29 | -72.09 | 66.44 | 0.9480 | -259.5 | -125.3 | |
|
previous
or next observation for the same group /

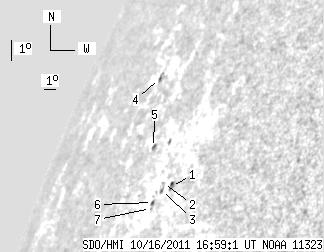

back to the solar disc SDO HMI 2011-10-16 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.23 | 0.00 | 4.52 | 23.43 | 333.52 | -69.86 | 67.10 | 0.9367 | -784.0 | -436.5 | |
| 0.00 | 1.22 | 0.00 | 1.77 | 23.46 | 332.71 | -70.67 | 67.11 | 0.9411 | -441.0 | -353.6 | |
| 0.00 | 2.27 | 0.00 | 3.27 | 23.24 | 332.78 | -70.60 | 67.34 | 0.9407 | -506.0 | -404.3 | |
| 0.52 | 2.62 | 0.98 | 4.89 | 26.42 | 327.61 | -75.77 | 64.15 | 0.9657 | 339.3 | 294.9 | |
| 0.00 | 2.27 | 0.00 | 3.67 | 24.40 | 330.34 | -73.04 | 66.19 | 0.9534 | 363.0 | 292.7 | |
| 1.22 | 2.01 | 1.79 | 2.94 | 22.81 | 332.40 | -70.98 | 67.81 | 0.9427 | -367.1 | -421.8 | |
| 0.00 | 0.44 | 0.00 | 0.64 | 22.62 | 332.43 | -70.95 | 68.01 | 0.9424 | -324.0 | -304.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
