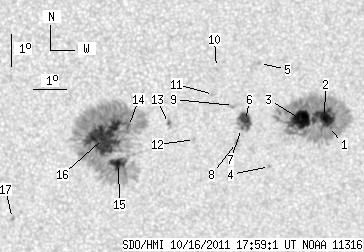

SDO HMI 2011-10-16 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.85 | 659.21 | 71.28 | 345.85 | -12.22 | 48.92 | 6.09 | 198.28 | 0.3306 | -45.2 | -106.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.70 | 232.94 | 0.37 | 122.99 | -12.07 | 53.30 | 10.47 | 210.23 | 0.3544 | 812.1 | 408.5 | |
| 24.17 | -1.00 | 12.77 | -1.00 | -11.78 | 53.16 | 10.33 | 210.33 | 0.3492 | 1176.0 | 999999 | |
| 25.65 | -1.00 | 13.52 | -1.00 | -11.83 | 52.42 | 9.59 | 208.43 | 0.3440 | 1332.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -13.30 | 51.51 | 8.68 | 204.28 | 0.3588 | -884.0 | -726.6 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -10.06 | 51.10 | 8.27 | 207.52 | 0.3080 | -833.0 | -510.4 | |
| 12.13 | 19.98 | 6.36 | 10.49 | -11.84 | 50.72 | 7.89 | 204.01 | 0.3317 | 1105.6 | 702.8 | |
| 1.13 | -6.00 | 0.60 | -6.00 | -12.09 | 50.61 | 7.78 | 203.39 | 0.3347 | 828.8 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.42 | -12.52 | 50.46 | 7.63 | 202.50 | 0.3405 | 810.0 | 669.1 | |
| 0.00 | 4.01 | 0.00 | 2.10 | -11.36 | 50.34 | 7.51 | 203.56 | 0.3220 | 690.0 | 686.7 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -10.17 | 49.79 | 6.96 | 203.52 | 0.3002 | 252.0 | 295.3 | |
| 0.00 | 1.48 | 0.00 | 0.77 | -11.01 | 49.72 | 6.89 | 202.22 | 0.3126 | 718.0 | 607.5 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -12.41 | 49.17 | 6.34 | 199.08 | 0.3312 | -911.0 | -709.8 | |
| 0.44 | 3.58 | 0.23 | 1.87 | -11.90 | 48.36 | 5.53 | 197.27 | 0.3190 | 899.6 | 447.3 | |
| 1.66 | 388.33 | 0.86 | 202.95 | -11.98 | 47.13 | 4.30 | 193.54 | 0.3149 | -936.4 | -439.2 | |
| 12.56 | -14.00 | 6.59 | -14.00 | -13.15 | 46.85 | 4.02 | 191.88 | 0.3327 | -1088.9 | 999999 | |
| 57.41 | -14.00 | 29.98 | -14.00 | -12.36 | 46.37 | 3.54 | 190.98 | 0.3183 | -1247.0 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.06 | -14.88 | 43.60 | 0.77 | 182.10 | 0.3546 | -927.0 | -736.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
