SDO HMI 2011-10-16 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.59 | 652.23 | 55.24 | 357.45 | 27.21 | 55.85 | 13.57 | 330.82 | 0.4285 | -900.0 | -378.1 | |
|
previous
or next observation for the same group /

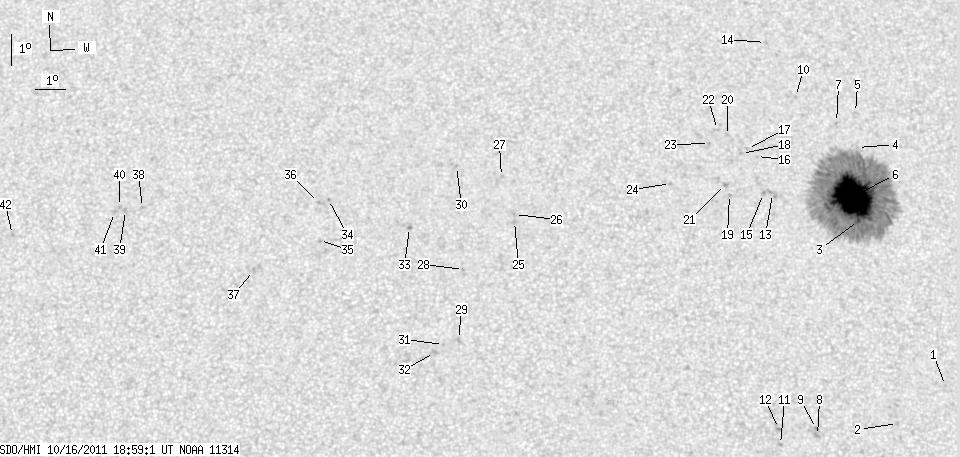

back to the solar disc SDO HMI 2011-10-16 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.47 | 21.30 | 59.15 | 16.88 | 315.12 | 0.3850 | -772.0 | -607.7 | |
| 0.00 | 1.66 | 0.00 | 0.88 | 20.17 | 57.43 | 15.16 | 315.73 | 0.3532 | -911.0 | -662.0 | |
| 1.31 | 588.89 | 0.72 | 323.43 | 26.56 | 56.85 | 14.58 | 327.81 | 0.4244 | -1318.5 | -419.7 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 28.91 | 57.15 | 14.87 | 330.42 | 0.4569 | 83.0 | 69.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 30.05 | 57.25 | 14.97 | 331.63 | 0.4725 | 459.0 | 301.8 | |
| 99.28 | -3.00 | 54.52 | -3.00 | 27.33 | 56.75 | 14.47 | 329.05 | 0.4335 | -1542.9 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 29.74 | 56.52 | 14.25 | 332.40 | 0.4632 | -631.0 | -505.9 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 19.86 | 54.79 | 12.51 | 320.32 | 0.3204 | -932.0 | -747.7 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 20.07 | 54.77 | 12.49 | 320.80 | 0.3229 | -835.0 | -716.6 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 30.62 | 55.19 | 12.91 | 335.52 | 0.4660 | -594.0 | -530.4 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 19.61 | 53.57 | 11.29 | 322.55 | 0.3047 | -954.0 | -729.1 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 20.10 | 53.54 | 11.26 | 323.65 | 0.3108 | -890.0 | -750.8 | |
| 0.00 | 5.06 | 0.00 | 2.75 | 27.49 | 54.00 | 11.73 | 334.12 | 0.4149 | -770.0 | -738.9 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 32.43 | 54.36 | 12.08 | 338.59 | 0.4859 | -691.0 | -561.1 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 27.49 | 53.70 | 11.42 | 334.71 | 0.4129 | -921.0 | -845.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 28.69 | 53.58 | 11.30 | 336.26 | 0.4290 | -765.0 | -588.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 28.96 | 53.30 | 11.02 | 337.06 | 0.4309 | -652.0 | -534.7 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 28.80 | 53.07 | 10.80 | 337.31 | 0.4273 | -898.0 | -750.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 27.48 | 52.53 | 10.25 | 336.96 | 0.4051 | -810.0 | -754.7 | |
| 0.00 | 1.83 | 0.00 | 1.01 | 29.39 | 52.65 | 10.37 | 338.68 | 0.4333 | -707.0 | -604.0 | |
| 0.00 | 2.70 | 0.00 | 1.47 | 27.80 | 52.42 | 10.14 | 337.52 | 0.4091 | -934.0 | -788.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 29.59 | 52.32 | 10.04 | 339.48 | 0.4344 | -693.0 | -579.2 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 29.14 | 52.00 | 9.72 | 339.66 | 0.4260 | -896.0 | -734.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 27.86 | 50.54 | 8.27 | 341.36 | 0.3995 | -903.0 | -686.5 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 26.69 | 45.22 | 2.94 | 352.69 | 0.3616 | 914.0 | 633.5 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 26.92 | 45.22 | 2.94 | 352.76 | 0.3652 | 780.0 | 676.0 | |
| 0.00 | 1.57 | 0.00 | 0.84 | 28.14 | 44.81 | 2.54 | 354.15 | 0.3842 | 673.0 | 439.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 25.17 | 43.49 | 1.22 | 356.69 | 0.3341 | 923.0 | 747.5 | |
| 0.00 | 2.01 | 0.00 | 1.04 | 22.97 | 43.31 | 1.03 | 356.78 | 0.2973 | 871.0 | 639.7 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 28.47 | 43.29 | 1.01 | 357.69 | 0.3877 | 703.0 | 551.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 22.81 | 42.82 | 0.55 | 358.28 | 0.2944 | 815.0 | 663.2 | |
| 0.00 | 3.05 | 0.00 | 1.58 | 22.56 | 42.53 | 0.25 | 359.19 | 0.2901 | 793.0 | 650.5 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 26.51 | 41.71 | -0.57 | 1.45 | 0.3556 | 1094.0 | 855.3 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 27.40 | 38.97 | -3.30 | 7.90 | 0.3737 | 809.0 | 684.9 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 26.08 | 38.71 | -3.56 | 9.14 | 0.3532 | 824.0 | 670.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 27.30 | 38.64 | -3.64 | 8.73 | 0.3729 | 873.0 | 688.3 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 25.11 | 36.56 | -5.72 | 15.23 | 0.3451 | 815.0 | 613.7 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 27.07 | 32.70 | -9.58 | 22.12 | 0.3950 | 833.0 | 673.6 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 26.97 | 32.13 | -10.14 | 23.40 | 0.3970 | 836.0 | 700.3 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 27.09 | 31.92 | -10.36 | 23.69 | 0.4002 | 798.0 | 671.8 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 26.90 | 31.76 | -10.51 | 24.22 | 0.3984 | 814.0 | 679.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 26.12 | 28.36 | -13.91 | 31.64 | 0.4133 | 796.0 | 636.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
